Inductive proximity sensor | 2,5mm | 7,5x7,7x23mm | 10-30VDC | NO | NPN | non-flush mount | IP67

Technical Specifications
Housing: square, PC

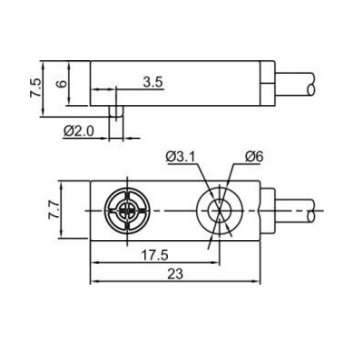

Dimensions: 7,5x7,7x23 mm

Supply voltage: 10–30 V DC

Output type: NPN, NO

Wires: 3/4-wire system

Mounting: non-flush

Sensing distance (Sn): 2.5 mm

Assured distance (Sa): 0…2 mm

Standard target: Fe 8×8×1 mm

Hysteresis: 1–20% Sr

Repeat accuracy: ≤3%

Switching frequency: up to 1000 Hz

Max. load current: ≤100 mA

Leakage current: ≤10 mA

Residual voltage: ≤2.5 V

Indication: red LED

Operating temperature: -25 °C…+70 °C

Humidity range: 35–95% RH

Vibration resistance: 10–50 Hz, 1.5 mm amplitude

Insulation resistance: ≥50 MΩ (500 VDC)

Dielectric strength: 1000 V AC, 60 s

Protection class: IP67

Connection type: 2 m PUR cable

Functions

Contactless detection of metal objects.

Integrated LED indicator for quick operation check.

Compact design for limited space applications.

IP67 protection for use in humid, dusty environments.

Applications

For home users: automation of small mechanisms, home workshops.

For engineers: industrial process control, automated production lines, robotics, equipment monitoring.

For electricians: reliable solution for control system installations, easy wiring and mounting, universal use in various projects.

Suitable for vehicles, packaging lines, metalworking machines, logistics systems.

Pros

Compact – fits in confined spaces.

Contactless operation – long service life, no mechanical wear.

IP67 – resistant to moisture and dust.

Integrated LED indicator.

Cons

Suitable only for metallic objects (does not detect non-metallic).
