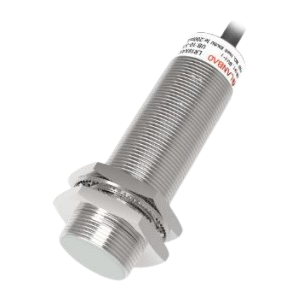

Inductive proximity sensor | 5mm | M18 | 10-30VDC | NO | NPN | flush mount | IP67

Technical Specifications

Housing: cylindrical, nickel-copper

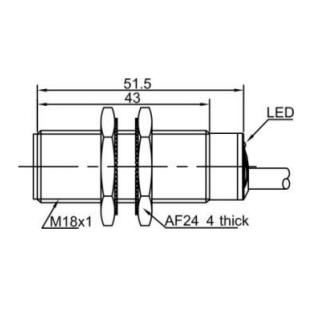

Dimensions: M18 x 51.5 mm
Supply voltage: 10–30 V DC
Output type: NPN, NO
Wiring: 3/4-wire system
Mounting: flush
Sensing distance (Sn): 5 mm
Assured distance (Sa): 0…4 mm
Standard target: Fe 18×18×1 mm
Hysteresis: 1–20 % Sr
Repeat accuracy: ≤3 %
Switching frequency: up to 1000 Hz
Max. load current: ≤200 mA
Residual voltage: ≤2.5 V
Current consumption: ≤15 mA
Indication: yellow LED
Operating temperature: -25 °C…+70 °C
Humidity range: 35–95 % RH
Vibration resistance: 10–50 Hz, 1.5 mm amplitude
Insulation resistance: ≥50 MΩ (500 VDC)
Protection class: IP67
Connection type: 2m PVC cable

Functions

Accurate detection of metallic objects.

High switching frequency (1000 Hz) – suitable for fast processes.

Integrated LED indicator for quick status check.

Compact design for use in limited space.

Durable housing ensures long service life.

IP67 protection for use in humid, dusty environments.

Applications

For home users: automation of small mechanisms, home workshops.

For engineers: industrial equipment, production lines, test benches, robotics systems.

For electricians: easy installation in systems, reliable solution for modernization or maintenance.

Other uses: CNC machines, packaging lines, conveyor control systems, alarms.

Pros

Compact – fits in confined spaces.

Robust housing resistant to mechanical stress.

IP67 – resistant to moisture and dust.

Fast response – up to 1000 Hz.

Integrated LED indicator.

Cons

Suitable only for metallic objects (does not detect non-metallic).
