Inductive proximity sensor | 8mm | 10x18x30mm | 10-30VDC | NC | PNP | non-flush mount | IP67

Technical Specifications
Housing: square, PBT

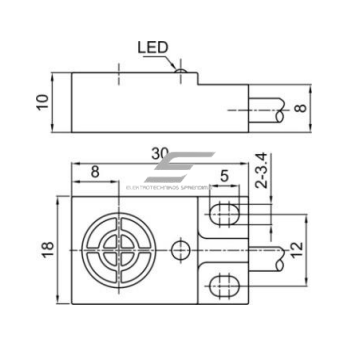

Dimensions: 10×18×30 mm
Supply voltage: 10–30 V DC
Output type: PNP, NC
Wiring: 3/4-wire system
Mounting: non-flush
Sensing distance (Sn): 8 mm
Assured distance (Sa): 0…6.4 mm
Standard target: Fe 24×24×1 mm
Hysteresis: 1–20 % Sr
Repeat accuracy: ≤3 %
Switching frequency: up to 800 Hz
Max. load current: ≤100 mA
Leakage current: ≤10 mA
Residual voltage: ≤2.5 V
Indication: yellow LED
Operating temperature: -25 °C…+70 °C
Humidity range: 35–95 % RH
Vibration resistance: 10–50 Hz, 1.5 mm amplitude
Insulation resistance: ≥50 MΩ (500 VDC)
Dielectric strength: 1000 V AC, 60 s
Protection class: IP67
Connection type: 2 m PVC cable

Functions

Contactless detection of metal objects.

Integrated LED indicator for quick operation check.

Compact design for limited space applications.

IP67 protection for use in humid, dusty environments.

Applications

For home users: automation of small mechanisms, home workshops.

For engineers: industrial process control, automated production lines, robotics, equipment monitoring.

For electricians: reliable solution for control system installations, easy wiring and mounting, universal use in various projects.

Suitable for vehicles, packaging lines, metalworking machines, logistics systems.

Pros

Compact – fits in confined spaces.

Contactless operation – long service life, no mechanical wear.

IP67 – resistant to moisture and dust.

Integrated LED indicator.

Cons

Suitable only for metallic objects (does not detect non-metallic).
