Inductive proximity sensor | 8mm | M18 | 10-30VDC | NO+NC | PNP | non-flush mount | IP67

Technical specifications

Housing: cylindrical, nickel-copper

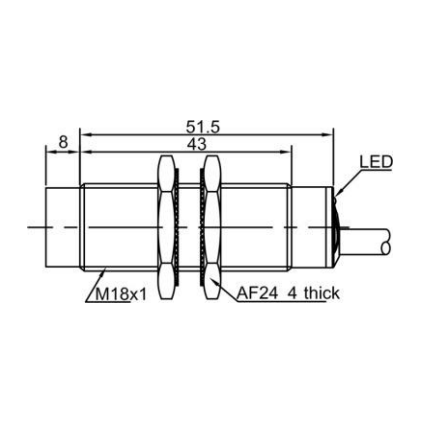

Dimensions: M18 × 59.5 mm
Supply voltage: 10–30 V DC
Output type: PNP, NO+NC
Wiring: 3/4-wire system
Mounting: non-flush
Sensing distance (Sn): 8 mm
Assured distance (Sa): 0…6.4 mm
Standard target: Fe 24×14×1 mm
Hysteresis: 1–20% Sr
Repeat accuracy: ≤3%
Switching frequency: up to 800 Hz
Max. load current: ≤200 mA
Residual voltage: ≤2.5 V
Current consumption: ≤15 mA
Indication: yellow LED
Operating temperature: -25 °C…+70 °C
Humidity range: 35–95% RH
Vibration resistance: 10–50 Hz, 1.5 mm amplitude
Insulation resistance: ≥50 MΩ (500 VDC)
Protection class: IP67
Connection type: 2 m PVC cable

Functions

Accurate detection of metallic objects.

Integrated LED indicator for quick operation check.

Compact design suitable for limited space.

Robust housing ensures durability.

IP67 protection for humid and dusty environments.

Applications

For home users: automation of small mechanisms, home workshops.

For engineers: design of industrial equipment, production lines, test benches, and robotics.

For electricians: easy installation, reliable solution for modernization or maintenance.

For others: CNC machines, packaging lines, conveyor control systems, alarms.

Pros

Compact – fits in tight spaces.

Robust housing resistant to mechanical impact.

IP67 – moisture and dust resistant.

Integrated LED indicator.

Cons

Suitable only for metallic objects (does not detect non-metallic).
