Inductive proximity sensor | 8mm | M18 | 10-30VDC | NO | PNP | non-flush mount | heat resistant +120°C | M12 | IP67

Technical Specifications

Housing: Cylindrical, nickel-copper

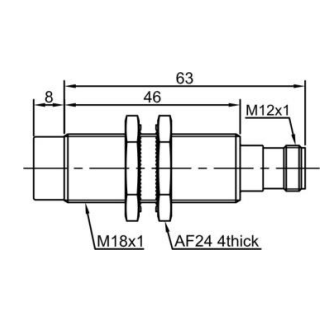

Dimensions: M18 x 71 mm
Supply voltage: 10–30 V DC
Output type: PNP, NO
Wiring: 3/4-wire system
Mounting: Non-flush
Sensing distance (Sn): 8 mm
Assured sensing distance (Sa): 0…6.4 mm
Standard target: Fe 24×24×1 mm
Hysteresis: 1–20% Sr
Repeat accuracy: ≤5%
Switching frequency: up to 800 Hz
Max. load current: ≤100 mA
Residual voltage: ≤2.5 V
Current consumption: ≤15 mA
Operating temperature: -25 °C…+120 °C
Humidity range: 35–95% RH
Vibration resistance: 10–50 Hz, 1.5 mm amplitude
Insulation resistance: ≥50 MΩ (500 VDC)
Protection class: IP67
Connection type: M12

Functions

Accurate detection of metallic objects.

Wide temperature range: reliable operation from -25°C to +120°C.

Integrated LED indicator for quick operation check.

Compact design suitable for limited spaces.

Durable housing ensures long service life.

IP67 protection allows use in humid, dusty environments.

Applications

Home users: for automating small mechanisms or workshop tools.

Engineers: for industrial equipment, production lines, test benches, or robotics.

Electricians: easy installation and reliable solution for upgrades or maintenance.

Others: CNC machines, packaging lines, conveyor control systems, alarms.

Pros

Compact – fits in tight spaces.

High-temperature resistant.

Durable, impact-resistant housing.

IP67 – resistant to moisture and dust.

Built-in LED indicator.

Cons

Suitable only for metallic objects (does not detect non-metallic).
