Industrial angled socket | 3P | 32A | 230V | 2P+PE | 6h | IP44 | IEK | PSN11-032-3 | 4606056177503

Socket – Industrial angled 3P 32A 230V 2P+PE IP44

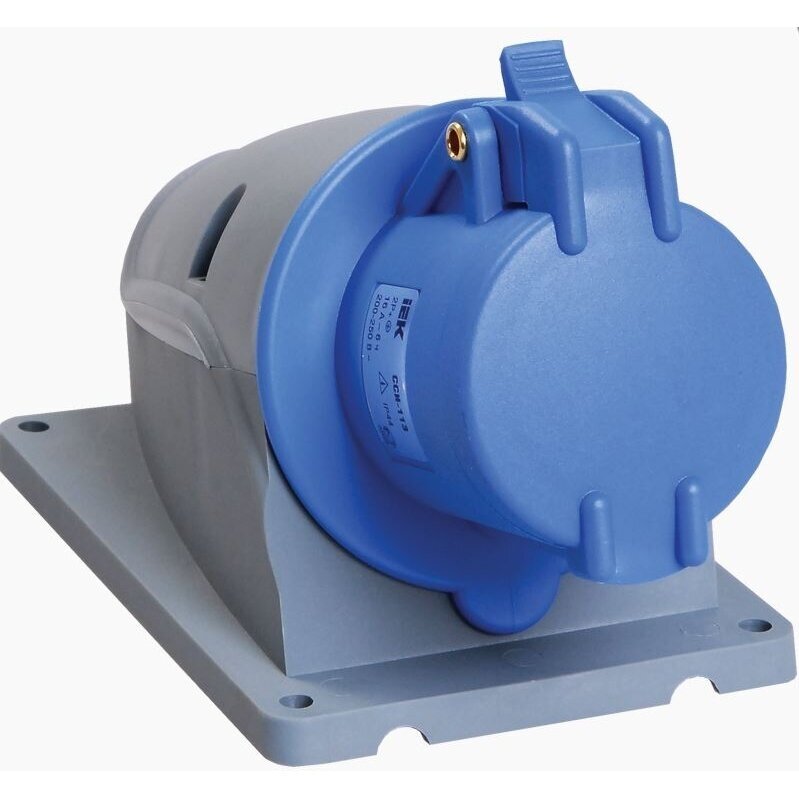

Industrial angled socket, designed for connecting 230 V electrical equipment in industrial, commercial, technical, or agricultural environments. This is a 3P / 2P+PE type, 32 A rated socket with an angled connection, mounted on a wall or other suitable surface. The IP44 protection class provides protection against solid particles and water splashes, making the socket suitable for use in technical rooms, workshops, warehouses, and other locations where a reliable industrial electrical connection is required.

• In workshops and service centers – for connecting 230 V equipment when a more robust industrial socket is needed.
• In warehouses and technical rooms – for installing stationary connection points.
• In agricultural buildings – for connecting equipment, pumps, fans, or other electrical loads if parameters are compatible.
• In industrial environments – when a 32 A 230 V industrial connection with earthing is needed.
• In temporary or technical installations – when convenient surface/wall socket mounting is required.

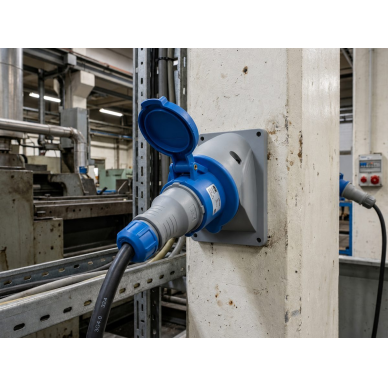

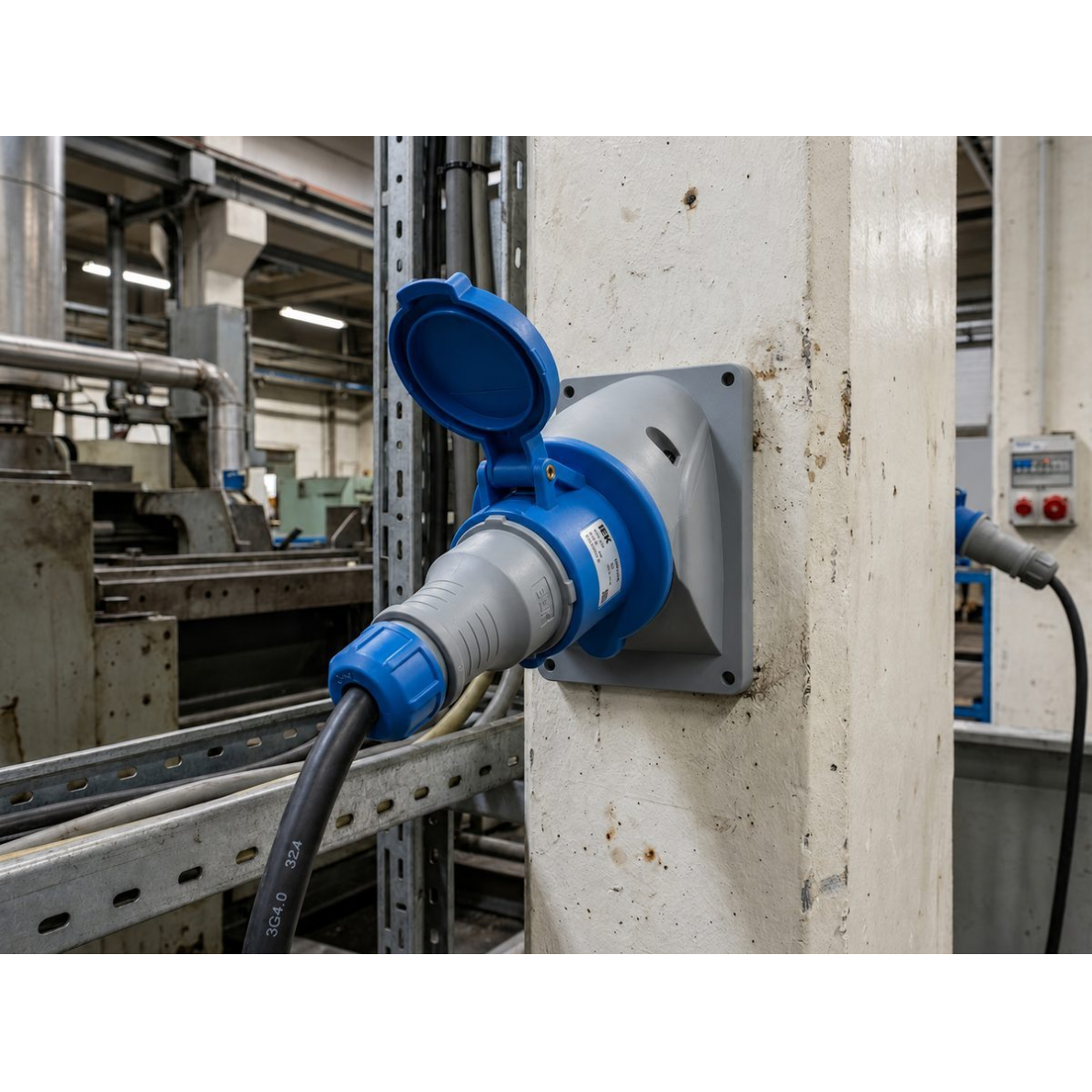

For example, the socket is mounted on the wall of a workshop, warehouse, or technical room. 230 V equipment with a compatible 32 A 2P+PE industrial plug is connected to it. The angled socket design allows the cable to run more conveniently along the wall and reduces the protrusion of the connection from the mounting location.

Such a solution is suitable where a household-type socket is not enough due to load, environmental conditions, or the need for mechanical durability.

The industrial socket is an electrical installation component; therefore, before installation, it is necessary to assess the load, cable cross-section, protection device, earthing, and the compatibility of the plug used.

• Installation must be performed by a qualified electrician in compliance with applicable electrical safety requirements.
• Use only with a compatible plug – 32 A, 230 V, 2P+PE, 6h type industrial connector.
• Before connecting, it is necessary to check if the electrical line and protection devices are adapted for 32 A current.
• IP44 protection does not mean the socket can be mounted in any outdoor conditions without additional protection.
• Do not exceed the rated current and voltage – this can cause overheating, damage to contacts, or fire risk.

Quick selection guide

IEK PSN11-032-3 – a suitable choice when a 230 V industrial angled socket with 32 A rated current, 2P+PE contact system, and IP44 protection class is needed. The socket is designed for mounting on a wall or other surface and for use with compatible industrial plugs.

Reliable 230 V industrial connection point

The IEK angled industrial socket allows for the installation of a tidy, convenient, and robust 32 A 230 V electrical connection point in a technical, commercial, or industrial environment.

Used with a compatible 2P+PE industrial plug, this socket becomes a practical solution for workshops, warehouses, agricultural buildings, and technical rooms where a more reliable electrical connection is needed than a standard household socket.
