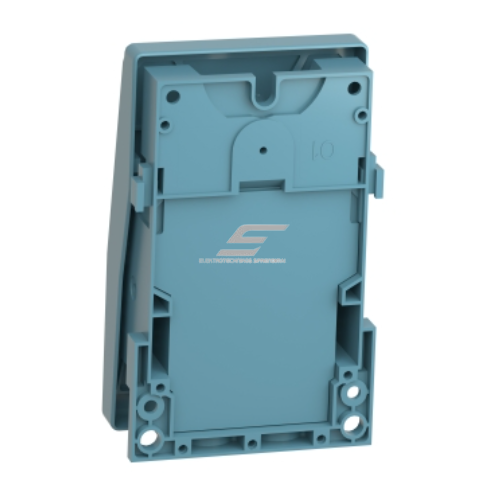

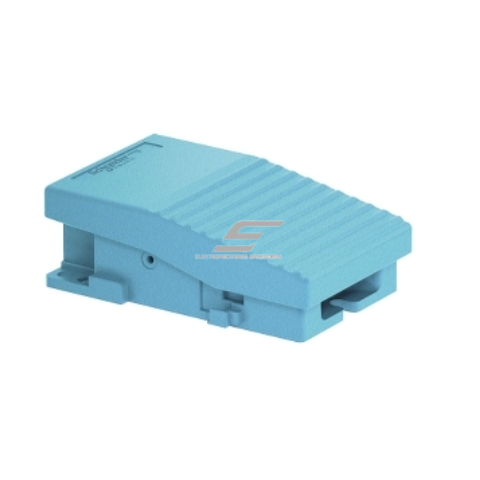

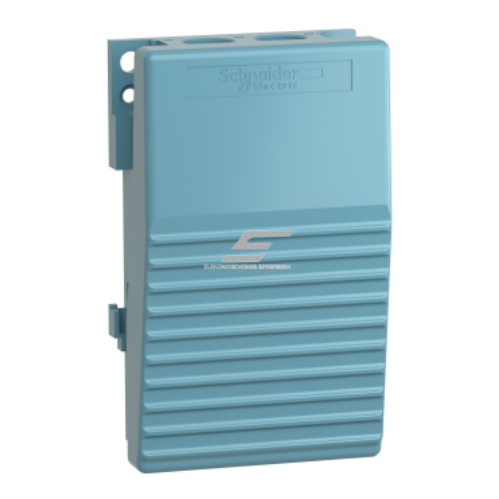

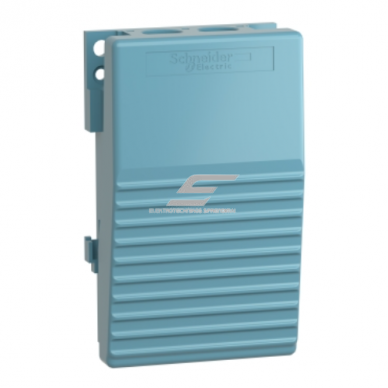

Industrial foot control pedal | 0.27/3A | 240/250V | 1NO+1NC | metal | blue | IP66 | XPEM110 Schneider Electric

Technical Specifications
Brand / Series: Schneider Electric Harmony XPE
Model: XPEM (single)
Color: Blue
Housing: Metal (highly impact- and load-resistant)
Foot operation: Without protective cover, without trigger mechanism
Contact configuration: 1 NO + 1 NC
Operation stage: 1 step
Mechanical durability: 15,000,000 operating cycles
Electrical contact rating: AC-15: 3 A, 240 V; DC-13: 0.27 A, 250 V
Insulation voltage (Ui): 500 V
Shock resistance: up to 150 gn
Vibration resistance: 15 gn (10–500 Hz)
Protection class: IP66 (fully dust-tight and resistant to powerful water jets)
Operating temperature: -25 °C to +70 °C
Storage temperature: -40 °C to +70 °C
Weight: 1.2 kg
Compliance: IEC 60947-5-1, VDE 0660-200, CSA, FIMKO
Connection: Screw clamp terminals

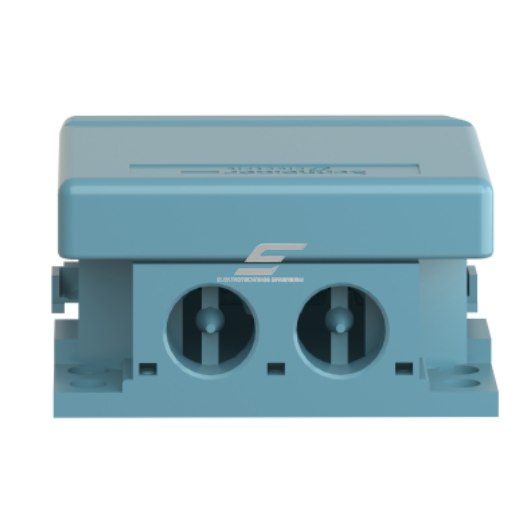

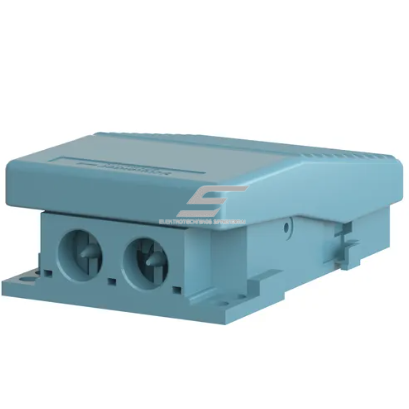

Cable entries: 2 x PG16

Functions

Start, stop, or control command via foot operation

One NO contact for control, one NC for safety or disconnection

Suitable for frequent use – up to 15 million cycles

Can be installed on various workstations (machinery, presses, packaging)

Applications

Industrial automation and control stations

Production lines and operator areas

Workshops, presses, drilling or grinding machines

Food industry or wet environments requiring IP66 protection

Medical, laboratory, or clean environments (when used without cover)

Pros

Durable metal housing

Highly resistant to water and dust (IP66)

Suitable for both control and safety circuits

Long service life (15 million mechanical cycles)

Clear contact logic (NO + NC)

Cons

No protective cover – no prevention from accidental press

The Harmony XPEM single metal foot pedal is a professional, reliable, and long-lasting solution where hands-free and precise equipment control is needed. Although it lacks a protective cover, its simplicity, versatility, and high protection class allow it to perform even in demanding environments. Ideal for engineers, installers, and advanced home users looking for a no-compromise solution.
