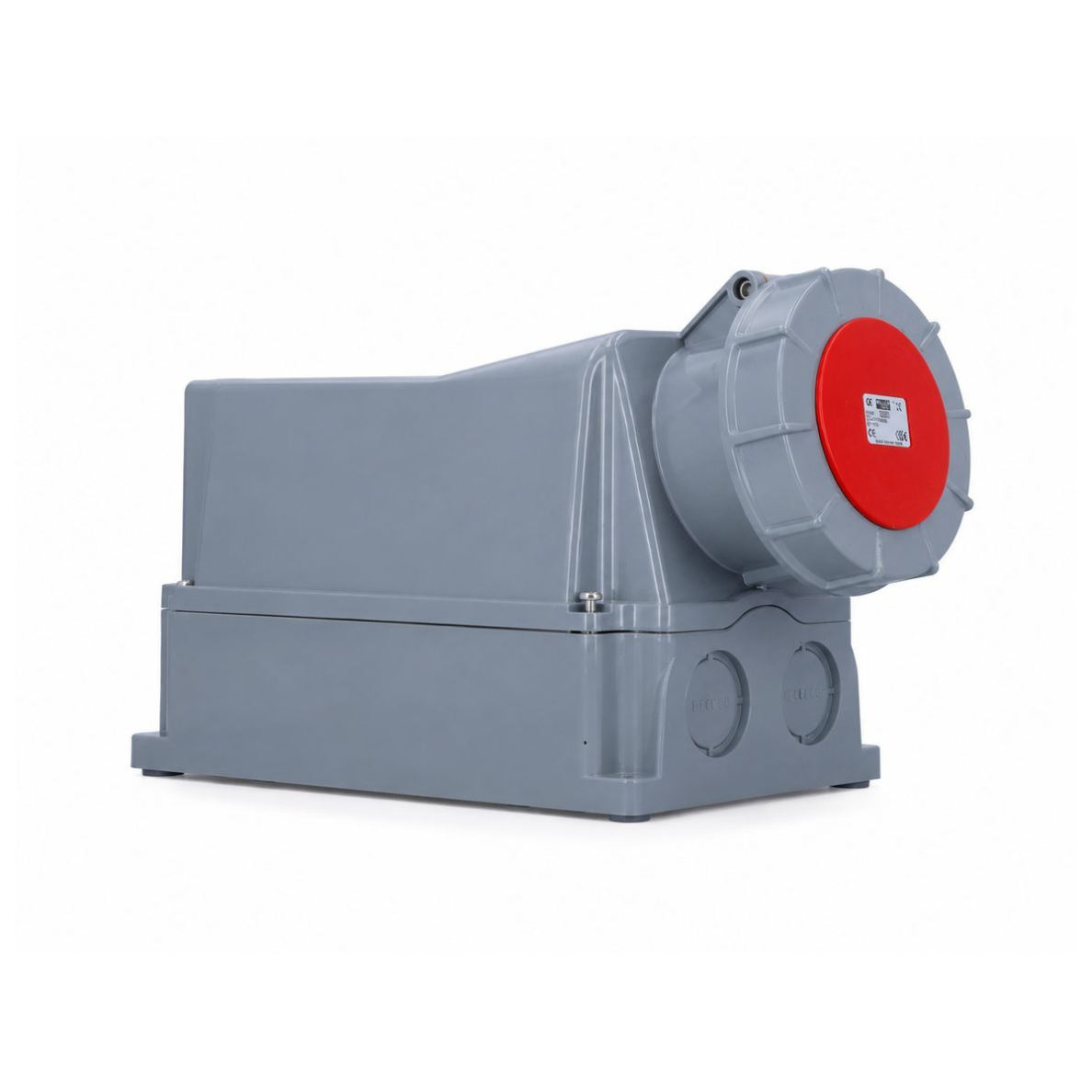

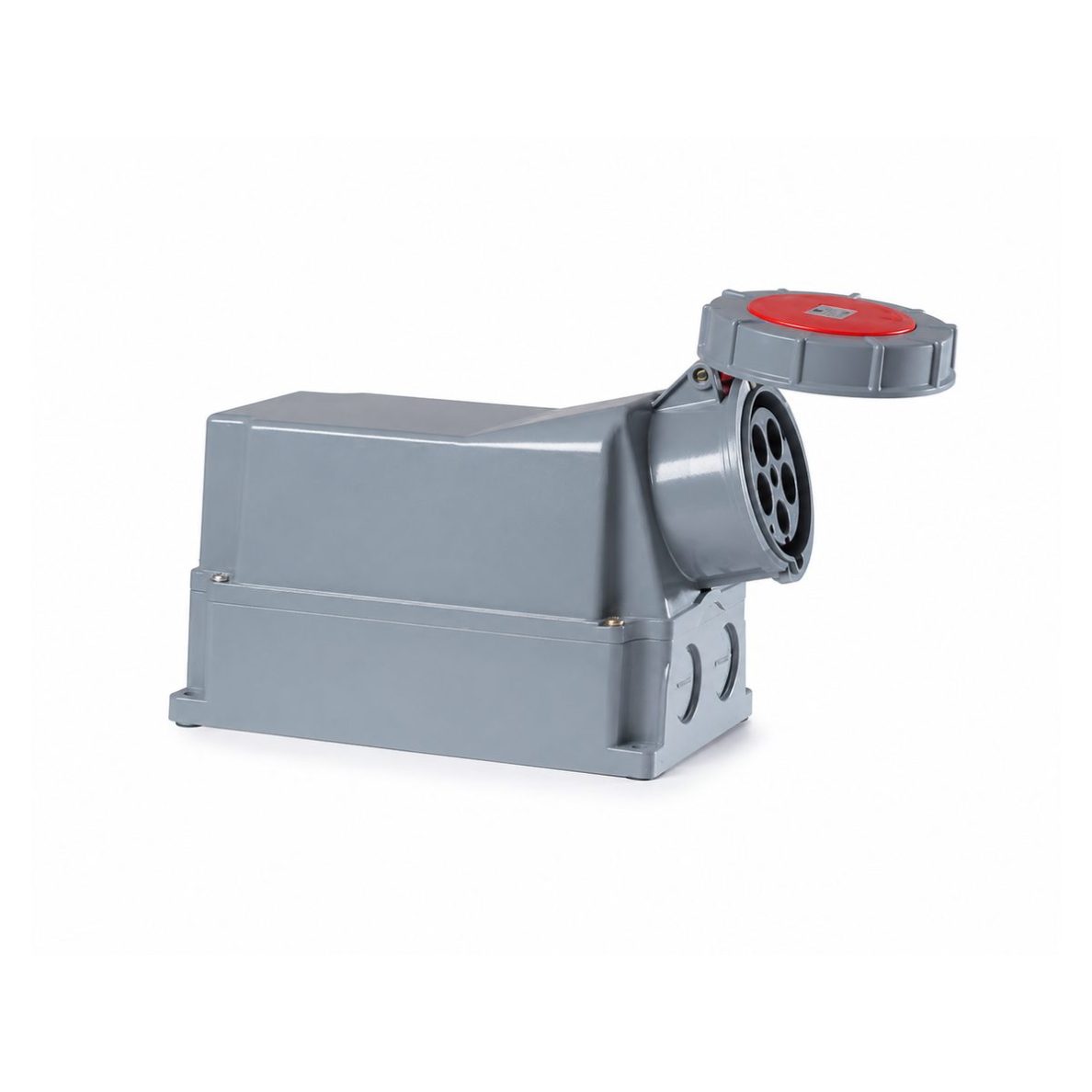

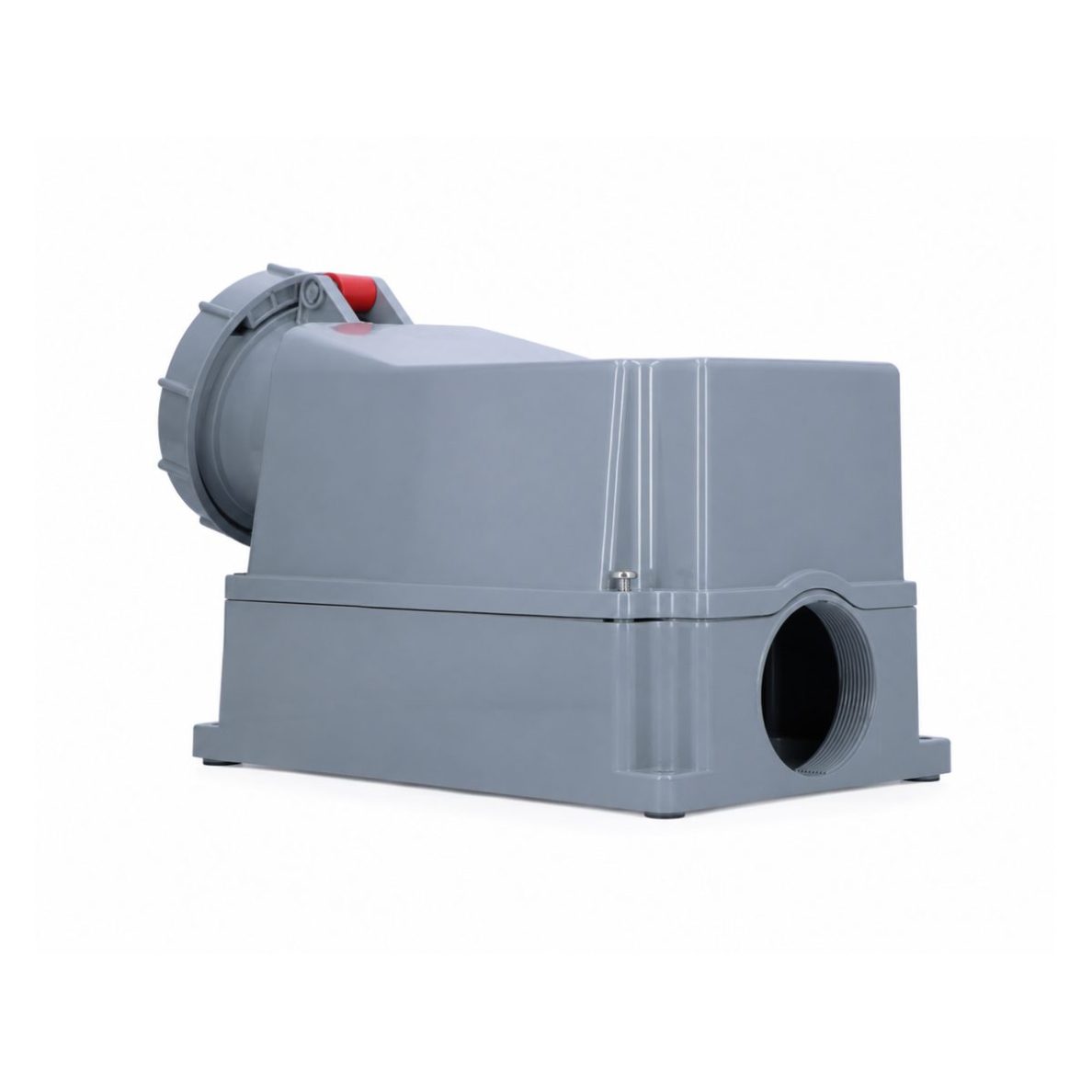

Industrial surface-mounted CEE socket | 5P | 125A | 400V | IP67 | red | 6h | with screw terminals

Technical specifications

Product type: industrial CEE surface-mounted socket
Manufacturer: PCE
Series / type: TWIST
Mounting: surface-mounted
IEC current: 125 A
Number of poles: 5P
Voltage according to EN 60309-2: 400 V, 50/60 Hz
Identification colour: red
Protection class: IP67
Connection type: screw terminals
Cable entry: through a sealing gland
Material: plastic
Fixing method: external / surface-mounted installation
Protective contact clock position: 6 h
Type of use: for three-phase power supply
Installation environment: indoor and outdoor conditions, industrial and technical rooms

Functions

High-power electrical connection – designed for powerful three-phase equipment requiring current up to 125A
Three-phase 400V power supply – used in industrial and technical electrical systems with 400V voltage
5-pole design – suitable for systems with 3 phases, neutral conductor and protective earth
IP67 protection – the socket is protected against dust and water, making it suitable for outdoor use and damp rooms
Surface-mounted installation – mounted on a wall, structure, electrical panel or other surface
Screw terminals – ensure a firm and reliable conductor connection
Sealed cable entry – helps protect the cable entry point from moisture, dust and dirt
Red identification colour – clearly indicates that the socket is intended for a 400V three-phase system
6h protective contact position – ensures compatibility with the corresponding CEE plug according to the number of poles, voltage and current
Durable plastic housing – suitable for industrial, outdoor and technical environments
Safe equipment connection – reduces the risk of incorrect connection when used with the appropriate CEE plug

Use

For domestic users: Suitable for garages, workshops, farms or homesteads when powerful three-phase 400V equipment needs to be connected.
For electricians: Used to install a reliable 125A CEE connection point outdoors, in technical rooms, electrical rooms or industrial facilities.
For engineers / designers: Relevant when designing three-phase power supply systems requiring a 5P, 400V, IP67 and 125A socket.
For industrial companies: Intended for connecting production lines, machines, compressors, pumps, generators or other high-power equipment.
For construction sites: Suitable for temporary or stationary power distribution points where high current and resistance to moisture and dust are required.
For agriculture: Used in farms, hangars, grain storage facilities or machinery service areas to connect three-phase equipment.

Advantages

High 125A rated current – suitable for powerful industrial equipment
5P design – intended for a three-phase system with neutral and protective conductor
400V voltage – standard solution for three-phase electrical systems
IP67 protection – resistant to dust and water, suitable for outdoor conditions
Surface-mounted installation – easy installation on a surface
Screw terminals – reliable conductor connection
Sealed cable entry – better protection against moisture and dust

Disadvantages

Not suitable for single-phase 230V systems, as this is a 5-pole 400V three-phase socket
Requires a suitable CEE plug matching 125A, 5P, 400V and 6h parameters
Larger dimensions than lower-current CEE sockets, so sufficient installation space must be planned

FAQ

Where is a 125A CEE socket most commonly used?
Such sockets are most commonly used in industry, construction sites, manufacturing, agriculture, service workshops, power distribution systems and locations where high-power three-phase equipment needs to be connected.

Is this socket suitable for 400V three-phase equipment?
Yes, this CEE socket is designed for a 400V, 50/60 Hz three-phase electrical system. It has 5 poles, so it can be used for three-phase power supply with neutral and protective conductor.

Can this socket be used outdoors?
Yes, the socket has an IP67 protection class, which makes it resistant to dust and water. It is suitable for outdoor use, construction sites, agricultural premises, industry and other environments where moisture or dust may be present.

What does the 6h position mean?
6h indicates the clock position of the protective contact according to the CEE connector system. This helps ensure that the socket is compatible only with a plug of the correct voltage and design.
