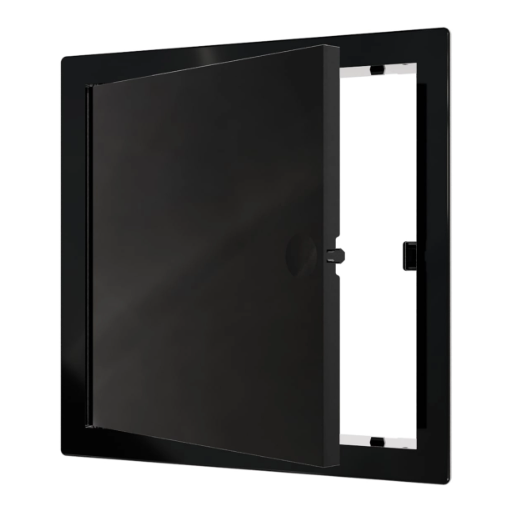

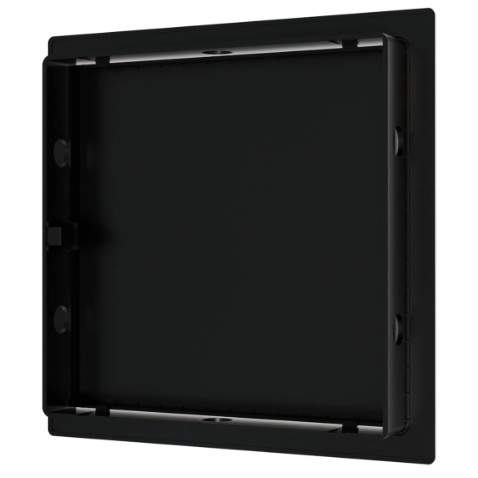

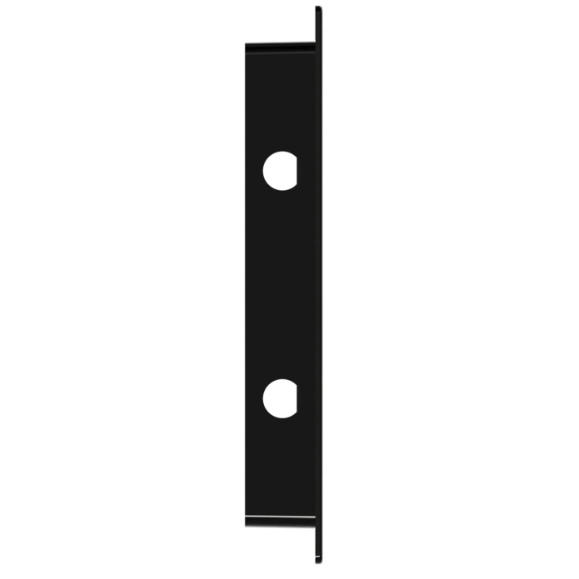

Inspection door–hatch | push-open | 172×172×24 mm | black | plastic

Technical Specifications

Type: Inspection / access hatch
Material: ABS plastic (resistant to yellowing, moisture, oxidation)
Color: Black
Installation location: Walls, partitions, ceilings
Installation method: Adhesive or screws (left- or right-opening)
Opening mechanism: Push-type lock (press-to-open)
Pressing durability cycle: up to 30,000 presses
Operating temperature: –10…+50 °C
Overall height: 172 mm
Overall width: 172 mm
Cut-out height: 150 mm
Cut-out width: 150 mm
Total depth: 24 mm
Net weight: 0.089 kg
Gross weight: 0.099 kg

Functions

• Quick access to utilities – pipes, valves, electrical junctions, filters, and other service points.
• Push-lock mechanism – opens with a simple press, no tools required.
• Moisture-resistant – suitable for bathrooms, basements, and other humid spaces.
• Reversible door direction – can be installed to open left or right.
• Suitable for ceilings – the lock prevents accidental opening.
• Aesthetic design – blends into interiors

Usage

For household users:
Ideal for concealed service areas requiring occasional access: water meters, filters, siphons, electrical boxes. Easy to install and maintain. Opens with a single press.

For engineers:
A reliable solution for system maintenance where fast and safe access is required. Moisture and temperature resistance makes it suitable for technical rooms. Long-lasting durability – up to 30,000 press cycles.

For electricians / installers:
Simple mounting using glue or screws. No additional mechanisms required. Minimal installation time. ABS plastic is easy to work with. Suitable for drywall, masonry, or other flat surfaces.

Advantages

• Resistant to moisture and yellowing
• Easy installation
• Reliable push-lock mechanism
• Long service life
• Suitable for ceilings and walls
• Aesthetic appearance
• Left- or right-opening installation
• Can be painted to match interior color

Disadvantages

• No metal version (ABS plastic only)
• Standard dimensions may not fit non-standard openings
