Access Panel | Floor Inspection Hatch for Basements | 300x300x50mm | with Concealed Lock | Aluminium Profile | RDL3030F
Code: 17319Price 172.85 € VAT incl.( 142.85 € VAT excl. )Floor inspection doors – a reliable and aesthetic solution designed to provide easy and safe access to concealed engineering systems in homes or commercial premises. The robust aluminum profile, the possibility to embed and decorate the hatch with the selected floor covering, and the concealed lock give the product exceptional functionality and versatility.
-
Access Panel | Floor Inspection Hatch for Basements | 300x300x50mm | with Concealed Lock | Aluminium Profile | RDL3030F

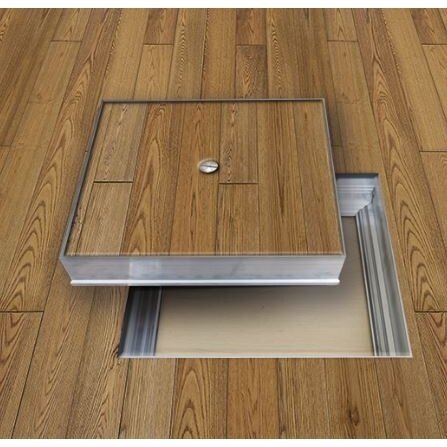

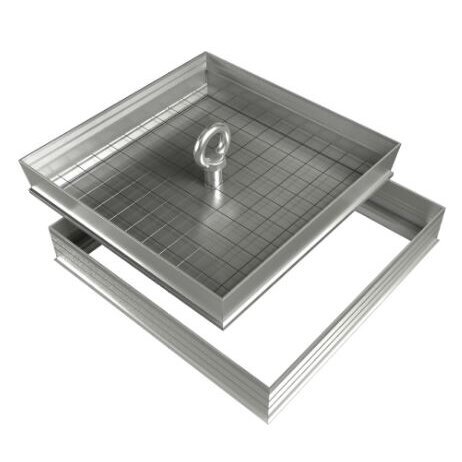

RDL3030F – 300 × 300 mm floor access hatch with an aluminium profile frame and a tray-type lid with reinforcing mesh. The lid is filled with screed and covered with the same floor finish – tiles or stone – and is opened via a concealed lock with a special lifting key.
Key point:
A valve or inspection point concealed under the floor must remain accessible, but the floor should not look like a plant room. A 300 × 300 mm hatch suits a group of valves, a drain inspection point or an underfloor heating manifold branch: after finishing only a narrow aluminium outline remains.Dimensions
300 × 300 mm, depth 50 mmLid
screed-filled, with reinforcing meshLock
concealed, opened with a lifting keySealing
with sealHow it works
The frame is recessed into the floor so that its top is level with the future floor finish, and fixed with screws.
The lid tray is filled with concrete with reinforcing mesh, and the same finish as the floor – tiles, stone – is bonded on top.
When required, the lid is unlocked via the concealed lock and lifted with a special lifting key; the seal limits the ingress of dust and moisture.
Why choose RDL3030F?
It provides access to an installation under the floor without damaging the tiles. The concealed lock prevents accidental opening and is not visible on the surface.Technical specifications
Product type Floor access hatch with concealed lock Code / model 17319 / RDL3030F External dimensions 300 × 300 mm Depth 50 mm Frame material Aluminium profile Colour Silver Lid Tray with reinforcing mesh, intended for screed filling Possible finishes Tiles, stone, mirrors, etc. Lock Concealed, opened with a special lifting key Sealing With seal – protection against dust and moisture Fixing Screws Key features
- Screed-filled lid – the same floor finish is bonded on top.
- Concealed lock – the lid does not open accidentally, no keyhole visible on the surface.
- Seal – less dust and moisture enter the inspection cavity.
- Aluminium frame – does not corrode in damp rooms.
- 300 × 300 mm opening – allows several components to be serviced.
Applications
- Floor valves and inspection points in bathrooms
- Drain inspection openings
- Boiler room and plant room floors
- Corridor floors above concealed pipework
- Water metering points in basements
- Commercial floors with building services
Use by role
Tiler.
Tiles are laid on the lid, so the floor pattern is not interrupted.Plumber.
A drain inspection point or valve remains accessible without breaking up the floor.House builder.
Access to installations is planned in advance, before screeding.Practical example
If a drain inspection point or shut-off valve remains in a bathroom floor, RDL3030F is recessed into the floor, the lid is filled with screed and tiled with the same tiles, and opened with the lifting key when needed.Advantages
- Covered with the same floor finish
- Concealed lock
- With seal
- Aluminium frame does not corrode
- Compact – suitable for bathrooms and corridors
Disadvantages / limitations
- Load class not stated in the specification – do not install in trafficked areas
- The lid must be filled and finished on site
- A special lifting key is required for opening – keep it within easy reach
- Not watertight – not intended for permanently flooded areas
Safety and installation notes
- Align the frame with the finished floor level, otherwise the hatch will protrude or sit low
- Fill the lid completely with concrete and allow it to cure before laying tiles
- Leave the joint around the lid open, do not fill it with adhesive or grout
- Do not place heavy furniture or equipment on the hatch
Quick selection guide
300 × 300 mm50 mm depthconcealed lockscreed-filled lidwith sealSuitable when you need:- concealed access to valves or inspection points in the floor
- a continuous tile or stone floor finish
- protection against accidental opening
Check before use:- floor build-up height (at least 50 mm)
- finished floor level
- whether the installation can be reached through a 300 × 300 mm opening
Important: the hatch is not intended for vehicle traffic or heavy point loads and does not replace a manhole cover.FAQ
Can tiles be laid on the lid?
Yes, the lid is filled with screed and covered with the same floor finish.How is the hatch opened?
The concealed lock is released and the lid is lifted with a special lifting key.Is it suitable for a bathroom?
Yes, the frame is aluminium and the seal limits moisture ingress.What floor depth is required?
The hatch depth is 50 mm.Can the hatch be walked on?
Yes, in normal residential areas; the load class is not stated, so do not place heavy objects on it.Is the hatch watertight?
No, the seal protects against dust and moisture, but not against water pressure.Access Panel | Floor Inspection Hatch for Basements | 300x300x50mm | with Concealed Lock | Aluminium Profile | RDL3030F
RDL3030F – 300 × 300 mm floor access hatch with an aluminium frame, screed-filled lid and concealed lock, covered with tiles or stone and intended for concealed access to valves and inspection points under the floor.
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
