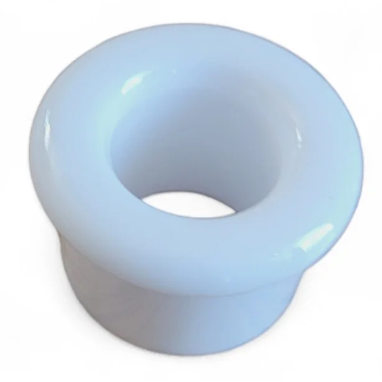

Insulator for braided wire installation | 22x26 mm | ceramic | white

Insulator for braided wire installation | 22x26 mm | ceramic | white 1

Insulator for braided wire installation | 22x26 mm | ceramic | white

Name: Insulator for braided wire installation | 22x26 mm | ceramic | white
SKU: SM-01-10
Price: 1.75 EUR
Availability: InStock

Code: SM-01-10

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Price 1.75 € VAT incl.

( 1.45 € VAT excl. )

Want another price? Suggest yours!

Ceramic insulator for braided wire installation, designed for exposed decorative electrical wiring on walls and ceilings. It is used to neatly space braided wires away from the surface, maintain an aesthetic retro look, and ensure proper mechanical fixation of the wires. The white ceramic body is suitable for bright interiors, wooden walls, ceilings, farmhouses, cafes, lofts, and retro-style electrical installation projects.

Product description

Insulator for braided wire installation – ceramic, white, 22x26 mm

Ceramic insulator for braided wire installation, designed for exposed decorative electrical wiring on walls and ceilings. It is used to neatly space braided wires away from the surface, maintain an aesthetic retro look, and ensure proper mechanical fixation of the wires. The white ceramic body is suitable for bright interiors, wooden walls, ceilings, farmhouses, cafes, lofts, and retro-style electrical installation projects.

Main concept:
This insulator is used for exposed installation of braided wires when wires are mounted visibly on walls or ceilings. The ceramic body helps maintain a classic retro style of electrical wiring and allows for neat wire fixation while keeping a distance from the mounting surface.

Dimensions
22x26 mm

Material
Ceramic

Inner diameter
16 mm

Color
White

Working principle

The ceramic insulator is fastened to a wall, ceiling, or other suitable substrate, and the braided wire is routed through the support area formed by the insulator. This way, the wire remains visible but is firmly held in place and positioned according to the desired installation direction.

Such insulators are mostly used in retro, vintage, or classic-style electrical installations, where wires are not hidden in the wall or conduit but become a visible part of the interior.

Why use ceramic insulators?
Ceramic is a sturdy, heat-resistant, and aesthetically appropriate material for retro-style installations. Ceramic insulators help create a neat route for braided wires on walls or ceilings and maintain an authentic classic electrical installation look.

Technical parameters

Product type	Insulator for braided wire installation
Purpose	Exposed braided wire installation on walls and ceilings
Dimensions	22x26 mm
Inner diameter	16 mm
Wall thickness	4 mm
Material	Ceramic
Color	White
Mounting location	Walls, ceilings, wooden or other properly prepared surfaces
Area of application	Retro, vintage, decorative, and exposed electrical installation
Compatible with	Braided electrical wires and exposed installation elements

Where is it used?

In retro electrical installations – when braided wires are mounted visibly on walls or ceilings.
In farmhouses and wooden houses – for classic-style exposed electrical installation.
In cafes, restaurants, and public spaces – for decorative interior electrical solutions.
In lofts and design projects – when wires become a visible part of the interior.
In repair and restoration work – restoring vintage electrical installation styles.

Practical installation example

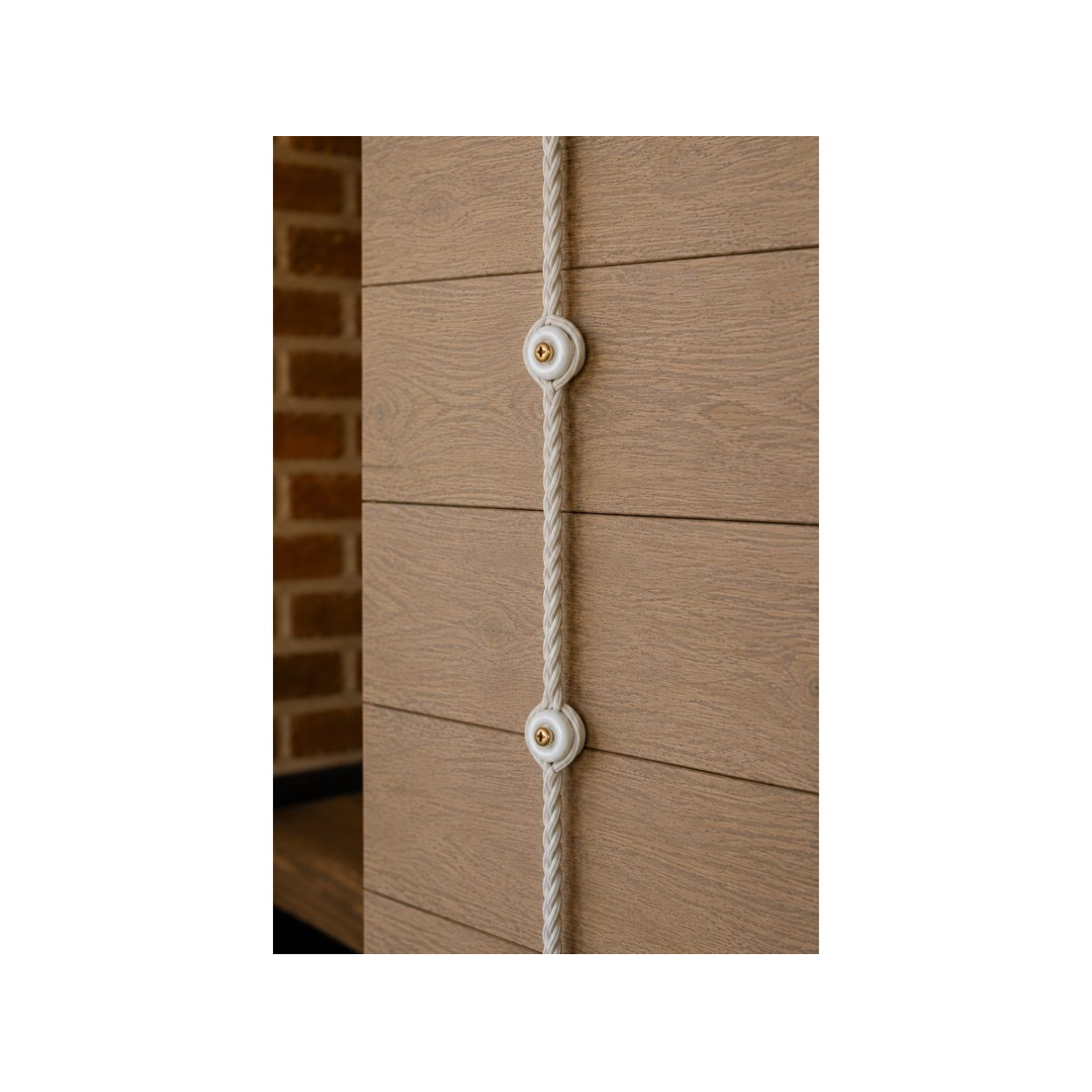

For example, insulators are fastened to a wooden wall or ceiling along the planned wire route. The braided wire is routed through the insulators, maintaining a neat distance from the surface and forming a clear installation path to a switch, lamp, socket, or other electrical point.

The white ceramic insulator is especially suitable for bright interiors, white ceilings, painted walls, or decorative projects where you want to maintain a clean, classic look.

Pros

Ceramic material – sturdy, aesthetic, and suitable for retro installations.
White colored body – easily blends with light-colored walls, ceilings, and classic interiors.
Suitable for braided wires – used for exposed decorative wire installation.
Compact dimensions – 22x26 mm size is convenient for neat mounting.
16 mm inner diameter – suitable for shaping wire routes according to chosen installation solutions.
Helps maintain retro style – suitable for vintage or classic design electrical projects.
Suitable for walls and ceilings – can be used in various exposed installation spots.

Cons / limitations

Requires precise mounting spacing – insulator distances must be planned according to the wire route.
Not suitable for concealed installation – intended for visible exposed braided wire installations.
Ceramic can break – excessive tightening or mechanical impact can cause cracks.
Requires proper fastening hardware – fasteners must match the wall or ceiling material.
Does not protect against incorrect electrical wiring – the entire installation must be performed according to electrical safety requirements.

Safety and installation notes

The insulator is an electrical installation mounting element, therefore, before installation, it is necessary to assess the wire type, route direction, mounting surface, electrical load, protective devices, and overall installation scheme.

Electrical installation must be performed by a qualified electrician in compliance with applicable electrical safety requirements.
Do not overtighten ceramic – excessive force can damage or shatter the insulator.
Fasteners must be selected based on the surface – wood, masonry, concrete, or other structures may require different fastening solutions.
Plan the wire route in advance – ensure insulators are spaced evenly and hold the wire in the correct position.
Use only with suitable wires – the wire type and cross-section must meet installation requirements and load capacity.

Quick selection guide

Ceramic white insulator for braided wire installation 22x26 mm – a suitable choice when you need an exposed retro-style electrical installation on walls or ceilings. It helps neatly fasten braided wires, maintain distance from the surface, and create an aesthetic classic installation look.

Dimensions
22x26 mm

Material
Ceramic

Inner Ø
16 mm

Color
White

Suitable when you need:

to mount braided wires on walls or ceilings;
to create a retro or vintage style electrical installation;
to use white ceramic mounting elements;
to neatly form wire routes in visible installations;
to install decorative wiring in a farmhouse, cafe, loft, or wooden house.

Check before installation:

do the insulator dimensions suit the chosen wire route;
does the 16 mm inner diameter suit the wire and mounting method used;
is the mounting surface sturdy enough;
are appropriate screws or other fasteners selected;
does the entire installation comply with electrical safety requirements.

Important reminder:
This product is a wire mounting insulator, not a safety protection device. It does not replace circuit breakers, RCDs/RCBOs, proper cable selection, or professionally performed electrical work.

FAQ – Frequently Asked Questions

What is this insulator for?
The insulator is intended for exposed braided wire installation on walls and ceilings when wires are mounted visibly and need to be neatly supported.

What are the insulator dimensions?
The insulator dimensions are 22x26 mm.

What is the inner diameter?
The inner diameter is 16 mm.

What material is the insulator made of?
The insulator is made of ceramic.

What color is the insulator?
The insulator is white.

Is it suitable for ceiling mounting?
Yes, the insulator can be used for braided wire installation on walls and ceilings, provided the mounting surface is properly prepared and correct fasteners are used.

Is this insulator suitable for concealed installation?
No. It is intended for visible exposed braided wire installation, where wires are mounted on the surface.

Classic solution for retro braided wire installation

The white ceramic insulator 22x26 mm helps neatly mount braided wires on walls and ceilings, maintaining an aesthetic, clean, and classic electrical installation look.

Due to the ceramic material, compact dimensions, and retro style, this insulator is a practical choice for farmhouses, wooden houses, cafes, lofts, restoration work, and decorative electrical installations.
