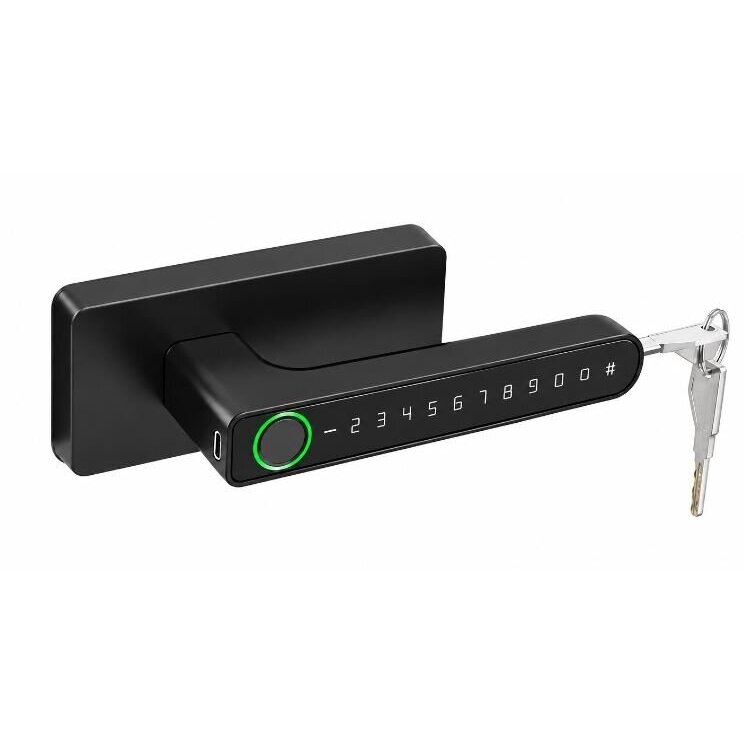

Smart Electronic Lock for Glass Doors | fingerprint | PIN | MIFARE card | TTLock | mechanical key | for 8–15 mm glass

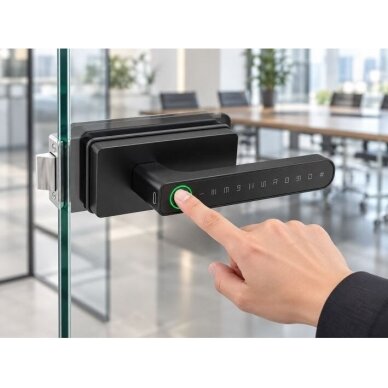

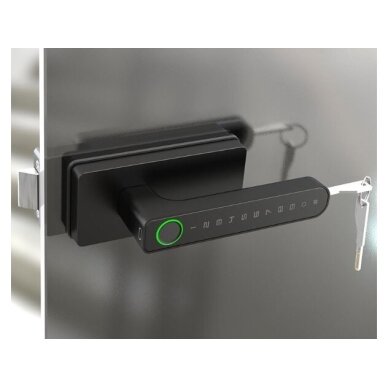

Smart electronic access-control lock designed for frameless glass doors. The lock supports several unlocking methods – fingerprint, PIN code, 13.56 MHz MIFARE card, TTLock app and mechanical emergency key, while an optional remote control can also be used. The adjustable stainless-steel lock latch allows the lock to be more precisely adapted to the specific door construction.

This is a standalone smart glass-door lock combining biometric, PIN-code, card, mobile and mechanical access in one device. It is designed for frameless glass doors 8–15 mm thick and can be managed through the TTLock app, where user fingerprints, passwords and access cards can be administered.

Several independent access methods can be used in one device, so mechanical keys do not need to be issued to every user. Fingerprints, PIN codes and cards can be administered through the TTLock app, while the mechanical key and emergency USB power provide alternative access in critical situations.

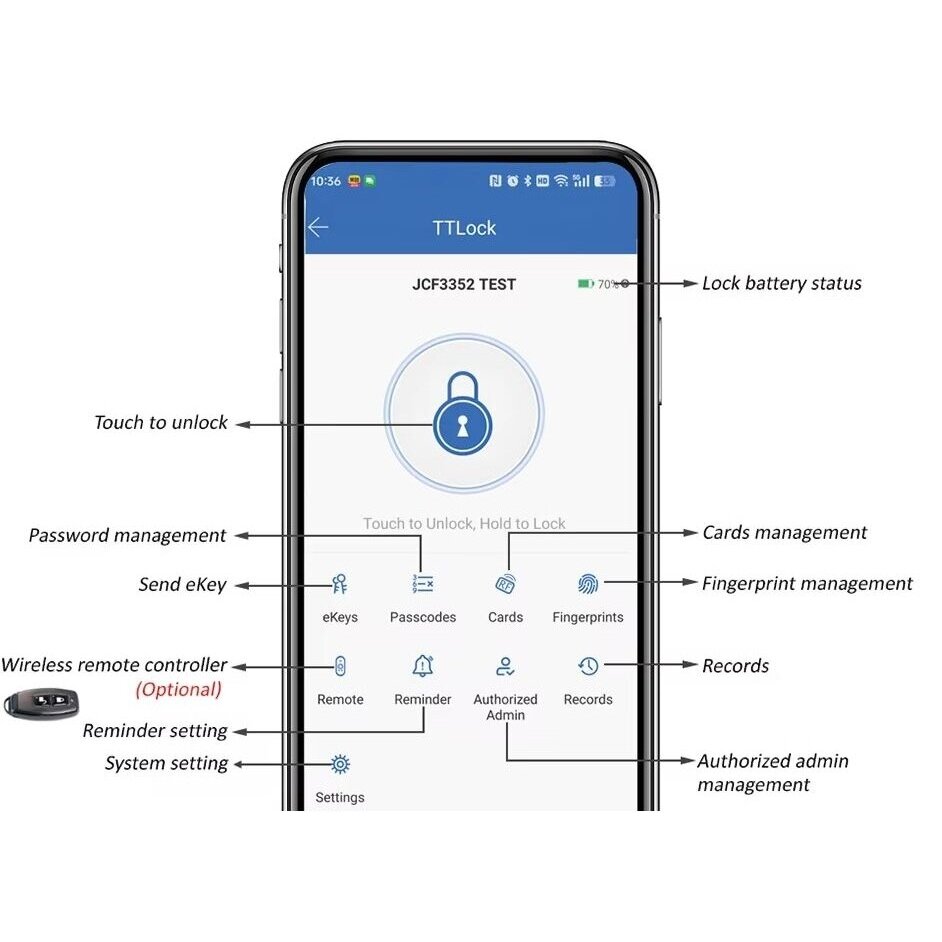

• Unlock the lock using a smartphone.
• Monitor the lock battery status.
• Create and manage PIN passwords.
• Manage access cards.
• Manage fingerprints.
• Send electronic access keys (“eKeys”).
• View access records.
• Manage authorised administrators.
• Change system settings.

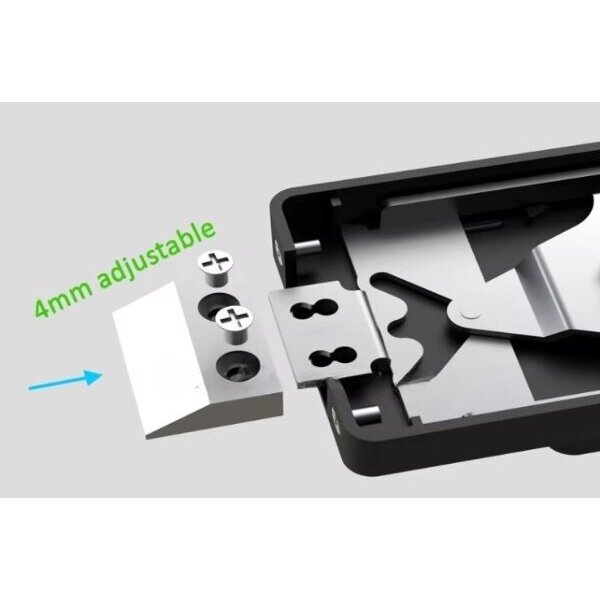

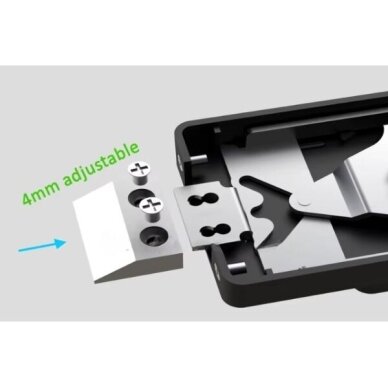

If the gap between the door sections is larger or the mechanism is not perfectly aligned, the adjustable latch allows the locking position to be corrected and the lock to be installed more securely.

• Frameless glass doors.
• Office glass doors.
• Conference and meeting rooms.
• Administrative premises.
• Glass doors in commercial premises.
• Premises requiring electronic access control.
• Locations where biometric, card-based and mobile access are to be combined.

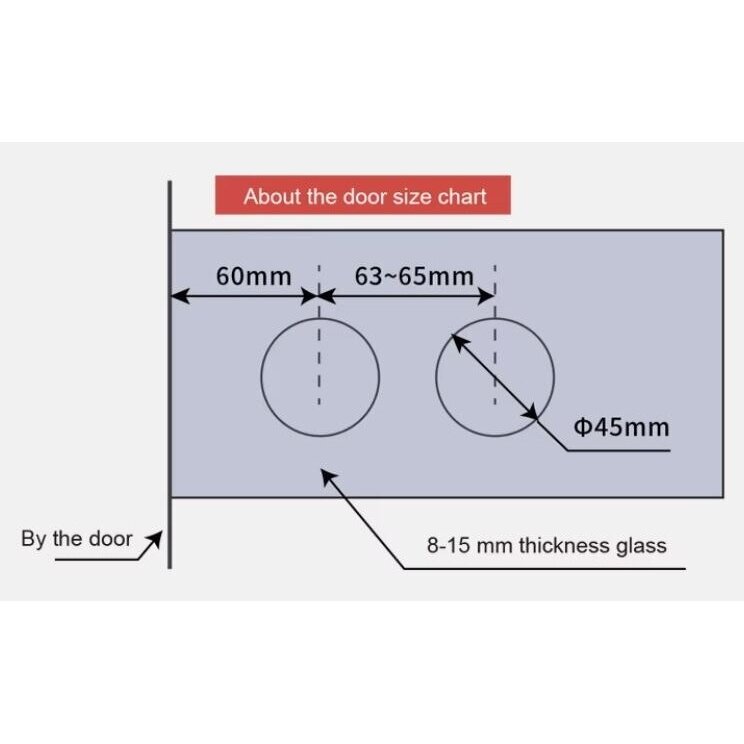

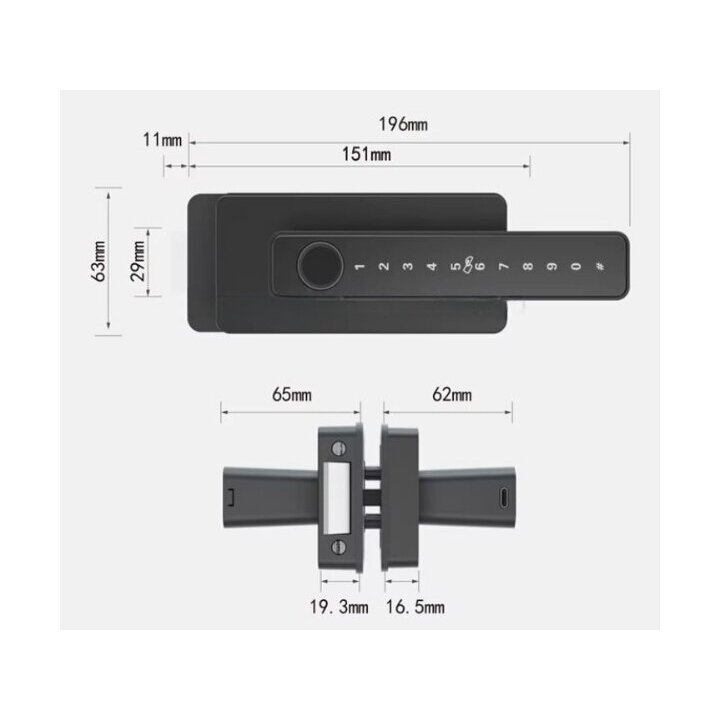

The lock is designed for glass 8–15 mm thick. Two Ø45 mm holes are required at the installation location. According to the diagram, the centre of the first hole is positioned approximately 60 mm from the edge of the glass, while the centre-to-centre distance between the holes is approximately 63–65 mm.

If the lock is replacing a previously installed lock and the existing holes in the glass correspond to these dimensions, additional modification of the glass may not be required. For a new installation, hole compatibility must be checked before ordering or drilling the glass.

Tempered glass cannot be drilled or mechanically processed after tempering. If the door does not already have suitable holes for the lock, their layout must be planned during the glass manufacturing and processing stage. Before installation, the mounting drawing for the exact lock variant must be checked.

Once the lock has been installed on properly prepared glass doors, the administrator can register fingerprints, PIN codes and access cards in the TTLock app. Everyday users can use the unlocking method assigned to them. If the batteries are discharged, emergency USB power can be used, while the mechanical key can be used if the electronic system is not functioning.

• Before ordering, check the glass thickness and the dimensions of any existing installation holes.
• For new holes, determine their positions according to the mounting drawing of the specific model.
• Do not drill or otherwise mechanically process already tempered glass.
• The lock mechanism and mating section must be precisely aligned.
• If the door gap is too large, adjust the position of the adjustable latch only within the permitted range.

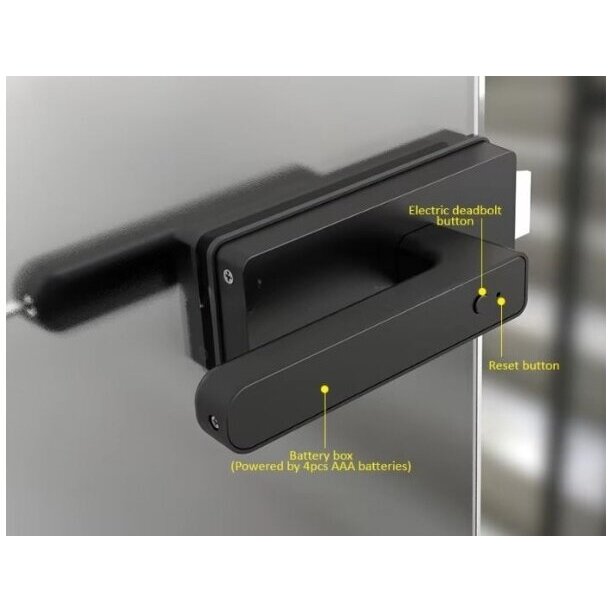

• Use 4 suitable AAA batteries and monitor their status in the app.
• The USB port is intended for emergency power and does not replace the main battery power supply.
• Keep the mechanical keys in a separate, accessible location for emergency use.

Smart Glass-Door Lock | TTLock | fingerprint | PIN | MIFARE | 8–15 mm

Multifunctional electronic access-control lock for frameless glass doors 8–15 mm thick. Unlocks by fingerprint, PIN code, 13.56 MHz MIFARE card, TTLock app or mechanical key. Powered by 4×AAA batteries, with USB emergency power and an adjustable SUS304 stainless-steel lock latch.
