  •   Intermediate clamp for frameless solar modules | 80 mm | for 5–8 mm glass modules | anodized

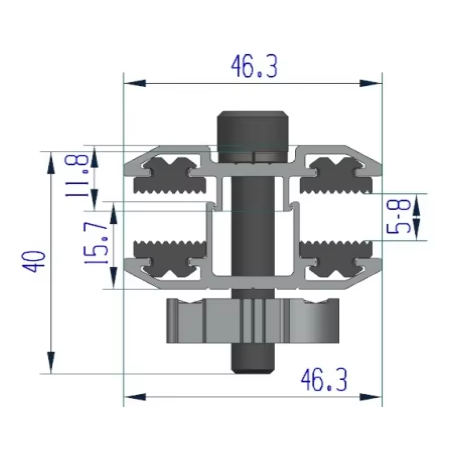

      Intermediate clamp for frameless solar modules | 80 mm | for 5–8 mm glass modules | anodized 1

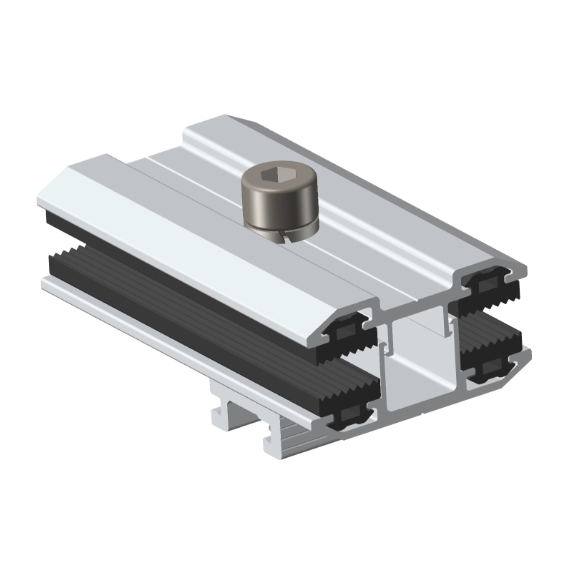

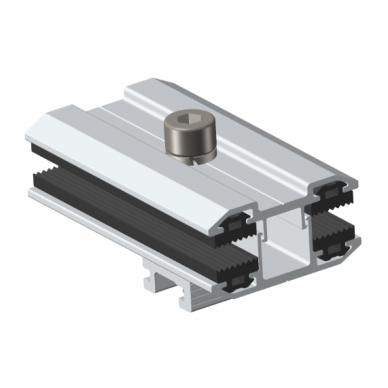

    Intermediate clamp for frameless solar modules | 80 mm | for 5–8 mm glass modules | anodized

    Code: ES-AS-TFMC
    Inquire about this item
    Price 1.73 € VAT incl.
    ( 1.43 € VAT excl. )
    Want another price? Suggest yours!

    Professional intermediate clamp for frameless solar modules, designed for mounting thin and glass PV modules. Made from high-quality aluminum with an anodized surface and an EPDM rubber gasket, this holder ensures secure fixation, protection against damage, and resistance to environmental impact. Due to its simple installation, high load resistance, and versatility, it is an ideal choice for both professional installers and individual projects.

  • Product description

    Technical Specifications

    Product type: mid clamp for frameless solar modules
    Material: AL6005-T5 aluminum + EPDM rubber gasket
    Fastening elements: SUS304 stainless steel bolt M8×40 + spring + nut
    Surface treatment: anodizing ≥10 μm
    Color: silver / black
    Suitable module thickness: 5–8 mm (frameless glass modules)
    Length: 80 mm
    Snow load: up to 1.4 kN/m²
    Wind load: up to 60 m/s
    Installation: between two modules (internal mounting)

    Functions

    Strong module fixation – securely holds glass PV modules
    Protection against damage – EPDM gasket protects glass surface
    Resistance to environmental impact – anodized aluminum and stainless steel
    Easy installation – quick and simple assembly
    Universal application – suitable for various structures
    Precise clamping – ensures stability and durability

    Usage

    For home users: Installation of solar systems on roof or ground structures, installation of small or medium systems at home, DIY projects with frameless modules
    For engineers / designers: Design of solar mounting systems, optimization of loads and fastening solutions, creation of reliable systems according to standards
    For installers / contractors: Fast and efficient module installation on site, safe fixing of glass modules without damage, professional solution for clients
    For solar energy projects: Installation of thin-film modules, frameless glass module systems, commercial and industrial projects

    Advantages

    High-quality aluminum (AL6005-T5)
    EPDM protection – does not damage glass
    Corrosion-resistant (anodized surface)
    Suitable for high loads (snow, wind)
    Fast and easy installation
    Universal use in various systems

    Disadvantages

    Suitable only for frameless modules
    Requires precise selection according to glass thickness (5–8 mm)
    Requires compatible mounting system (rails)

    Is this clamp suitable for all solar modules?
    No, it is intended for frameless glass modules (5–8 mm thickness).

    Does it damage the glass surface?
    No – the integrated EPDM rubber gasket protects the module from damage.

    Is it suitable for outdoor use?
    Yes – anodized aluminum and stainless steel ensure corrosion resistance.

    What loads is it designed for?
    Up to 1.4 kN/m² snow and 60 m/s wind – suitable even for harsh conditions.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
