  •   IP network audio terminal with integrated amplifier and remote control | 4–8 Ω | 24V EMC output | AUX / microphone input / USB storage / SD card
      IP network audio terminal with integrated amplifier and remote control | 4–8 Ω | 24V EMC output | AUX / microphone input / USB storage / SD card 1
      IP network audio terminal with integrated amplifier and remote control | 4–8 Ω | 24V EMC output | AUX / microphone input / USB storage / SD card 2

    IP network audio terminal with integrated amplifier and remote control | 4–8 Ω | 24V EMC output | AUX / microphone input / USB storage / SD card

    Code: MAG6419
    Inquire about this item
    Price 528.94 € VAT incl.
    ( 437.14 € VAT excl. )
    Want another price? Suggest yours!

    IP network audio terminal with an integrated digital amplifier, designed for modern public address (PA) and IP audio systems. The device combines an IP audio decoder, local amplification, multiple audio inputs, and remote control in a single compact enclosure, significantly simplifying the deployment of zoned audio systems.

    The unit allows direct connection of low-impedance loudspeakers (4–8 Ω) without an additional amplifier, enables local or IP network–based volume control, and ensures stable operation even in critical systems such as evacuation or safety public address systems.

  • Product description

    Technical Specifications

    Type: IP network audio terminal with integrated amplifier and remote control
    Integrated functions: IP network audio decoder, digital power amplifier
    Output power: 1 × 25 W @ 4 Ω; bridge mode – up to 50 W @ 8 Ω
    Speaker outputs: 4–8 Ω
    Audio inputs: AUX, microphone input, USB storage, SD card
    Additional output: 1 × AUX (RCA) – for power expansion or external amplifier
    EMC function: 24 V EMC output (emergency / evacuation messages)
    Remote control: Wireless remote, operating distance up to 10 m
    Application: Local amplification in IP zones

    Functions

    IP audio decoding and local amplification: the device directly receives audio from the IP network and amplifies it for local loudspeakers – no separate power amplifier required
    Multi-source audio support: IP streaming, microphone, USB or SD card inputs allow flexible use for background music, announcements, or events

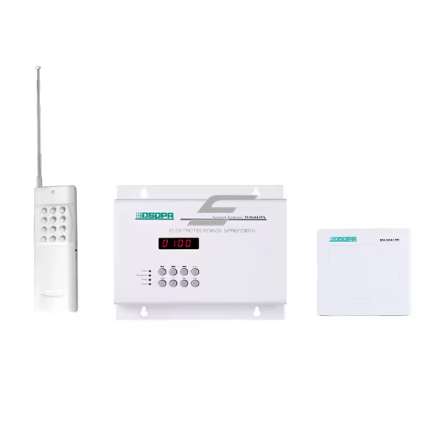

    Remote control: included remote control enables convenient volume adjustment, source switching, and function control up to 10 meters
    EMC emergency function: 24 V EMC output ensures priority message delivery in critical situations – essential for evacuation and safety systems
    AUX output for system expansion: allows connection of an additional amplifier or active audio equipment when higher power or an extra zone is required

    Use Cases

    For home users: Suitable for larger homes, studios, or offices with multiple audio zones; easy operation via USB / SD or remote control; clean solution without additional equipment
    For engineers / system integrators: Ideal IP PA zone solution for classrooms, offices, waiting areas; reduces system complexity with fewer separate components; fully compatible with DSPPA MAG series IP infrastructure
    For electricians / installers: Clear 4–8 Ω speaker outputs, no need for a separate amplifier; fast and convenient installation in commercial facilities

    Pros

    IP decoder and amplifier in one device
    Up to 50 W output power in bridge mode
    Multiple audio sources (IP / AUX / Mic / USB / SD)
    Remote control included
    EMC support for evacuation systems
    Compact and reliable solution for zoned audio

    Cons

    Designed only for low-impedance (4–8 Ω) speakers
    Full system control requires an IP control center

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
