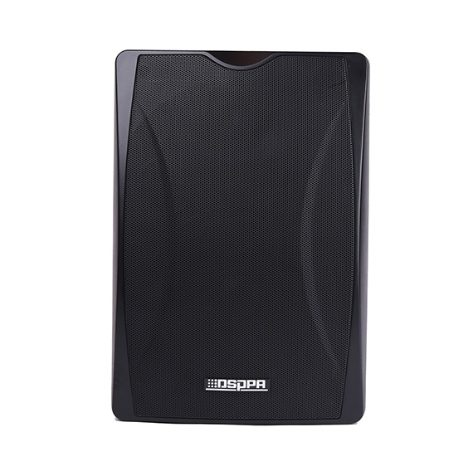

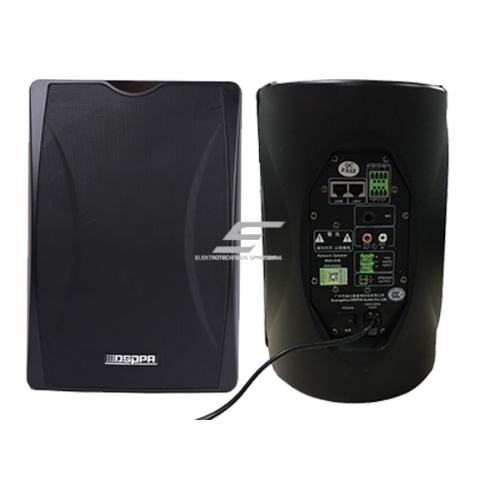

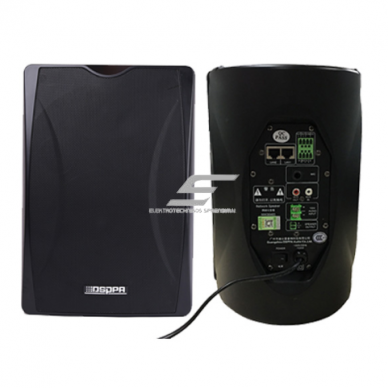

  •   IP network wall-mounted speaker with integrated amplifier and IP decoder | 2×25 W | black | AUX and 100 V outputs | LED display | IP/AUX/USB/SD support
      IP network wall-mounted speaker with integrated amplifier and IP decoder | 2×25 W | black | AUX and 100 V outputs | LED display | IP/AUX/USB/SD support 1
      IP network wall-mounted speaker with integrated amplifier and IP decoder | 2×25 W | black | AUX and 100 V outputs | LED display | IP/AUX/USB/SD support 2
      IP network wall-mounted speaker with integrated amplifier and IP decoder | 2×25 W | black | AUX and 100 V outputs | LED display | IP/AUX/USB/SD support 3

    IP network wall-mounted speaker with integrated amplifier and IP decoder | 2×25 W | black | AUX and 100 V outputs | LED display | IP/AUX/USB/SD support

    Code: MAG6463B
    Inquire about this item
    Price 431.00 € VAT incl.
    ( 356.20 € VAT excl. )
    Want another price? Suggest yours!

    An IP network wall-mounted loudspeaker that combines an IP audio decoder, a high-efficiency 2×25W digital amplifier, and a built-in speaker / audio outputs in a single device. This solution is designed for zoned public address (PA) system installations where compact size, aesthetic design, and minimal additional equipment are essential.

    The loudspeaker enables audio streaming directly over an IP network, supports local audio sources, and allows system expansion with additional speakers or amplifiers when required.

  • Product description

    Technical Specifications

    Type: IP network wall-mounted loudspeaker with integrated amplifier and IP decoder
    Integrated functions: IP network audio decoder, high-efficiency digital amplifier
    Output power: 2 × 25 W
    Audio sources: IP network streaming, AUX input, USB storage, SD card

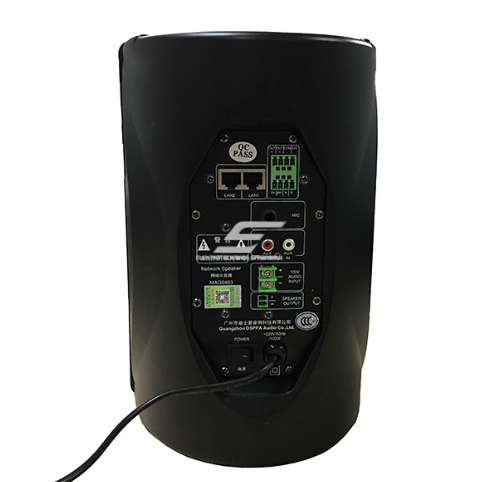

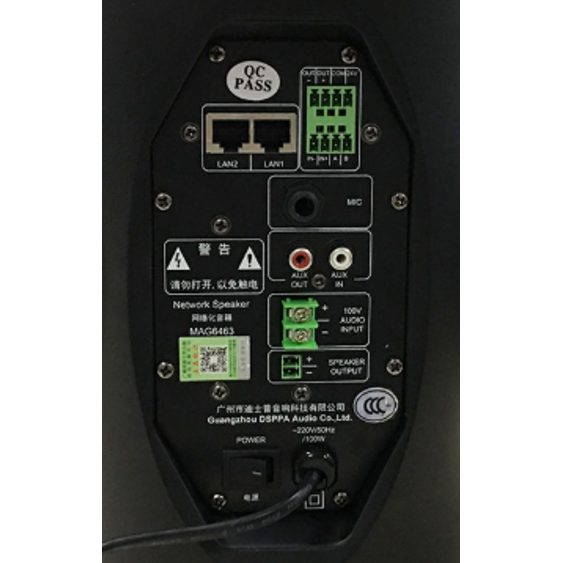

    Audio outputs: 1 × AUX output – for power expansion; 100V output – for signal distribution
    Control: Volume control, local audio source selection
    Indication: LED display – shows playback and operating status
    Compatibility: Can be connected to MAG6402 IP audio control terminal
    Mounting: Wall-mounted

    Functions

    IP audio decoding and local amplification – the loudspeaker receives audio directly from the IP network and amplifies it locally, eliminating the need for a separate amplifier
    Multi-source audio support – playback of music or announcements from IP network, USB, SD card, or AUX source provides high flexibility for daily use
    System expansion – AUX output allows connection of an additional amplifier or active speaker, while the 100V output enables integration into a larger PA infrastructure
    LED status display – clearly shows playback and system operation status for both users and technical staff
    Integration with control panel – fully compatible with MAG6402 IP audio display terminal for centralized audio and announcement control

    Usage

    For home and office users: A convenient solution for background music and announcements in offices or public spaces, easy operation without technical knowledge, aesthetic design suitable for interiors
    For engineers and system integrators: An ideal IP PA zone solution without additional components, reduces system complexity and installation time, easily integrates into DSPPA MAG series IP systems
    For electricians/installers: Wall-mounted installation, fast and tidy setup, clear terminals and outputs, fewer cables and separate devices

    Pros

    IP decoder and amplifier in one device
    2×25W power – suitable for zoned sound systems
    IP / AUX / USB / SD support
    AUX and 100V outputs for system expansion
    LED status display
    Modern wall-mounted design

    Cons

    Limited power for large spaces
    Central IP PA server required for full IP control

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
