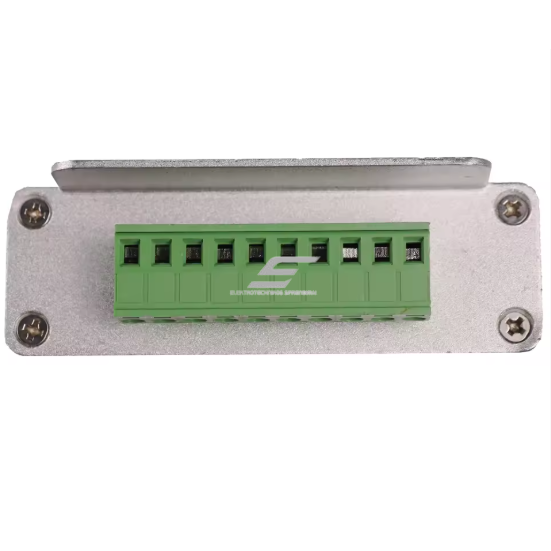

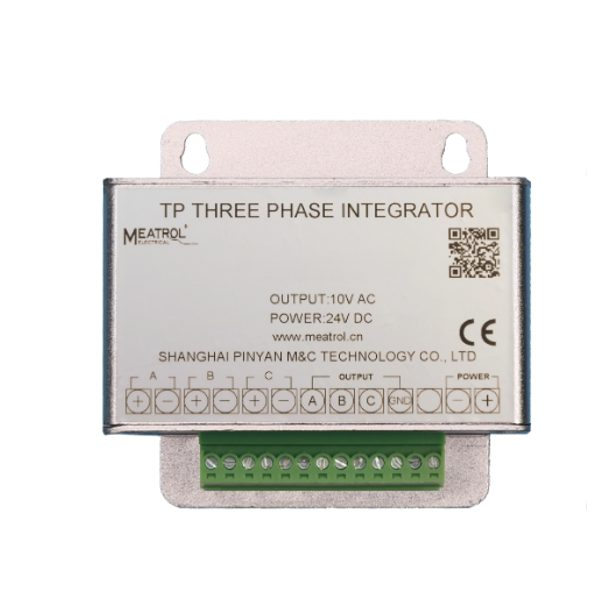

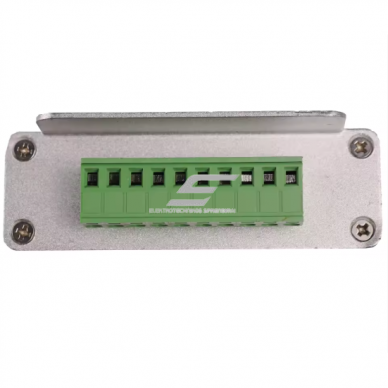

Laboratory Rogowski Coil Integrator | High Accuracy | 6000 A | 85 mV/kA | 0–10 V / 333 mV | For AC Current Measurement | S1.1

Technical Specifications

Type: Laboratory Rogowski coil integrator (high precision)
Model: S1.1
Rated input current: 6000 A
Output signal: 0–10 V AC or 333 mV RMS
Coil transfer ratio: 85 mV/kA
Measurement accuracy: ±0.2 %
Frequency bandwidth: 5 Hz – 20 kHz
Power supply: 4–12 V DC (default) or 24 V DC
Measurement type: AC current only
Design note: For each 100 A of rated current, the maximum output is 1 V
Application: Stationary, laboratory / bench-top installation

Functions

High-resolution Rogowski signal integration
Very low measurement error – suitable for reference measurements
Wide frequency range – for harmonic and dynamic process analysis
Flexible configuration according to selected coil and current range
Stable, low-noise analog output

Applications

For engineers / R&D specialists: Suitable for prototype testing, power electronics measurements, converter and inverter analysis, where accurate current evaluation over a wide frequency range is required.

For electrical and measurement laboratories: Used as part of a high-precision measurement chain in combination with oscilloscopes, data acquisition systems, or energy analyzers. An excellent solution for calibration and comparative measurements.

For industrial engineering (high requirements): Suitable where standard 4–20 mA or 0–10 V solutions do not provide sufficient accuracy, such as power quality analysis, harmonic studies, or high-current testing.

Advantages

Very high accuracy – ±0.2 %
Laboratory-grade – stable and repeatable results
Wide frequency range (up to 20 kHz)
Flexible compatibility with different Rogowski coils

Limitations

Fixed rated current
AC current only (DC not supported)
Not DIN-rail mountable – intended for laboratory or bench use
Requires an external DC power supply
