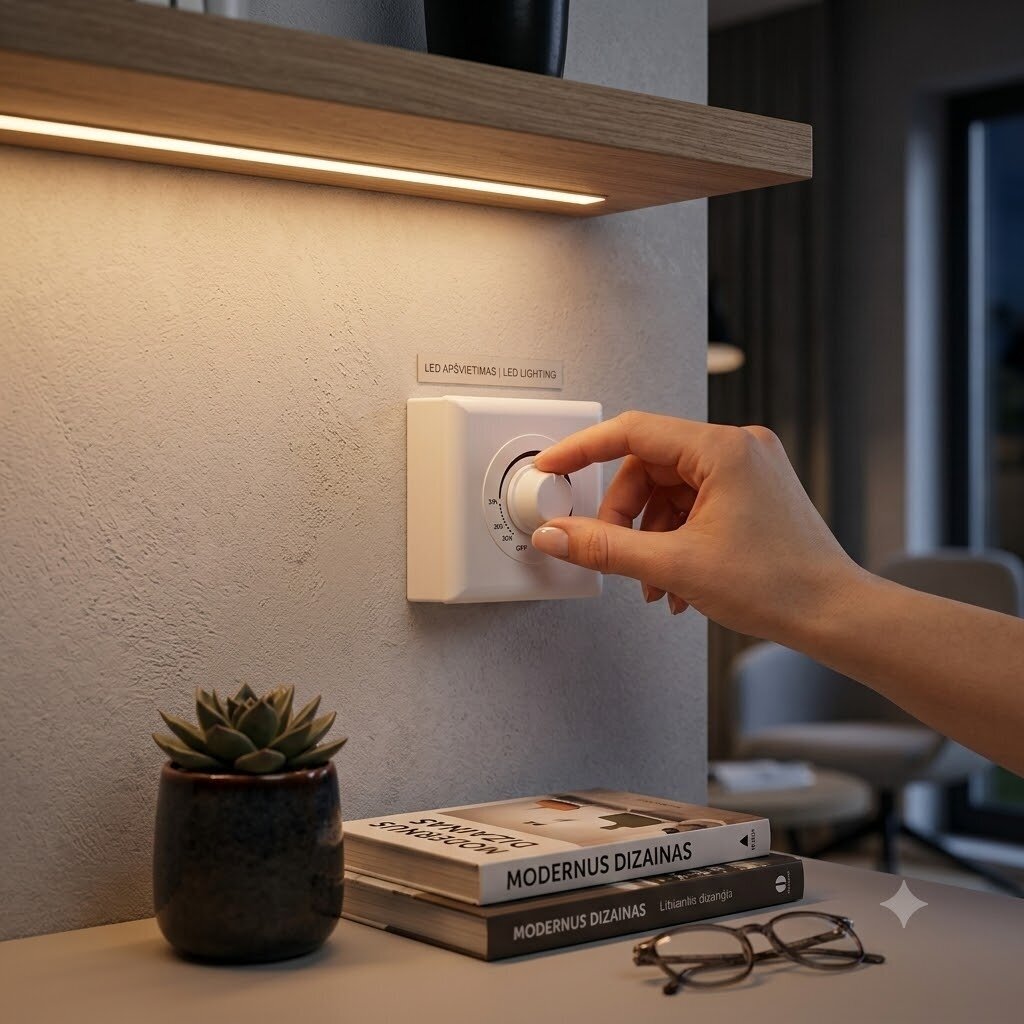

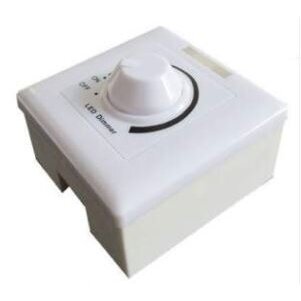

LED dimming controller | dimmer | 0–10VDC | surface-mounted / flush-mounted

Technical specifications

Product type: LED dimming controller / dimmer
Control signal: DC 0–10V
Purpose: LED lighting brightness control
Additional function: switch / changeover switch
Rated supply voltage: 110–220V AC
Frequency: 50–60 Hz
Output control voltage: DC 0–10V
Maximum switching current: 1A
Operating temperature: 0–60 °C
Installation type: surface-mounted / flush-mounted
Dimensions: 86 × 86 × 55 mm
Use: indoor use
Compatibility: with LED power supplies, LED drivers or lighting systems supporting 0–10V control

Functions

LED lighting brightness control – allows adjustment of LED luminaires’ light intensity according to need
0–10V DC control signal – designed for LED drivers, power supplies or lighting systems that support 0–10V dimming
On / off function – integrated switch allows lighting to be turned on and off
Smooth dimming – helps create comfortable lighting without sudden light changes
Surface-mounted installation – can be mounted on the wall surface when installation inside the wall is not possible
Flush-mounted installation – suitable for installation in a wall mounting box so the controller looks neat and aesthetic
Energy saving – reducing lighting brightness may reduce electricity consumption
Lighting comfort control – allows light to be adjusted for work, rest, retail spaces or technical rooms
Compatibility with professional LED systems – suitable for use with LED luminaires and power supplies supporting 0–10V control

Use

For household users: This LED dimming controller can be used in houses, apartments, home offices, kitchens, living rooms or corridors when convenient LED lighting brightness control is required. It is especially useful in areas where different light intensity is needed at different times of the day.

For electricians: Relevant as a simple and functional solution when installing 0–10V LED control systems. Standard 86 × 86 mm dimensions allow the device to be easily integrated into common installation locations.

For engineers / designers: When designing lighting systems, this controller can be used where analogue 0–10V lighting control is required. It is suitable for commercial, administrative, technical and industrial premises where lighting control functionality is important.

For commercial premises: The controller is suitable for offices, shops, showrooms, exhibition areas, hotels, restaurants or other premises where lighting intensity must be adjusted according to the type of activity, working hours or desired atmosphere.

For maintenance: The device can be used when replacing or modernising older lighting control solutions where LED drivers compatible with a 0–10V DC signal are already used.

Advantages

Supports DC 0–10V LED dimming control
Suitable for LED lighting systems with compatible 0–10V drivers
Integrated on / off switch
Surface-mounted or flush-mounted installation possible
Universal power supply: 110–220V AC
Allows more comfortable lighting control

Disadvantages

Works only with equipment that supports a 0–10V DC control signal
Not suitable for standard LED lamps if they do not have a compatible 0–10V dimming driver

Where is this LED dimming controller most commonly used?

It is most commonly used in offices, homes, retail premises, restaurants, hotels, technical areas and other places where LED lighting brightness needs to be controlled using a 0–10V control system.

Is this LED dimmer suitable for all LED lamps?

No. This controller is designed for systems that support 0–10V DC dimming control. If the LED lamp or luminaire does not have a compatible 0–10V LED driver, this controller may not be suitable.

What does 0–10V control mean?

0–10V control means that lighting brightness is adjusted using an analogue voltage signal. Lower control voltage means lower light intensity, while higher voltage means higher brightness. This is often used in professional LED lighting systems.

Can this controller turn the lighting on and off?

Yes, the device has a switch-type function, so it can be used not only for brightness control but also for switching the lighting on / off. The maximum switching current of 1A must be taken into account.
