Mobile Pipeline Inspection Camera | 1080P | Φ23x120mm | 20m Cable | IP68

The system is designed for inspecting the inside of pipes without prior dismantling. The Φ23mm camera head is pushed through the pipeline using the 20m cable, while the image is displayed in real time on the 9" IPS monitor. The camera helps visually identify blockages, deposits, foreign objects, pipe damage, deformation and other visible problems.

The Φ23mm camera head has an IP68 protection rating and is designed for operation in wet pipe environments. The IP68 rating does not automatically apply to the 9" monitor, battery, charger or other electronic components of the system, so these components must be protected from water.

The rechargeable battery allows pipe inspections to be carried out without connecting the system to a continuous power supply. Actual operating time may vary depending on display brightness, LED illumination intensity, ambient temperature and operating mode.

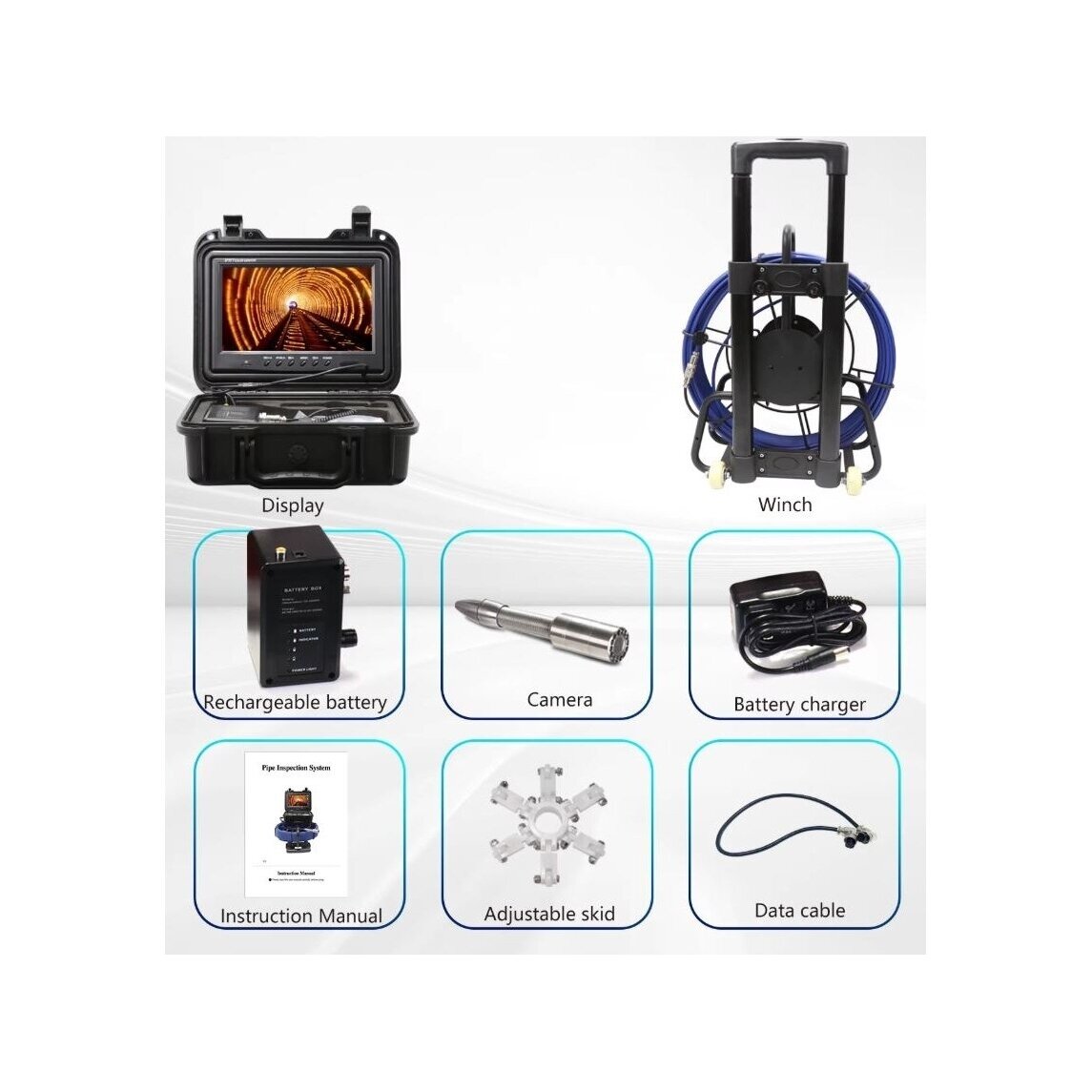

• 9" IPS monitor
• 20m cable reel
• 4500mAh rechargeable battery
• 1080P Φ23x120mm inspection camera
• Battery charger
• User manual
• Adjustable camera guide
• Data cable

• 1080P camera enables detailed visual inspection of pipe interiors.
• 20m inspection cable allows access to deeper sections of the pipeline.
• 9" IPS display provides a large and convenient image for monitoring.
• Φ23mm camera head is suitable for inspecting sewer and other compatible pipelines.
• 120° viewing angle provides a wider view of the pipe interior.
• 12 adjustable LEDs help illuminate dark areas inside the pipeline.
• IP68 camera protection is suitable for wet pipe environments.
• SUS304 stainless steel housing provides mechanical strength to the camera head.
• Sapphire glass protects the camera's optical section.
• 4500mAh battery provides approximately 6–8 hours of operation.
• Cable reel makes the 20m cable easier to manage and transport.
• Adjustable guide helps centre the camera inside the pipe.

• 20m cable length: a different system may be required for longer inspection distances.
• Φ23mm camera diameter: the camera may not fit into very narrow pipes.
• The camera head is not designed to remove blockages: the system is intended for visual inspection, not mechanical cleaning.
• IP68 applies to the camera: the monitor and other electronics must not be considered suitable for immersion in water.

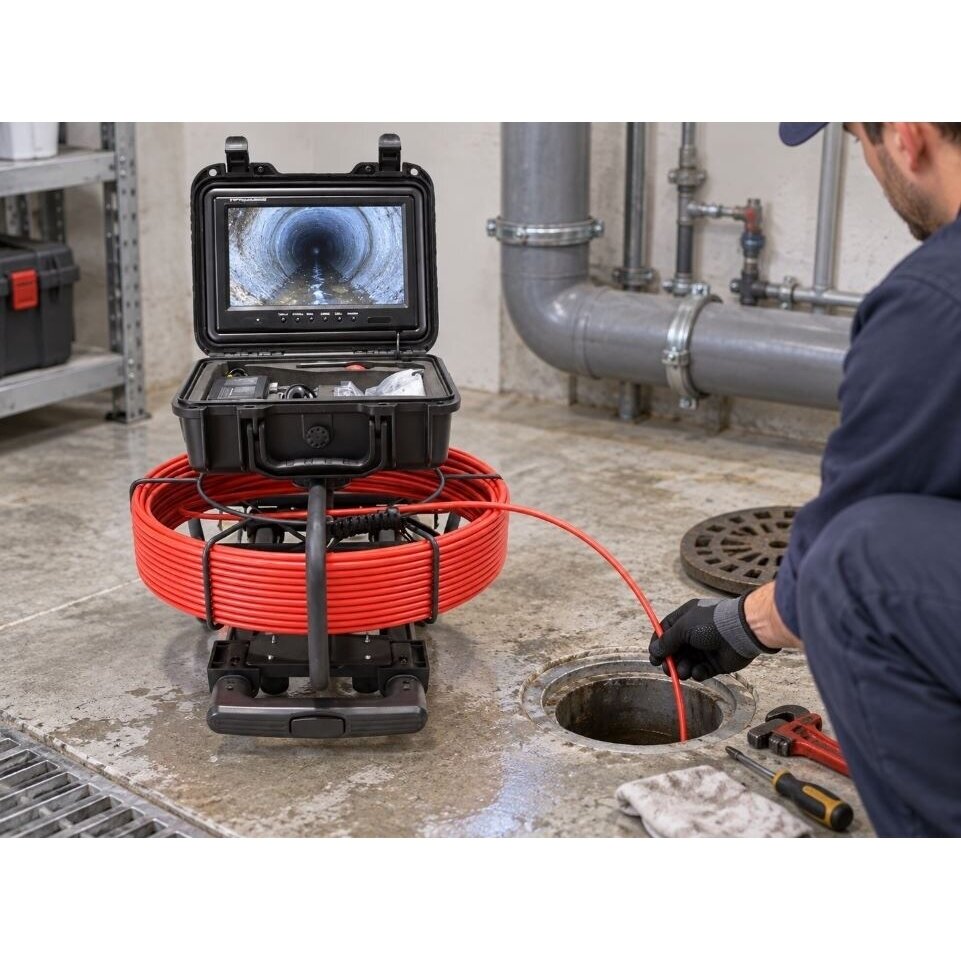

A building's sewer pipe becomes periodically blocked, but the exact location of the problem is unknown. The Φ23mm 1080P camera is inserted into the pipe while the 20m cable is gradually unwound from the reel. The operator monitors the inside of the pipe in real time on the 9" IPS display and adjusts the LED illumination according to visibility conditions. Once accumulated deposits, a foreign object, pipe deformation or other visible damage is detected, the problematic area can be identified more accurately and further cleaning or repair work can be planned.

This set uses a 1080P camera.

The camera head measures Φ23x120mm.

The inspection cable is 20m long.

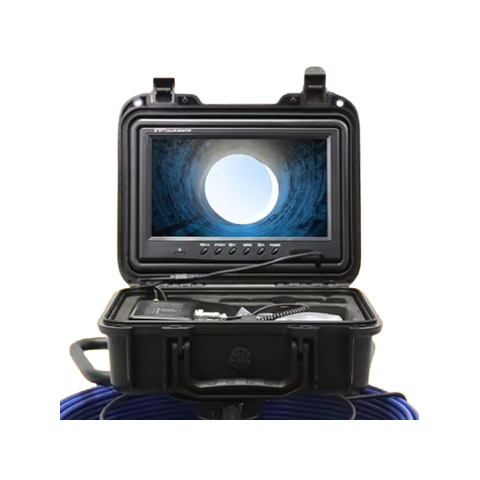

The system has a 9" IPS monitor.

The monitor resolution is 1000x600 pixels.

The camera viewing angle is 120°.

Yes. The camera head has 12 white LEDs with adjustable brightness.

The camera head has an IP68 protection rating. The monitor and other system electronics must be protected from water.

The 4500mAh battery allows the system to operate for approximately 6–8 hours.

The camera housing is made of SUS304 stainless steel, while the optical section is protected by sapphire glass.

Yes. The 20m inspection cable is used with the cable reel included in the set.

Yes. An adjustable camera guide is included in the set.

Before inserting the camera into a pipeline, make sure that the Φ23mm camera head and adjustable guide physically fit inside the pipe being inspected and can pass through its bends. Do not force the camera or cable through obstructions, as excessive force may damage the camera, cable or connectors. After operation in a wet or contaminated system, it is recommended to clean and dry the camera head and cable. The IP68 protection rating applies to the camera head; therefore, the 9" monitor, battery, charger and other electronic equipment must be protected from water.
