Modular | digital electric energy voltmeter | ammeter | 2P | 50–500VAC | 1–100A | DIN

Technical Specifications:

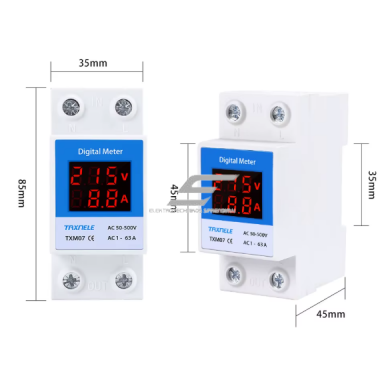

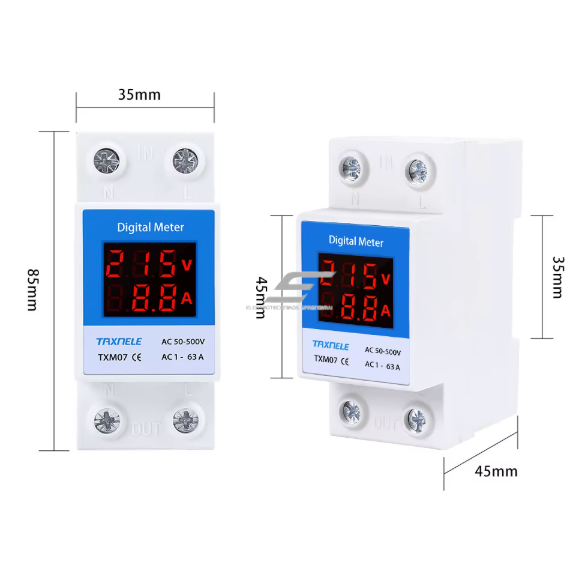

Dimensions: 87 x 37 x 64 mm

Mounting: DIN rail (35 mm)

Voltage measurement range: AC 50–500 V

Current measurement range: 1–100 A (with external CT)

Accuracy: ±1% (±2 digits)

Power consumption: <2 W

Display: LCD screen with dual voltage and current indication

Resolution: 1 V

Update rate: 1 time per second

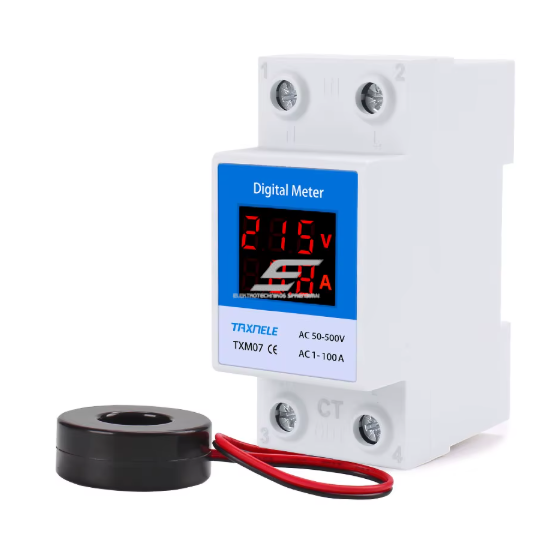

CT: External, easily connectable

Features:
Displays voltage (V) and current (A) in real-time on a single screen

Compact size – saves space in electrical distribution panels

Suitable for both single-phase home systems and industrial installations

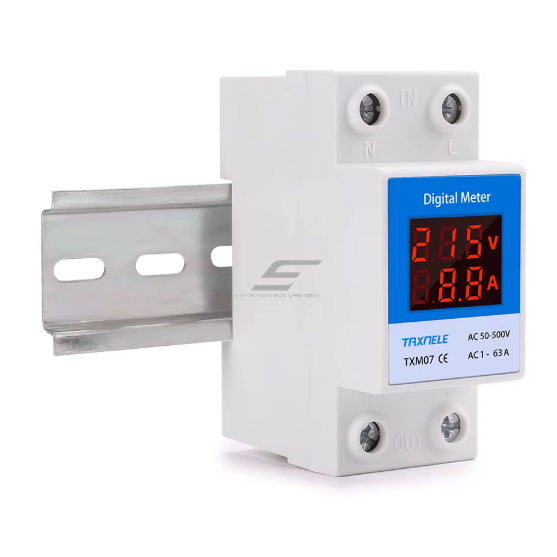

Simple DIN rail installation

High measurement accuracy and reliability

External CT allows high current measurement without direct wiring

Applications:
Monitoring of residential and industrial electrical installations

Panel maintenance and diagnostics

Protection systems against overvoltage or overload

Pros:
Clear LCD screen with dual display

Can measure up to 100 A via CT, ensuring safe installation

Suitable for both professionals and home users

Easy installation without special tools

Low energy consumption

Cons:
Not suitable for use with direct current (DC)

No energy (kWh) measurement function

Single-phase – not suitable for three-phase systems without additional equipment

The digital voltmeter-ammeter is an excellent choice for anyone looking to efficiently monitor the status of their electrical network at home or in industrial settings. With reliable performance, accurate readings, and easy installation, this device serves as a universal solution for load monitoring. It helps detect voltage fluctuations or current overloads in time, protecting your equipment and reducing electricity costs.
