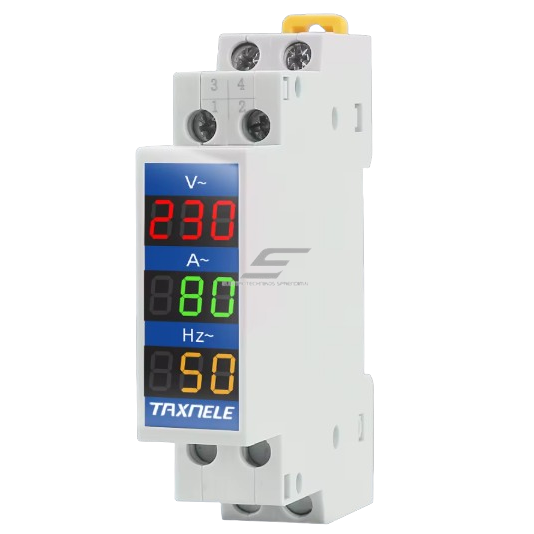

Modular | Digital electrical energy voltmeter | ammeter | frequency indicator | 80-500VAC | 0-100A | 25-75Hz | DIN
Code: ES-TX-VAHZA universal device designed for measuring voltage (V), current (A), and frequency (Hz) in both residential and industrial electrical systems. Thanks to precise measurements, clear LED indication, and quick installation, it is an excellent choice for installers, engineers, and even home users who wish to monitor electrical network parameters in real time.
-
Technical Specifications:
Mounting: DIN rail (18 mm width)
Measurement Parameters: Voltage (V), Current (A), Frequency (Hz)
Voltage Range: AC 80–500V (suitable for 220V / 380V systems)
Current Range: 0–100 A
Frequency: 25–75 Hz
Accuracy: ±1% (±2 digits)

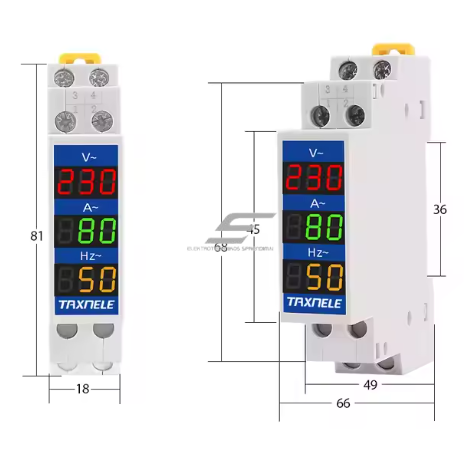

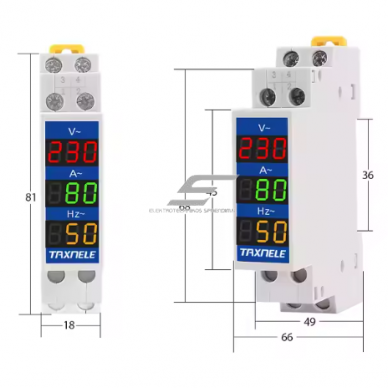

Dimensions: 18 × 81 × 66 mm
Weight: ~100 g
Display: LED digital indicator
Housing Material: High-quality plastic
Operating Temperature: -10 °C to +50 °C
Features:
Measurement of three main electrical parameters
Clear LED display – easy to read even in low light
Suitable for both single-phase (220V) and three-phase (380V) systems
Compact – fits even in densely packed panels or distribution boxes
Accurate and reliable even under varying loads or voltage fluctuations
Applications:
Electrical distribution panels
Home, household, workshop electrical inputs
Control of electrical flow in industrial or commercial equipment
Monitoring and diagnostics of energy efficiency
Advantages:
Wide measurement range
Accurate measurements (1% accuracy class)
Compact (only 18 mm width)
Quick installation on DIN rail
Clear indication on LED display
Suitable for both professionals and regular users
Disadvantages:
No data logging or remote monitoring (no Modbus/WiFi)
Not intended for direct current (DC)
Description:
This modular voltage, current, and frequency meter is a smart, simple, and reliable tool for real-time electrical monitoring, ideal for both professional installations and household use.
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
