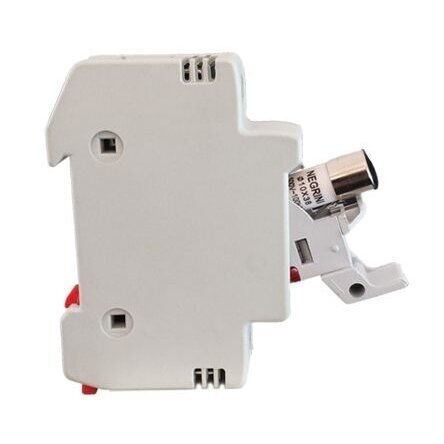

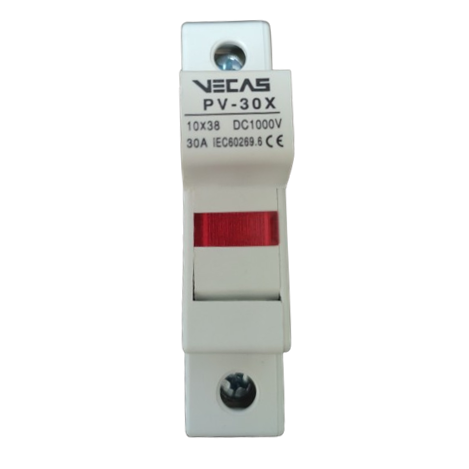

Modular fuse switch disconnector holder | block for solar power plants | 1P | 30A | 1000VDC | 10x38mm | DIN | PV-30X VECAS
Code: PV-30XThe VECAS PV-30X series fuse holder is designed to protect photovoltaic (PV) system circuits from short circuits and overload currents. It is suitable for use in DC networks up to 1000V voltage and up to 30A current. This holder is ideal for solar power distribution boxes and the protection of photovoltaic power generation equipment. Its compact design, easy DIN rail mounting, and reliable operation even in harsh environmental conditions ensure a high level of safety and reliability.
-
Technical Specifications:
Model: PV-30X
Rated Operating Current: 30A
Conventional Thermal Current: 30A
Rated Insulation Voltage (Ui): 1000V DC
Utilization Category: DC-20B
Rated Impulse Withstand Voltage (Uimp): 6 kV
Max. Short-Circuit Breaking Capacity (Icu): 20 kA
Number of Poles: 1P
Fuse Size: 10x38 mm
Mounting: DIN Rail
Housing: High temperature and flame-resistant plastic (UL94-V0)
Temperature Range: -20°C to +70°CFunctions:
Protection against short circuits and overload currents
Designed for photovoltaic (PV) systems and DC distribution networks
Convenient and fast fuse replacement
High resistance to shocks and vibrations
Strong and safe DIN rail mounting
Applications:
Solar power plants (PV systems)
Solar energy distribution boxes (PV combiner boxes)
Photovoltaic power generation equipment
Semiconductor device protection
Industrial DC systems
Advantages:
High operating voltage up to 1000V DC
High short-circuit breaking capacity – up to 20 kA
Easy and fast DIN rail installation
Suitable for harsh environmental conditions
Disadvantages:
For DC circuits only – not suitable for AC networks
No integrated visual fuse status indicator
Single-pole – limited application in more complex circuits
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
