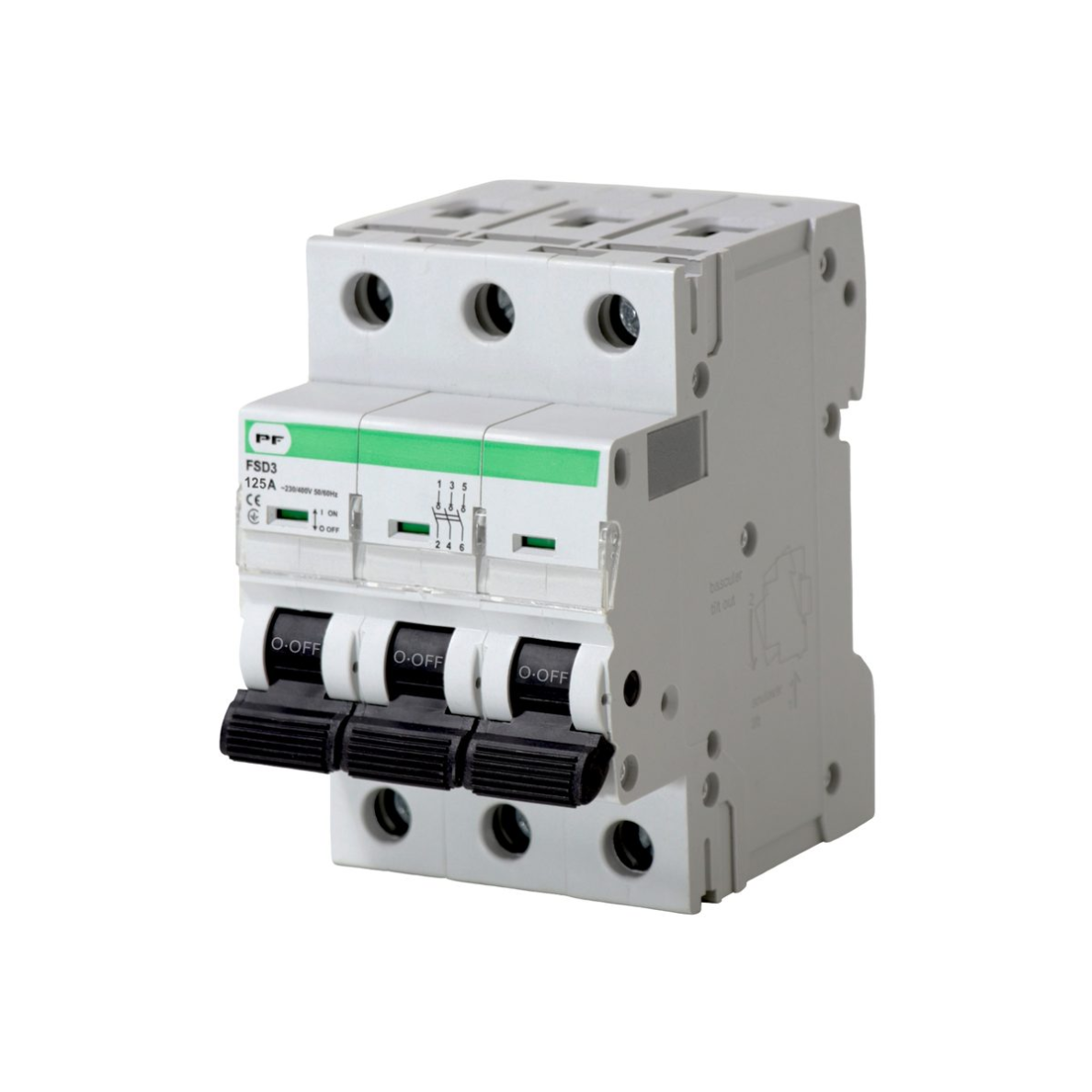

Modular switch disconnector 3P | 125A | EVO FSD3 Promfactor Baltic FSD33125
Code: FSD33125Modular switch disconnector FSD3, designed for disconnecting and switching electrical circuits, but without protective functions. It is used where reliable and quick control of power supply to individual circuits is required.
This switch disconnector complies with IEC 60947-3 standard and is suitable for use in residential, commercial, or administrative premises. The modular design ensures easy installation on a 35 mm DIN rail, while the robust mechanism guarantees durability.
-
Technical Data:
Number of poles: 3
Rated current (Ie): 125A
Rated voltage (Ue): ~230/400 V
Frequency: 50/60 Hz
Insulation voltage (Ui): 500 V
Impulse voltage (Uimp): 6,000 V
Terminal size for cable: up to 50 mm²
Durability (electrical/mechanical): 10,000/20,000 cycles
Protection degree: IP20
Utilization category: AC-22
Screw tightening torque: 3 Nm
Mounting: 35 mm DIN rail (35x7.5 mm)
Busbar connection: Yes
Additional equipment connection: No
Operating temperature range: -22...+55 °C
Storage temperature: -25...+70 °C
Application:Administrative buildings
Commercial facilities
Civil construction
Electrical cabinets requiring simple operational disconnection
Advantages:Reliable power supply management
Long mechanical and electrical lifespan
Easy installation on a standard DIN rail
Resistant to temperature fluctuations (-22 °C to +55 °C)
Disadvantages:No protective functions (no overload or short-circuit protection)
IP20 protection class – unsuitable for humid or dusty environments
The FSD3 modular isolator is an excellent solution for operational circuit control. However, if protection against overloads or short circuits is required, it is recommended to use it in conjunction with circuit breakers or fuses.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
