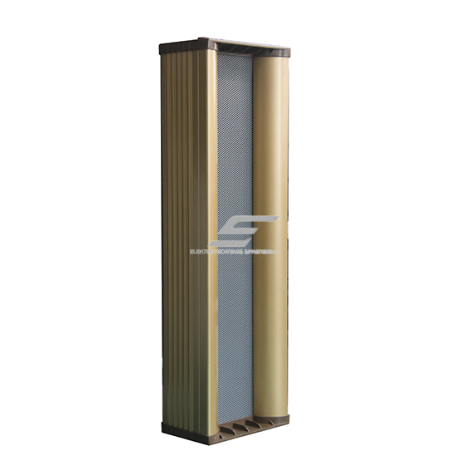

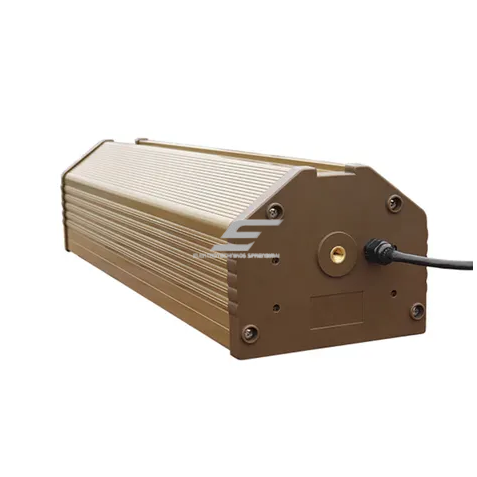

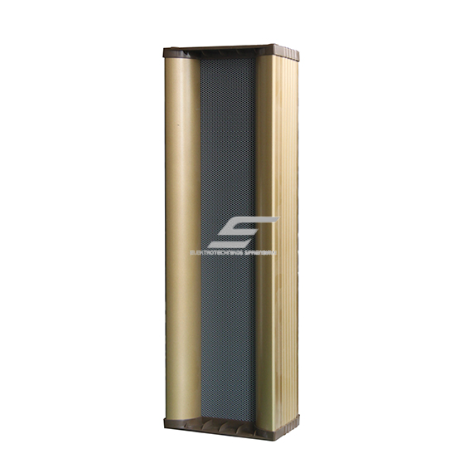

Network speaker with integrated amplifier | for indoor and outdoor installations | 30W | TCP/IP network | 3×4" low-frequency + 1×2.5" high-frequency speakers
Code: MAG6368A network audio speaker with an integrated amplifier, designed for professional and semi-professional audio broadcasting systems. The speaker operates over a TCP/IP network, supports a fully digital analog-to-digital and digital-to-analog (AD/DA) architecture, and enables remote audio streaming directly via a local or centralized network.
Thanks to its high sound quality, reliable operation across a wide temperature range, and the ability to be installed anywhere with network access, this speaker is suitable for outdoor areas, industrial facilities, public spaces, commercial buildings, and engineering solutions.
-
Technical specifications
Type: Outdoor network audio speaker
Network protocol: TCP/IP
Audio processing: Fully digital (AD/DA)
Mounting: Fixed installation (outdoor / indoor)
Speakers: 3x4" woofer + 1x2.5" tweeter
Sensitivity: 91 ±2 dB
Max. sound pressure level (SPL, 1 m): 106 ±2 dB
Frequency response: 140 Hz – 14 kHz
Rated power (RMS): 30 W
System: NET Play (network playback)
Integrated amplifier: Yes
Amplifier frequency range: 20 Hz – 16 kHz (±3 dB)
Total harmonic distortion (THD): ≤ 0.5%
Signal-to-noise ratio (SNR): ≥ 77 dB
Power supply: AC 220 V / 50 Hz
Operating temperature: -40 °C ~ +70 °C
Dimensions: 510 × 150 × 125 mm
Net weight: 3.6 kg
Gross weight: 5.1 kgFunctions
Direct audio streaming over IP network – no analog audio lines required
Remote control via a central audio server or control system
High-resolution sound thanks to digital signal processing
Integrated amplifier – easier installation, fewer additional devices
Suitable for outdoor use – resistant to environmental impact and temperature fluctuations
Modular network architecture – easy system expansionApplications
For home users: Ideal for yards, terraces, garden areas, small events, sports or leisure zones
For engineers / designers: Fast installation without complex audio cabling, integration into existing IP infrastructures, centralized control, reduced installation costs
For electricians / installers: Public address (PA) and evacuation systems, industrial facilities, logistics centers, factories, urban infrastructure, parks, stations, squaresAdvantages
Operates over TCP/IP network – modern and flexible solution
Integrated amplifier – less additional equipment required
Reliable operation in extreme temperatures (-40…+70 °C)
Good sound quality and high SPL
Suitable for both indoor and outdoor installations
Easily expandable network systemDisadvantages
Requires network infrastructure (LAN / IP)
Not suitable for mobile or temporary installations
Designed more for system audio than hi-fi music listeningIllustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.The IP protection class indicates the device's resistance to environmental factors.

The first digit indicates protection against dust and solid objects.
The second digit indicates protection against moisture.First digit values:
X — Untested;
0 — No protection;
1 — Protected against solid objects larger than 50 mm;
2 — Protected against solid objects larger than 12.5 mm;
3 — Protected against solid objects larger than 1 mm;
4 — Protected against solid objects larger than 1 mm;
5 — Dust protected;
6 — Totally dustproof.
Second digit values:X — Untested;
0 — No protection;
1 — Protected against vertically falling water drops;
2 — Protected against water drops falling at a 15º angle;
3 — Protected against rain falling at a 60º angle;
4 — Protected against water splashes;
5 — Protected against water jets;
6 — Protected against large amounts of water;
7 — Protected against short-term immersion in water up to 1 meter deep;
8 — Protected against long-term immersion in water up to 3 meters deep.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
