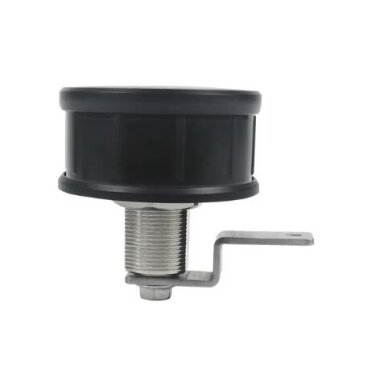

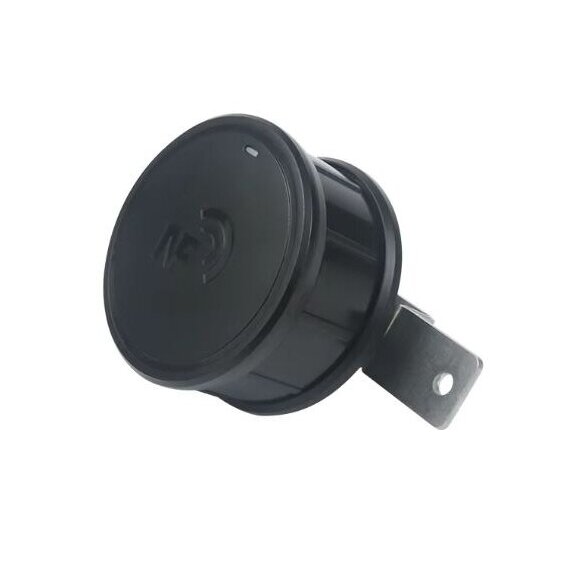

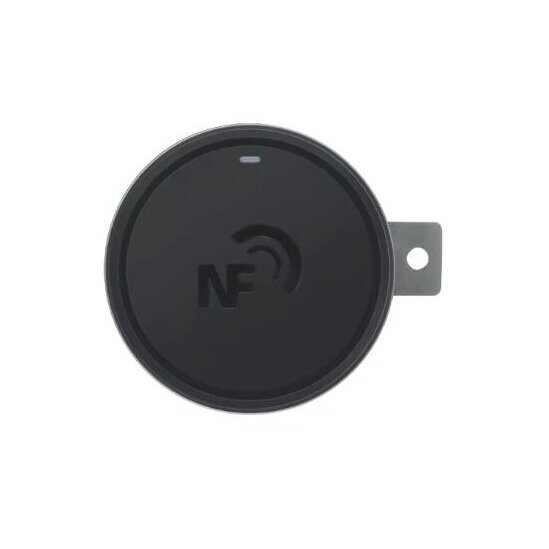

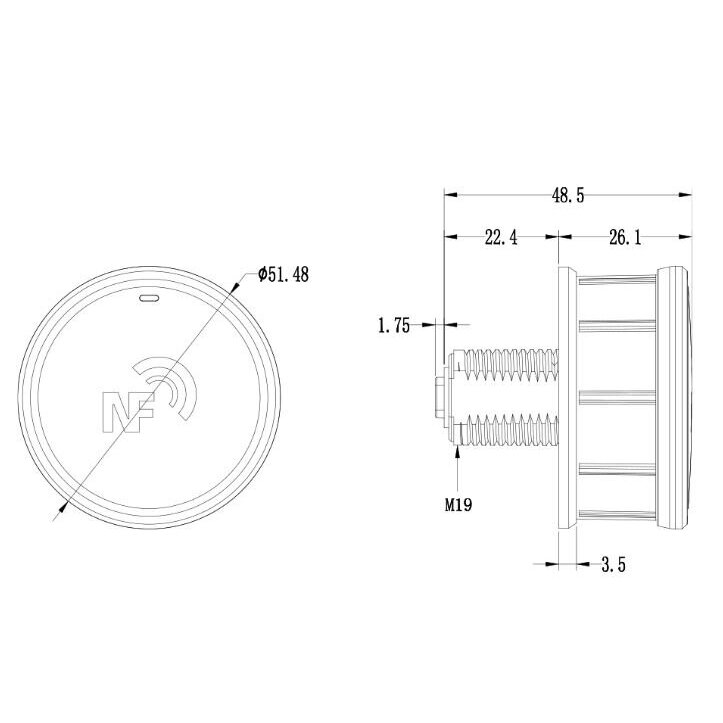

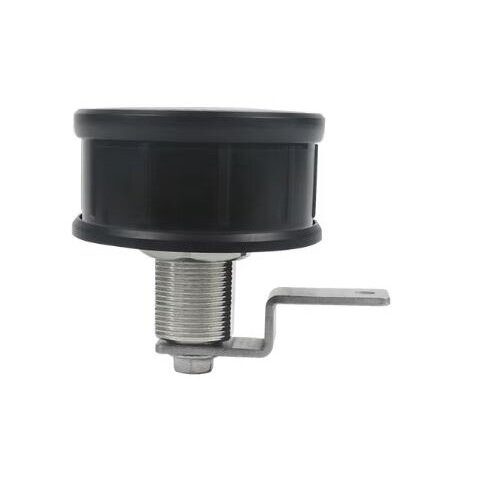

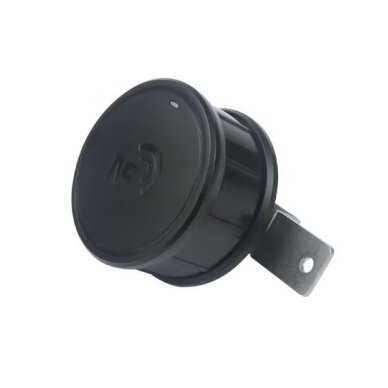

Smart cabinet lock | NFC unlocking | Φ51.48x48.5mm | black

Smart NFC Cabinet Lock without Battery | phone as key and power source | for doors ≤16 mm | black

Passive smart NFC cabinet lock without an internal battery, designed for mailboxes, office drawers, school and gym lockers, storage cabinets and other similar locking applications. Unlocking is performed using an NFC-enabled smartphone, which transmits both access authorization and the energy required for operation to the lock via NFC.

There is no battery inside the lock, so there is no need to charge it or replace a power cell. During unlocking, the phone is brought within less than 1 cm of the NFC zone, and the lock receives power and verifies the user's access permission via NFC.

There is no battery inside the lock and no separate power supply is required. During unlocking, energy is transferred from an NFC-enabled smartphone, so the lock does not need to be charged or periodically maintained for power.

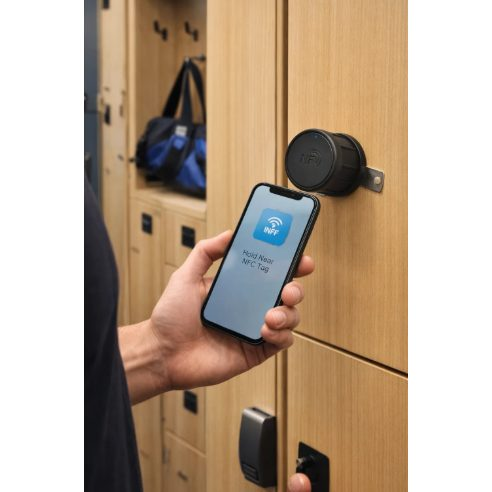

For unlocking, the phone is held less than 1 cm from the lock's NFC zone. Unlocking response time is approximately 2–4 seconds.

• The administrator can grant a user permission to use the lock.
• User access rights can be managed.
• An access period can be set.
• An authorized user can unlock the lock using their NFC-enabled smartphone.

The application allows viewing lock and unlock records as well as the lock's usage status.

• There is no battery inside the lock.
• No charging is required.
• No battery replacement is required.
• No separate power cable is required.
• The lock is powered by the smartphone during NFC unlocking.

NFC is a Near Field Communication technology. During unlocking, the phone is held very close to the lock, at a distance of less than 1 cm. Both energy and authorization information are transmitted through this connection.

• NFC unlocking by smartphone.
• NFC reverse power supply from smartphone.
• No battery inside the lock.
• No charging required.
• No periodic battery maintenance required.
• Access rights management.
• User authorization.
• Access period setting.
• Viewing lock and unlock records.
• Suitable for doors up to 16 mm thick.
• Unlocking distance less than 1 cm.
• Unlocking response time approx. 2–4 s.

• Mailboxes.
• Office drawers.
• Office cabinets.
• School lockers.
• Gym lockers.
• Storage cabinets.
• Other doors up to 16 mm thick.

• Before installation, check the door thickness – it must not exceed 16 mm.
• Use an NFC-enabled smartphone for NFC unlocking.
• During unlocking, hold the phone less than 1 cm from the NFC zone.
• Access rights must be granted in the application.
• The lock does not need to be charged and contains no battery.

Smart NFC Cabinet Lock | battery-free | for doors ≤16 mm

Passive smart cabinet lock without an internal battery, unlocked using an NFC-enabled smartphone. Through NFC, the phone transmits both energy and access authorization to the lock. Suitable for doors up to 16 mm thick, with an unlocking distance of less than 1 cm and a response time of approximately 2–4 seconds.
