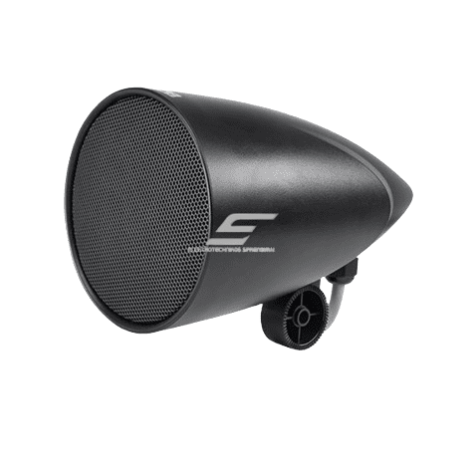

Outdoor loudspeaker | directional outdoor sound | 70/100V | 20W | quick installation with ground spike | compact and lightweight
Code: DSP310Outdoor speaker designed for background music and announcements in open areas. Thanks to the 70V/100V line system, this speaker is suitable for larger outdoor sound installations where multiple speakers need to be connected on a single line while maintaining stable sound quality over long cable distances.
The speaker features directional sound coverage, a well-balanced frequency range, and a compact design. The integrated spike-type stand allows quick and secure installation in grass, flowerbeds, or green areas without the need for additional mounting structures.
-
Technical specifications
Manufacturer: DSPPA
Model: DSP310
Type: Outdoor garden speaker
Power: 20W
Input voltage: 70V / 100V line system
Frequency range: 180 Hz – 20 kHz
Sensitivity: 86 ± 2 dB
Maximum SPL: 96 ± 2 dB
Dimensions: Ø100 × 172 mm
Weight: 0.8 kg

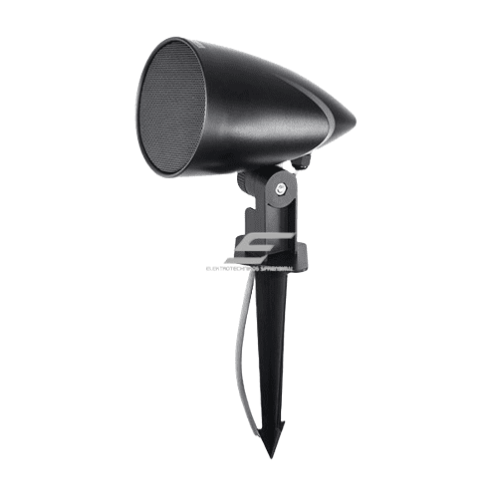

Mounting: Ground mounting with spike
Application: Outdoor areas, gardens, parks, pathways, terracesFunctions
70V / 100V outdoor audio system allows coverage of large areas with a unified system, parallel connection of multiple speakers, and stable sound over long cable distances
Directional outdoor sound design enables sound to be focused on a specific area (pathways, flowerbeds, terraces), reducing noise dispersion into the surroundings
Compact and lightweight enclosure allows easy repositioning and adjustment of speaker orientation as needed
Quick installation using a ground spike – the speaker is simply inserted into the ground without concreting, brackets, or complex installation work
Usage
Home users: Private gardens and yards, terraces, pathways, flowerbeds, outdoor background music
Engineers / system integrators: Public parks, hotel and SPA outdoor areas, resorts, recreational zones, theme parks
Electricians: Fast installation, low weight, simple wiring, easy system operation and expansion
Pros
Ideal for outdoor use in gardens and parks
70V/100V professional line system
Quick installation with ground spike
Lightweight and compact (0.8 kg)
Directional sound improves efficiency
Cons
20W power – intended for background sound, not for concerts
No IP rating specified (recommended to install in protected locations)
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.The IP protection class indicates the device's resistance to environmental factors.

The first digit indicates protection against dust and solid objects.
The second digit indicates protection against moisture.First digit values:
X — Untested;
0 — No protection;
1 — Protected against solid objects larger than 50 mm;
2 — Protected against solid objects larger than 12.5 mm;
3 — Protected against solid objects larger than 1 mm;
4 — Protected against solid objects larger than 1 mm;
5 — Dust protected;
6 — Totally dustproof.
Second digit values:X — Untested;
0 — No protection;
1 — Protected against vertically falling water drops;
2 — Protected against water drops falling at a 15º angle;
3 — Protected against rain falling at a 60º angle;
4 — Protected against water splashes;
5 — Protected against water jets;
6 — Protected against large amounts of water;
7 — Protected against short-term immersion in water up to 1 meter deep;
8 — Protected against long-term immersion in water up to 3 meters deep.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
