  •   Panel | Digital Multimeter | with 3 Current Transformers (CT) | Current | Voltage | Frequency Meter | 3F | 10-250A | 1-500VAC
      Panel | Digital Multimeter | with 3 Current Transformers (CT) | Current | Voltage | Frequency Meter | 3F | 10-250A | 1-500VAC 1
      Panel | Digital Multimeter | with 3 Current Transformers (CT) | Current | Voltage | Frequency Meter | 3F | 10-250A | 1-500VAC 2

    Panel | Digital Multimeter | with 3 Current Transformers (CT) | Current | Voltage | Frequency Meter | 3F | 10-250A | 1-500VAC

    Code: ES-SEM-250D
    Inquire about this item
    Price 67.31 € VAT incl.
    ( 55.63 € VAT excl. )
    Want another price? Suggest yours!

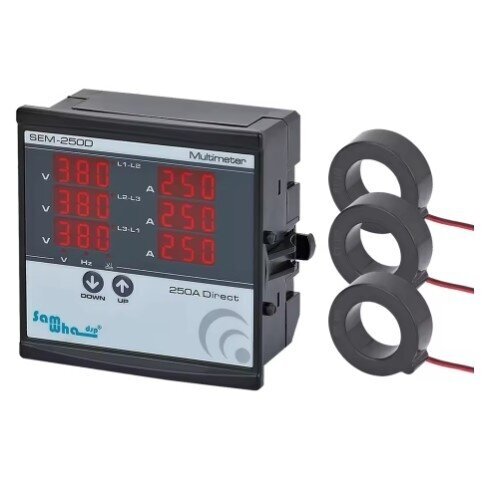

    This digital three-phase multimeter is designed to measure the values of three-phase current, voltage, and frequency. The device has three current transformers (10-250 A), which allow accurate measurement of current and phase voltages (L-L and L-N). The multimeter automatically displays current values without any additional settings, simply by connecting the current transformer. Additionally, the device also shows the phase sequence, which allows checking whether the phase sequence is correct.

  • Product description

    Technical Specifications:

    Operating Voltage (Un): 140V - 270V AC
    Operating Frequency: 50/60 Hz
    Operating Power: <6 VA
    Operating Temperature: -20°C...+55°C
    Voltage Measurement Range: 1V - 500V AC
    Measurement Range (Current): 10-250A
    Measurement Accuracy: ±1%
    Display: 6-digit display + 9 LED indicators
    Connection Type: Plug-in terminals
    Cable Diameter: 1.5 mm²

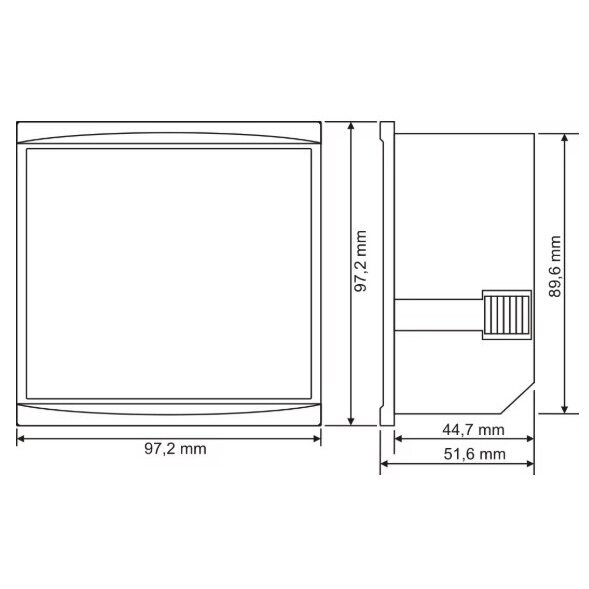

    Installation: Panel mount
    Functions:

    Three-phase Measurements: Ability to measure three-phase voltage (L-L, L-N) and current values.
    Phase Sequence Detection: If the phase sequence is incorrect, the LED indicator shows an error.
    Frequency Measurement: The device measures phase frequency and displays values with corresponding LED indicators.
    Automatic Current Display: Current values are automatically displayed using three current transformers.
    LED Indication: Voltage (V) and frequency (Hz) measurements are displayed with LED indicators.
    Protection Functions: Safe operation without risk in case of incorrect connection configuration.
    Usage:

    Industry: Designed for industrial purposes where accurate measurement of three-phase voltage and current is needed.
    Electrical Installations: Suitable for use in standard electrical installations where phase sequence and voltages need to be monitored.
    Automated System Installation: Used in integrating automated systems where current and voltage parameters need to be measured.
    Gear and Electrical Equipment Maintenance: Used for the maintenance and diagnostics of electrical equipment to prevent failures.
    Pros:

    Accuracy: High measurement accuracy with ±1% tolerance.
    Versatility: Suitable for various industries and installations.
    Ease of Use: Automatic current and voltage measurement.
    Comprehensive Measurement: Ability to measure three-phase voltage, current, and frequency parameters.
    Comprehensive Phase Sequence Protection: Allows checking if the phase sequence is correct, protecting equipment from errors.
    Cons:

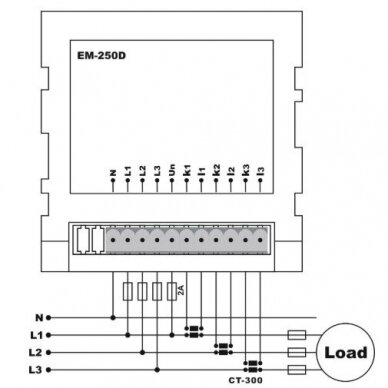

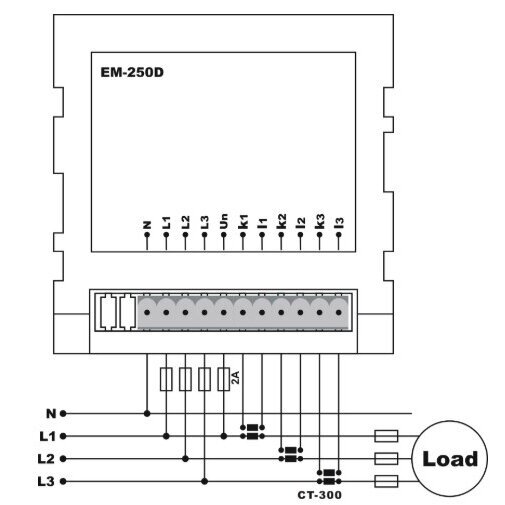

    Risk of Incorrect Connection: Incorrect wiring may result in inaccurate measurements, so correct installation is essential.
    Limited Measurement Range: While the device can measure up to 250A, measuring higher values is not possible.
    Panel Mounting: A dedicated space in the panel is required to properly install the device.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
