Photoelectric diffuse sensor | 300mm | 50x50x18mm | 10-30VDC | NO/NC | NPN+PNP | M12 | ABS | infrared LED | IP67

Technical Specifications

Detection type: Diffuse reflection
Nominal detection distance: 30 cm (adjustable)
Light source: Infrared LED (850 nm)

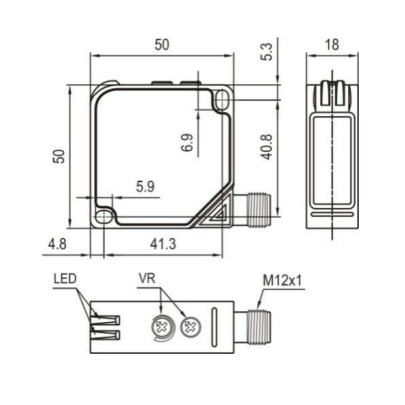

Dimensions: 50x50x18 mm
Detected objects: Opaque objects

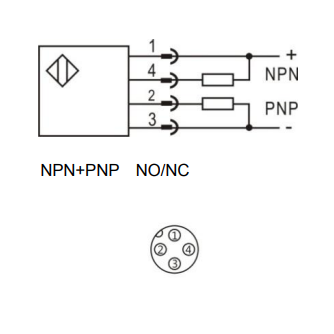

Output type: NPN + PNP, NO/NC (selectable)
Response time: ≤ 2 ms
Repeat accuracy: ≤ 5%
Supply voltage: 10...30 V DC
Current consumption: ≤ 40 mA
Load current: ≤ 200 mA
Residual voltage: ≤ 2.5 V
Protection functions: Short-circuit, overload, and reverse polarity protection
Indicators: Green LED – power status / Yellow LED – output status
Ambient temperature: -25…+55 °C
Ambient humidity: 35–85 % RH (non-condensing)
Hysteresis range: 3…20 % Sn
Vibration resistance: 10…50 Hz (0.5 mm amplitude)
Insulation resistance: ≥ 50 MΩ (500 VDC)
Dielectric strength: 1000V AC (50/60 Hz, 60 s)
Protection class: IP67
Housing: PC/ABS plastic
Connection: M12

Functions and Operating Principle

Diffuse reflection principle: the sensor detects light reflected from an object without using a separate reflector – simple and quick for automation applications.
Adjustable detection distance: allows precise setup for specific working conditions.
Dual output (NPN + PNP): universal connection to various control systems.
High resistance to electromagnetic interference: stable operation near powerful equipment.
IP67 protection: fully resistant to dust, moisture, and mechanical impact.
Fast response time: suitable for detecting moving objects.
LED indication: real-time display of power and output status.

Applications

For home users or hobbyists: Suitable for object detection in workshops or custom automation projects.
For engineers / automation specialists: Ideal for robotics, production lines, conveyors, counting, or positioning systems.
For electricians / technicians: Easy installation due to compact housing; clear LED indicators help quickly determine status and detect faults.

Pros

Adjustable detection distance

Fast response

IP67 protection against dust and moisture

Durable, lightweight PC/ABS housing

Cons

Lower detection accuracy for very dark or matte surfaces

Does not detect completely transparent objects
