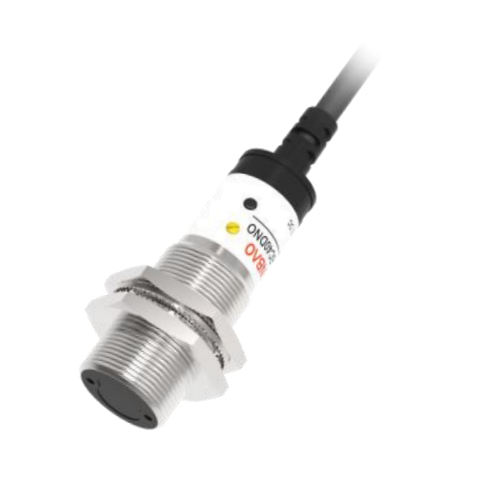

Photoelectric retro-reflective sensor | 3000mm | M18 | 10-30VDC | NO+NC | PNP | 2m cable | nickel-copper housing | infrared LED beam | IP67

Detection type: Retroreflective (with reflector)
Nominal distance (Sn): 3 m (non-adjustable)
Light source: Infrared LED (880 nm)
Object detection: Opaque objects
Power supply: 10–30 V DC
Output type: PNP, NO+NC
Operating current: ≤25 mA
Output current: ≤200 mA
Residual voltage: ≤2.5 V
Response time: <8.2 ms
Accuracy: Repeatability error ≤5%
Ambient temperature: -15°C … +55°C
Humidity: 35–85% RH (non-condensing)
Protection: Short-circuit, overload, and polarity reversal protection
Housing material: Nickel-copper alloy

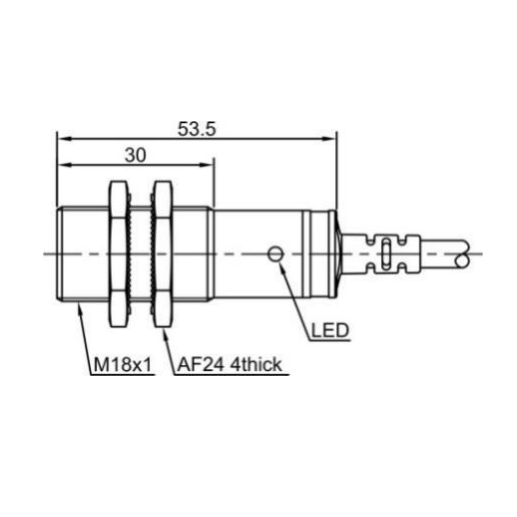

Dimensions: M18 × 53.5 mm
Connection: 2 m PVC cable
Protection class: IP67
Vibration resistance: 10–50 Hz (0.5 mm)
Dielectric strength: 1000V AC, 50/60Hz (60 s)
Insulation resistance: ≥50 MΩ (500V DC)
Output indication: Yellow LED

Main functions:

The retroreflective sensor uses a single optical unit for both light emission and reception.
The infrared beam reflects off a special reflector (TD-09), and when an object interrupts the beam, the sensor activates the output signal.
This principle allows object detection from a distance without direct contact, ensuring reliable operation even under ambient light, dust, or vapor conditions.

Applications:

For home users: Suitable for metal detection in workshops or DIY automation projects.
For engineers/automation specialists: Commonly used in factories, conveyors, packaging, transport, sorting systems, robotics, and CNC equipment. Suitable for detecting metal, plastic, cardboard, glass, or other opaque objects.
For electricians/technicians: Easily connects to PLCs, relays, or automation systems. IP67 protection ensures safe use in humid or dusty environments.

Advantages:

High accuracy and fast response

Resistant to environmental disturbances (dust, light, vibration)

IP67 protection – resistant to moisture and dirt

Suitable for industrial systems

Disadvantages:

Requires a reflector (TD-09) – additional component

Not suitable for completely transparent or mirror-like objects
