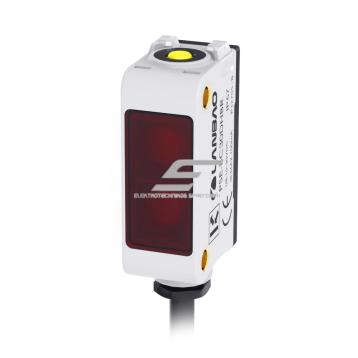

Photoelectric sensor | polarized | 3000 mm | 32,5x20x12mm | 10-30VDC | NO/NC | NPN | 2 m cable | ABS | red light beam | IP67

Technical Specifications

Detection type: Polarized retro-reflective
Nominal sensing distance: 3 m (adjustable)
Light source: Red light (640 nm)

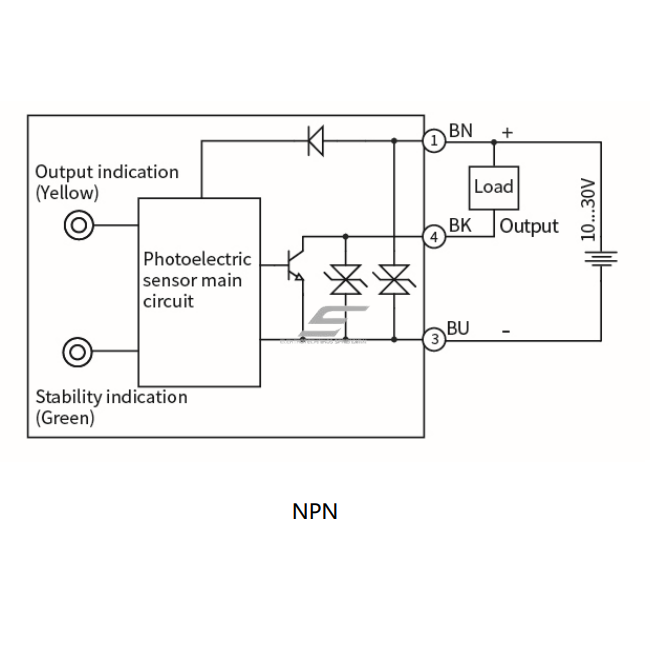

Output type: NPN, NO/NC
Response time: ≤ 1 ms
Power supply voltage: 10…30 V DC
Current consumption: ≤ 25 mA
Load current: ≤ 200 mA
Voltage drop: ≤ 1 V
Protection: Short-circuit, reverse polarity, surge protection
Indicators: Green LED – power status and stable signal; Yellow LED – output signal / overload
Light immunity: Sunlight ≤ 10,000 lux; Lamp light ≤ 3,000 lux
Operating temperature: -20…+55 °C
Storage temperature: -25…+70 °C
Protection rating: IP67
Housing: PC+ABS plastic
Lens: PMMA
Connection: 2 m PVC cable
Distance adjustment – press the button for 2–5 s (green and yellow LEDs blink at 4 Hz)
NO/NC mode switching – press the button for 5–8 s (LED blinks at 2 Hz)
Standards: EN60947-5-2:2012, IEC60947-5-2:2012

Function and Operating Principle
The sensor operates on the polarized retro-reflective principle – the light beam is emitted toward the reflector and the return signal is detected only at a specific polarization angle.
Ensures precise object detection even under strong light or reflective surfaces.
A single-button control allows quick adjustment of detection distance and NO/NC mode switching, providing user-friendly operation.

Application and Use
For home users or hobbyists: Suitable for object detection in workshops or DIY automation projects.
For engineers / automation specialists: Applicable in manufacturing, sorting, packaging, conveyor, and transport systems, as well as robotics applications requiring accurate object position detection.
For electricians / technicians: Easy installation due to compact square housing, with clear LED indicators for quick status and error diagnostics.

Advantages

Compact and durable plastic housing (ABS + PC)

Adjustable detection distance

NO/NC mode switching via single button

Resistant to ambient light interference – works even in sunlight

Fast response time

IP67 protection – dustproof and waterproof

Disadvantages

Requires a reflector for optimal performance

Black or matte surfaces may reduce detection accuracy
