Photoelectric sensor | polarized | 3000 mm | M18 | 10-30VDC | NO/NC | PNP | M12 | nickel-copper housing | red light beam | IP67

Technical specifications:

Detection type: Polarized reflection
Nominal distance (Sn): 3 m (adjustable)
Light source: Red light (640 nm)
Light spot size: 45 × 45 mm (at 1 m)
Power supply: 10–30 V DC

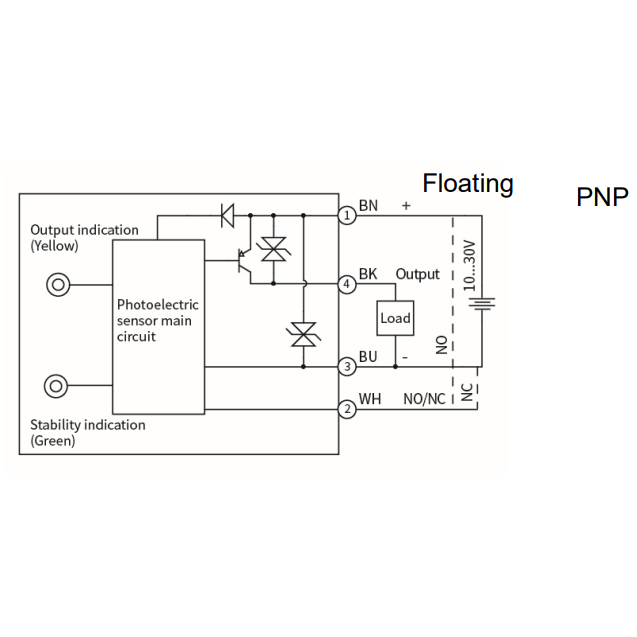

Output type: PNP, NO/NC
Current consumption: ≤20 mA
Output current: ≤200 mA
Voltage drop at output: ≤1 V
Response time: <0.5 ms
Operating temperature: -25°C … +55°C
Storage temperature: -35°C … +70°C
Adjustment: Potentiometer (for distance tuning)
Protection: Short-circuit, overload, and polarity reversal protection
Housing material: Nickel-copper alloy, filter – PMMA

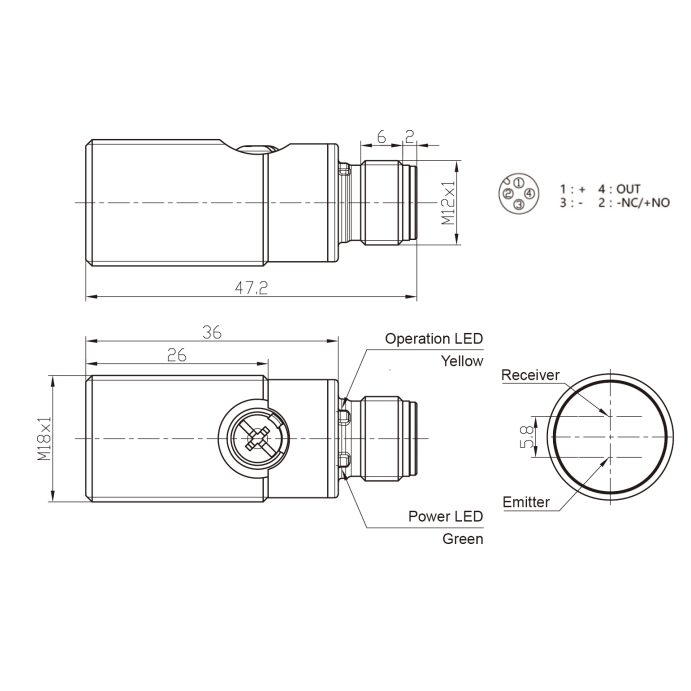

Dimensions: 18 mm cylindrical housing
Connection: M12
Protection class: IP67
Indicators: Green LED – power/stability; Yellow LED – output/short-circuit/overload
Ambient light immunity: up to 10,000 lx (sunlight), up to 3,000 lx (lamp light)
Certification: CE

Main features:
This sensor operates on the principle of polarized reflection – the beam reflects from a special mirror reflector and returns to the receiver only when the beam path is not blocked.
When an object (even shiny or semi-transparent) interrupts the beam, the sensor immediately reacts and sends a signal to the control system (PLC, relay, or other device).
The sensor resists false triggering from reflections and works reliably even under bright ambient light.

Applications:
For home users: Suitable for object detection in workshops or personal automation projects.
For engineers/automation specialists: Used in production lines, packaging systems, conveyors, robotics, or quality control systems.
For electricians/technicians: Easily connects to controllers (PLC), relays, or automation systems. IP67 protection ensures safe use in humid or dusty environments.

Pros:

Detects shiny, semi-transparent, and light-colored objects

Adjustable detection distance

Fast response time

IP67 protection – resistant to moisture, dust, and vibration

360° LED indication – clear status visualization

Cons:

May not be suitable for very dark or matte objects without a reflector
