  •   Photoelectric sensor | polarized | for transparent object detection | 5000mm | 50x50x18mm | 10-30VDC | NO/NC | NPN+PNP | M12 | ABS | red LED beam | IP67
      Photoelectric sensor | polarized | for transparent object detection | 5000mm | 50x50x18mm | 10-30VDC | NO/NC | NPN+PNP | M12 | ABS | red LED beam | IP67 1
      Photoelectric sensor | polarized | for transparent object detection | 5000mm | 50x50x18mm | 10-30VDC | NO/NC | NPN+PNP | M12 | ABS | red LED beam | IP67 2

    Photoelectric sensor | polarized | for transparent object detection | 5000mm | 50x50x18mm | 10-30VDC | NO/NC | NPN+PNP | M12 | ABS | red LED beam | IP67

    Code: PTE-PM5DFB-E2
    Inquire about this item
    Price 71.44 € VAT incl.
    ( 59.04 € VAT excl. )
    Want another price? Suggest yours!

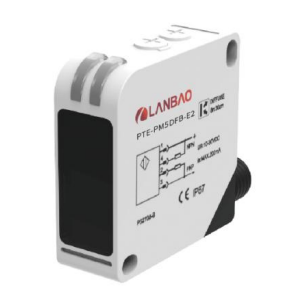

    Photoelectric sensor operating on the polarized reflection principle.
    It features high detection accuracy, resistance to environmental interference, and the ability to reliably detect transparent, semi-transparent, and reflective objects.

    With adjustable detection distance and integrated NPN+PNP output (NO/NC mode switchable via potentiometer), this model is suitable for both general automation systems and specialized production lines.

    Made of durable PC/ABS plastic with IP67 protection against dust and moisture, it ensures long-term operation even in harsh industrial environments.

  • Product description

    Technical specifications

    Detection type: Polarized reflection
    Nominal detection distance: 5 m (adjustable)
    Light source: Red LED (650 nm)

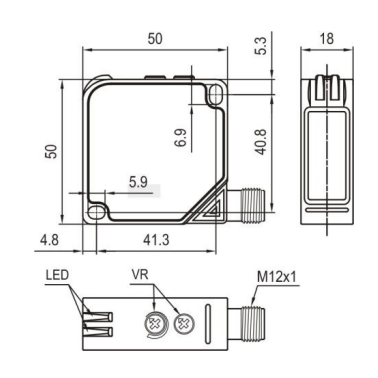

    Dimensions: 50×50×18 mm
    Detectable objects: Transparent, semi-transparent, and opaque

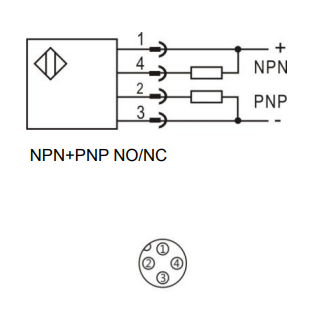

    Output type: NPN + PNP, NO/NC (selectable via L/D potentiometer)
    Response time: ≤ 2 ms
    Repeat accuracy: ≤ 5%
    Supply voltage: 10...30 V DC
    Current consumption: ≤ 40 mA
    Load current: ≤ 200 mA
    Residual voltage: ≤ 2.5 V
    Protection functions: Short-circuit, overload, and reverse polarity protection
    Indicator: Yellow LED – output status
    Ambient temperature: -25…+55 °C
    Ambient humidity: 35–85% RH (non-condensing)
    Vibration resistance: 10…50 Hz (0.5 mm amplitude)
    Insulation resistance: ≥ 50 MΩ (500 VDC)
    Dielectric strength: 1000V AC (50/60 Hz, 60 s)
    Protection rating: IP67
    Housing: PC/ABS plastic
    Connection: M12

    Functions and operating principle

    Polarized reflection principle – differentiates between direct and mirror reflections, enabling accurate detection of shiny or transparent objects.

    Adjustable detection distance – allows flexibility in different applications.

    Visible red light beam – simplifies alignment.

    Dual output (NPN + PNP) – suitable for any control circuit or PLC system.

    Integrated protection – short-circuit and overload protection ensures long service life.

    Compact design – ideal for installation in limited spaces.

    Application

    For home users or craftsmen: Suitable for detecting objects in workshops or custom automation projects.
    For engineers / automation specialists: Ideal for robotics, production lines, conveyors, counting or positioning systems.
    For electricians / technicians: Easy installation due to compact size; LED indicators simplify status monitoring and troubleshooting.

    Pros

    Detects transparent, semi-transparent, and reflective objects

    Adjustable range – universal use

    Fast response

    IP67 protection – suitable for industrial environments

    Cons

    Not recommended for use in environments with very strong sunlight

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
