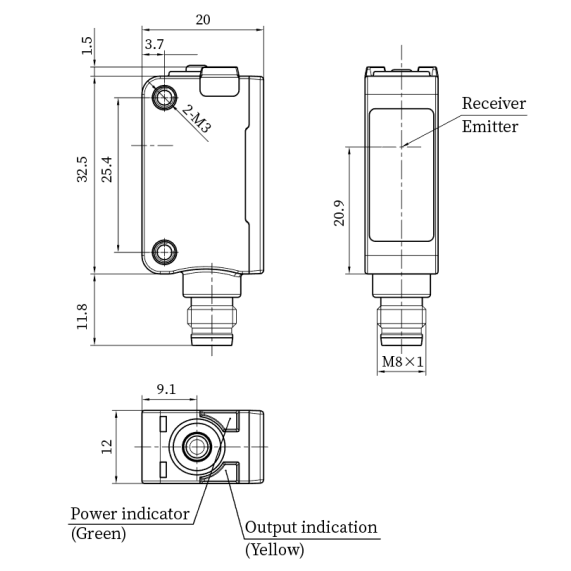

  •   Photoelectric sensor | polarized | for transparent object detection | 500mm | 32,5x20x12mm | 10-30VDC | NO/NC | PNP | M8 | ABS | blue light beam | IP67
      Photoelectric sensor | polarized | for transparent object detection | 500mm | 32,5x20x12mm | 10-30VDC | NO/NC | PNP | M8 | ABS | blue light beam | IP67 1
      Photoelectric sensor | polarized | for transparent object detection | 500mm | 32,5x20x12mm | 10-30VDC | NO/NC | PNP | M8 | ABS | blue light beam | IP67 2

    Photoelectric sensor | polarized | for transparent object detection | 500mm | 32,5x20x12mm | 10-30VDC | NO/NC | PNP | M8 | ABS | blue light beam | IP67

    Code: PSE-GC50DPBB-E3
    Inquire about this item
    Price 94.57 € VAT incl.
    ( 78.16 € VAT excl. )
    Want another price? Suggest yours!

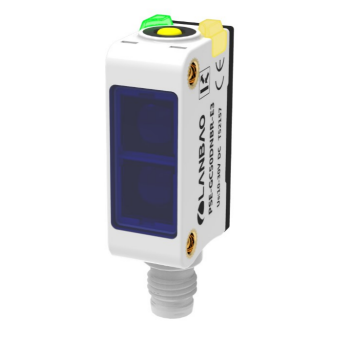

    Photoelectric transparent object detection sensor designed for precise and reliable detection of transparent materials such as glass or plastic bottles, packaging films, glass containers, or windows.
    Using a polarized blue light coaxial optical principle, the sensor ensures high accuracy, fast response, and stability even under strong ambient light.
    The ABS plastic housing and IP67 protection rating provide resistance to dust, moisture, and mechanical impacts, making it a reliable choice for industrial and domestic automation systems.

  • Product description

    Technical Specifications

    Detection type: Polarized reflection (coaxial light)
    Detection distance: 50 cm
    Light source: Blue light (460 nm)
    Light spot size: ≤14 mm @ 0.5 m

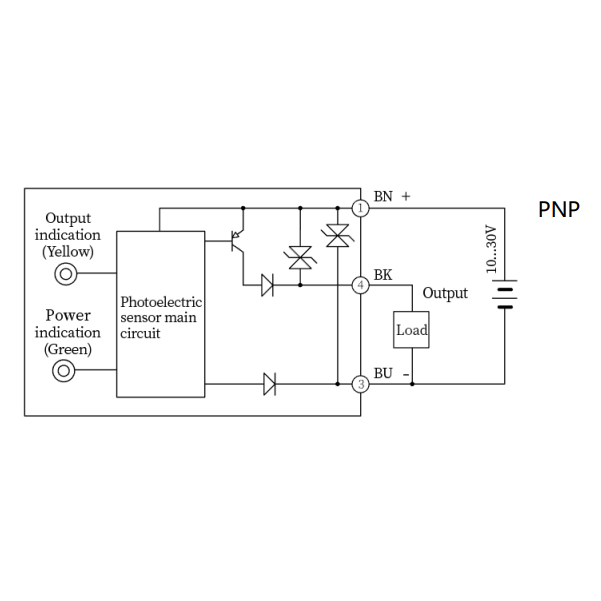

    Output type: PNP, NO/NC
    Response time: <0.5 ms
    Supply voltage: 10…30 V DC
    Current consumption: ≤25 mA
    Load current: ≤200 mA
    Voltage drop: ≤1.5 V
    Protections: Short-circuit, overload, polarity, and surge protection
    Indicators: Green LED – power status; Yellow LED – output signal or overload
    Light immunity: Sunlight ≤10,000 lux; Lamp light ≤3,000 lux
    Operating temperature: -25…+55 °C (no condensation or freezing)
    Storage temperature: -30…+70 °C
    Vibration resistance: 10–55 Hz, amplitude 0.5 mm (X/Y/Z directions)
    Shock resistance: 500 m/s² (3 times per direction)
    Protection class: IP67
    Insulation voltage: 1000 V AC (50/60 Hz, 60 s)
    Housing: PC+ABS plastic
    Lens: PMMA
    Connection: M8
    CE certified
    Accessories: Mounting bracket ZJP-8, reflector TD-08, user manual

    Functions and Operating Principle
    Coaxial light technology ensures precise detection of transparent objects without “blind spots.”
    One-button sensitivity adjustment allows fast and accurate sensor calibration.
    Fast response makes it ideal for dynamic production lines or robotic applications.

    Usage and Applications
    For home users or craftsmen: Suitable for object detection in workshops or DIY automation projects.
    For engineers / automation specialists: Ideal for robotics, production lines, conveyors, counting, and positioning systems.
    For electricians / technicians: Compact housing ensures easy installation; clear LED indicators simplify status and fault diagnostics.

    Pros

    Accurate detection of transparent objects (blue light technology)

    IP67 protection – resistant to dust, moisture, and vibration

    One-button calibration – quick and precise adjustment

    CE certified, reliable, and long-lasting solution

    Cons

    Less effective in environments with heavy dust or vapor concentration

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
