Photoelectric sensor | Through-beam type | Transmitter + receiver | 60m | 50x50x18mm | 24-240VAC/DC | 2m cable | ABS | infrared LED | IP67

Technical Specifications

Detection type: Through-beam
Nominal detection distance: 60 m (adjustable transmitter)
Light source: Infrared LED (850 nm)

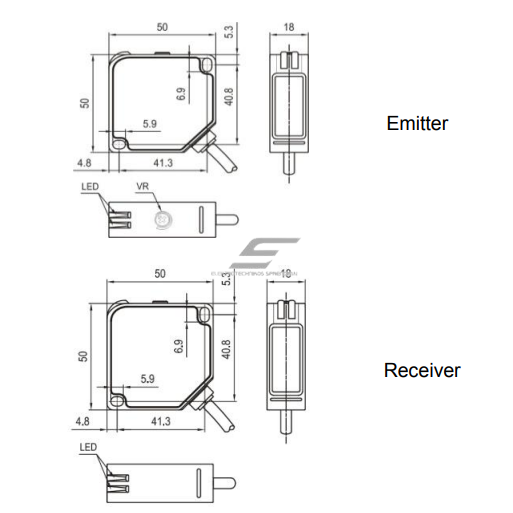

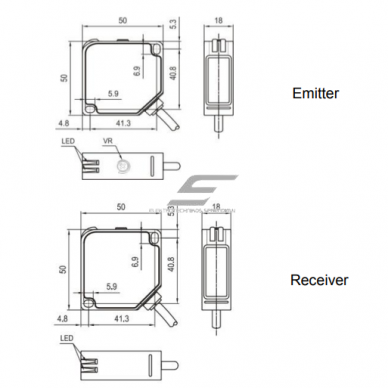

Dimensions: 50x50x18 mm
Object detection: > φ15 mm opaque object

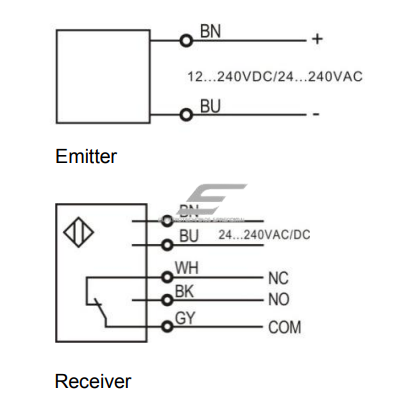

Output type: Relay
Response time: ≤ 10 ms
Repeat accuracy: ≤ 5%
Power supply: 24...240 V AC/DC
Current consumption: ≤ 35 mA
Load current: ≤ 3 A (receiver)
Indicators: Green LED – transmitter; Yellow LED – receiver
Ambient temperature: -25…+55 °C
Ambient humidity: 35–85% RH (non-condensing)
Vibration resistance: 10…50 Hz (0.5 mm amplitude)
Insulation resistance: ≥ 50 MΩ (500 VDC)
Dielectric strength: 2000V AC (50/60 Hz, 60 s)
Protection class: IP67
Housing: PC/ABS plastic
Connection: 2 m cable

Functions and Operating Principle

Through-beam detection principle – transmitter and receiver create an invisible infrared beam barrier.
Long detection range – ideal for conveyors and object detection systems.
High protection rating IP67 – ensures reliable operation in dusty and humid industrial environments.
Fast response – reliable performance even when detecting fast-moving objects.
Durable and lightweight PC/ABS housing, resistant to impact and chemicals.

Usage and Application

For home users or hobbyists: Suitable for object detection in workshops or DIY automation projects.
For engineers / automation specialists: Ideal for robotics, production lines, conveyors, counting or positioning systems.
For electricians / technicians: Easy installation due to compact housing; clear LED indicators simplify status and fault detection.

Advantages

Fast response

IP67 sealing – dust and moisture resistant

Wide operating voltage range

Visual LED indication on transmitter and receiver

PC/ABS housing – lightweight, durable, and impact-resistant

Disadvantages

Requires precise alignment of transmitter and receiver

Relay output unsuitable for very high-frequency signals (>100 Hz)

Not designed for transparent or reflective object detection
