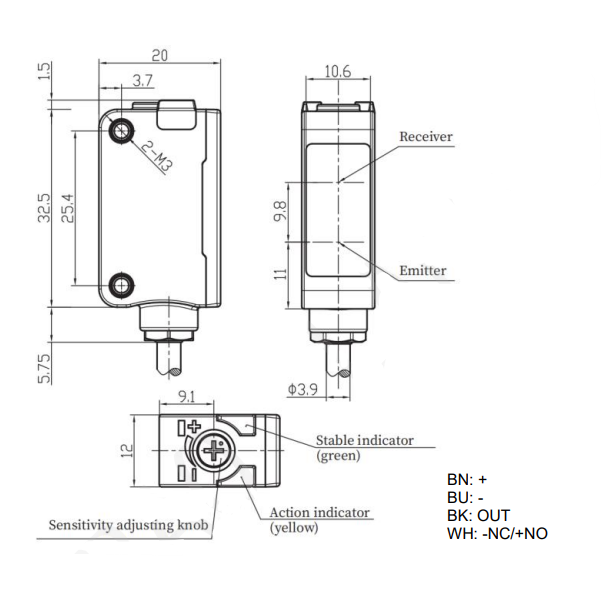

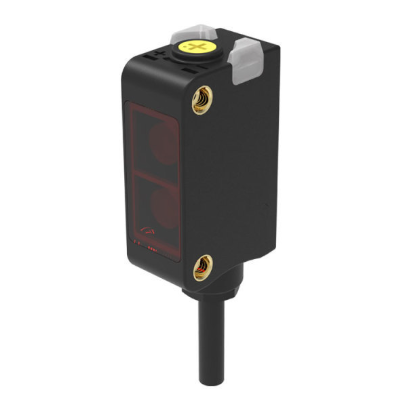

Photoelectric sensor with background suppression | 250mm | 32,5x20x12mm | 10-30VDC | NO/NC | NPN | 2m cable | ABS | Red light beam | IP67

Technical specifications

Detection type: Background suppression
Nominal sensing distance: 0.2 – 25 cm (adjustable)
Adjustment: 5-turn potentiometer
Light source: Red light (630 nm)
Light spot size: Ø11 mm @ 25 cm

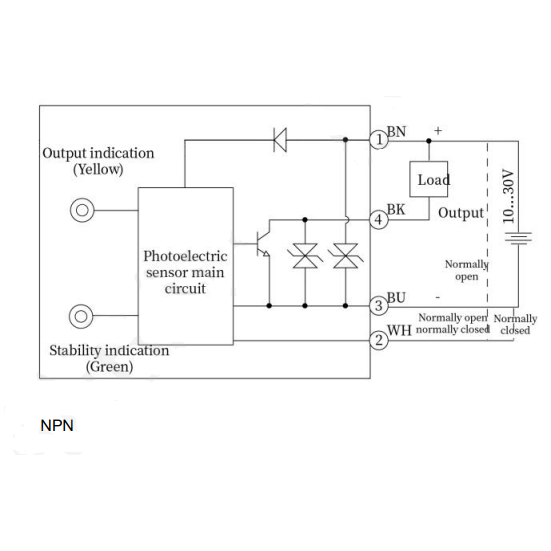

Output type: NPN, NO/NC
Response time: 3.5 ms
Supply voltage: 10…30 V DC
Operating current: ≤20 mA
Load current: ≤100 mA
Voltage drop: ≤1 V
Repeat accuracy: <5%
Protections: Short-circuit, overload, polarity reversal, and surge protection
Indicators: Green LED – power status; Yellow LED – output signal, overload or short circuit
Ambient light immunity: Sunlight ≤10,000 lux; Lamp light ≤3,000 lux
Operating temperature: -25…+55 °C
Storage temperature: -25…+70 °C
Protection class: IP67
Housing: PC+ABS plastic
Lens: PMMA
Connection: 2 m PVC cable
Standard test object: White card 20×20 cm (90% reflectivity)

Functions and operating principle
The sensor operates on the background suppression principle, allowing accurate detection of objects regardless of background or color.
It can distinguish an object from surrounding surfaces, making it ideal for detecting light, glossy, or semi-transparent objects.
The 5-turn adjustment knob allows easy sensitivity setting, while the LED indicators help monitor sensor status and signal strength.

Applications
For home users or hobbyists: Suitable for object detection in workshops or personal automation projects.
For engineers / automation specialists: Ideal for robotics, production lines, conveyors, counting, or positioning systems.
For electricians / technicians: Compact design enables easy installation; clear LED indicators simplify diagnostics and maintenance.

Advantages

Accurate background suppression

Adjustable detection distance

Fast response time

IP67 protection – dust and moisture resistant

Clear LED indicators – easy monitoring

Disadvantages

May require calibration when used with very transparent or black objects
