  •   PoE Switch 8-Port | Wired Network Expansion | 8×PoE + 2×Uplink | Unmanaged | 120 W | Metal Enclosure
      PoE Switch 8-Port | Wired Network Expansion | 8×PoE + 2×Uplink | Unmanaged | 120 W | Metal Enclosure 1
      PoE Switch 8-Port | Wired Network Expansion | 8×PoE + 2×Uplink | Unmanaged | 120 W | Metal Enclosure 2
      PoE Switch 8-Port | Wired Network Expansion | 8×PoE + 2×Uplink | Unmanaged | 120 W | Metal Enclosure 3
      PoE Switch 8-Port | Wired Network Expansion | 8×PoE + 2×Uplink | Unmanaged | 120 W | Metal Enclosure 4

    PoE Switch 8-Port | Wired Network Expansion | 8×PoE + 2×Uplink | Unmanaged | 120 W | Metal Enclosure

    Code: FS1010PG
    Inquire about this item
    Price 36.30 € VAT incl.
    ( 30.00 € VAT excl. )
    Want another price? Suggest yours!

    A PoE switch designed for fast and easy network expansion when both data and power need to be transmitted over a single cable. Thanks to its metal enclosure, wide operating temperature range, and PoE power of up to 120 W, this model is suitable for both home solutions and professional installations: video surveillance, Wi-Fi networks, offices, warehouses, and industrial environments.

    The switch operates on a plug & play principle – no configuration and no complex software required.

  • Product description

    Technical Specifications

    Type: Unmanaged network switch (PoE)
    Model: FS1010PG 1.0
    Enclosure: Metal
    Ports: 8 × RJ45 PoE (10/100 Mbps); 2 × RJ45 Uplink (10/100/1000 Mbps)
    PoE standards: IEEE 802.3af / 802.3at
    PoE power per port: up to 30 W
    Total PoE power: up to 120 W
    PoE voltage: DC 52 V
    Power transmission: via spare pairs (1/2 +, 3/6 −)
    Switching capacity: up to 5.6 Gbps
    Forwarding method: Store-and-Forward
    Forwarding rate: up to 4.166 Mpps
    MAC address table: 1K–2048 addresses
    Packet buffer: 448 KB
    Operating modes: Default / VLAN / Extend
    Power supply: AC 100–240 V
    Power consumption: up to 120 W

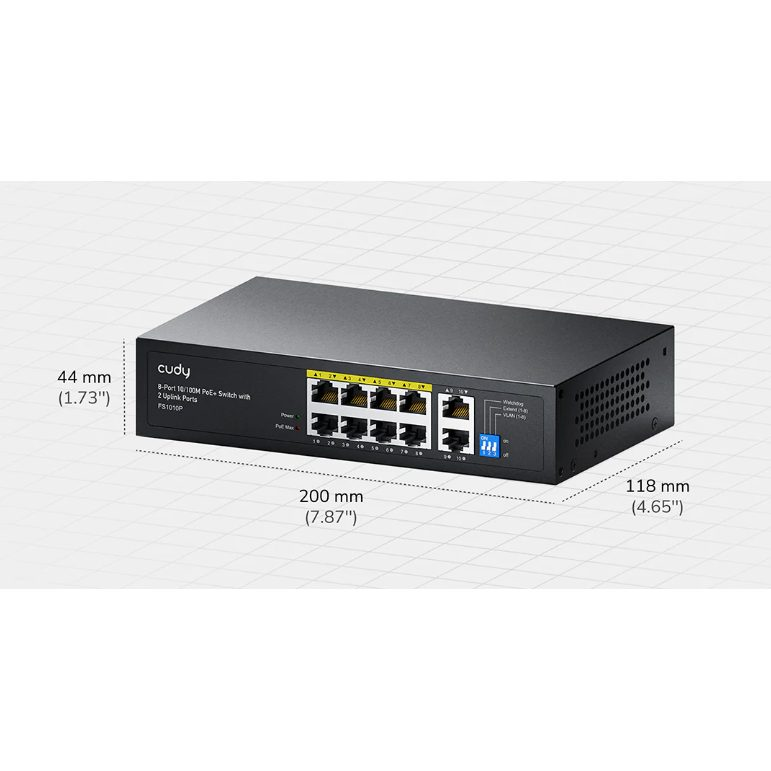

    Dimensions: 200 × 120 × 44–45 mm
    Operating temperature: −20 °C … +50 °C
    Storage temperature: −40 °C … +85 °C
    Humidity: up to 90–95% (non-condensing)
    Maximum altitude: 3000 m

    Functions

    PoE power and data via a single cable – fewer cables, faster installation
    8 PoE ports – IP cameras, Wi-Fi access points, VoIP phones
    2 Gigabit uplink ports – stable connection to router or core network
    VLAN mode – improved security and traffic isolation
    Extend mode – allows PoE connection over longer distances
    Automatic compatibility with 802.3af/at devices
    No configuration required – works immediately after connection

    Applications

    For home users: Home video surveillance (IP cameras), home or outdoor Wi-Fi access points, simple solution without complex settings
    For electricians / installers: Fast deployment on sites, fewer power outlets – everything via Ethernet, reliable metal enclosure and stable operation
    For engineers / system integrators: Small to medium networks, offices, warehouses, production facilities, stable solution with VLAN and Extend modes

    Pros

    High total PoE power – 120 W
    Durable metal enclosure
    2 × Gigabit uplink – better network performance
    Wide operating temperature range
    Simple plug & play operation
    Suitable for both home and professional use

    Cons

    Unmanaged – no advanced management or monitoring features
    8 PoE ports operate at 100 Mbps (not Gigabit)

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
