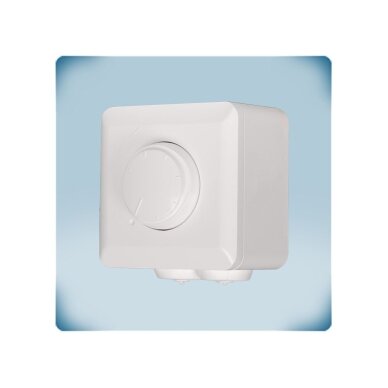

Potentiometer for EC fan with OFF position | Sentera Controls | SDP-E0US-AT
Code: SDP-E0US-ATOffer is valid until 2026-12-31Price 43.38 € VAT incl.( 35.85 € VAT excl. )67.68 €You save 24.30 €Want another price? Suggest yours!-
Potentiometer for EC fan with OFF position | Sentera Controls | SDP-E0US-AT

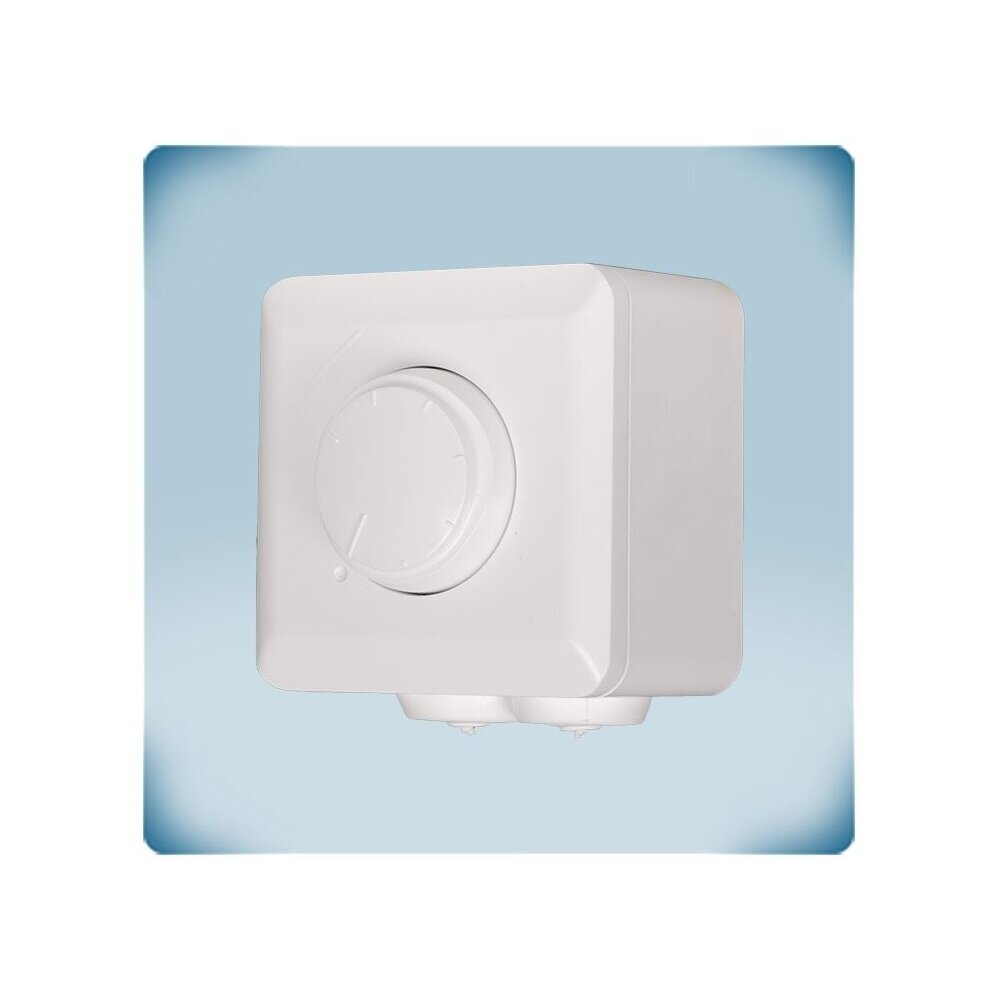

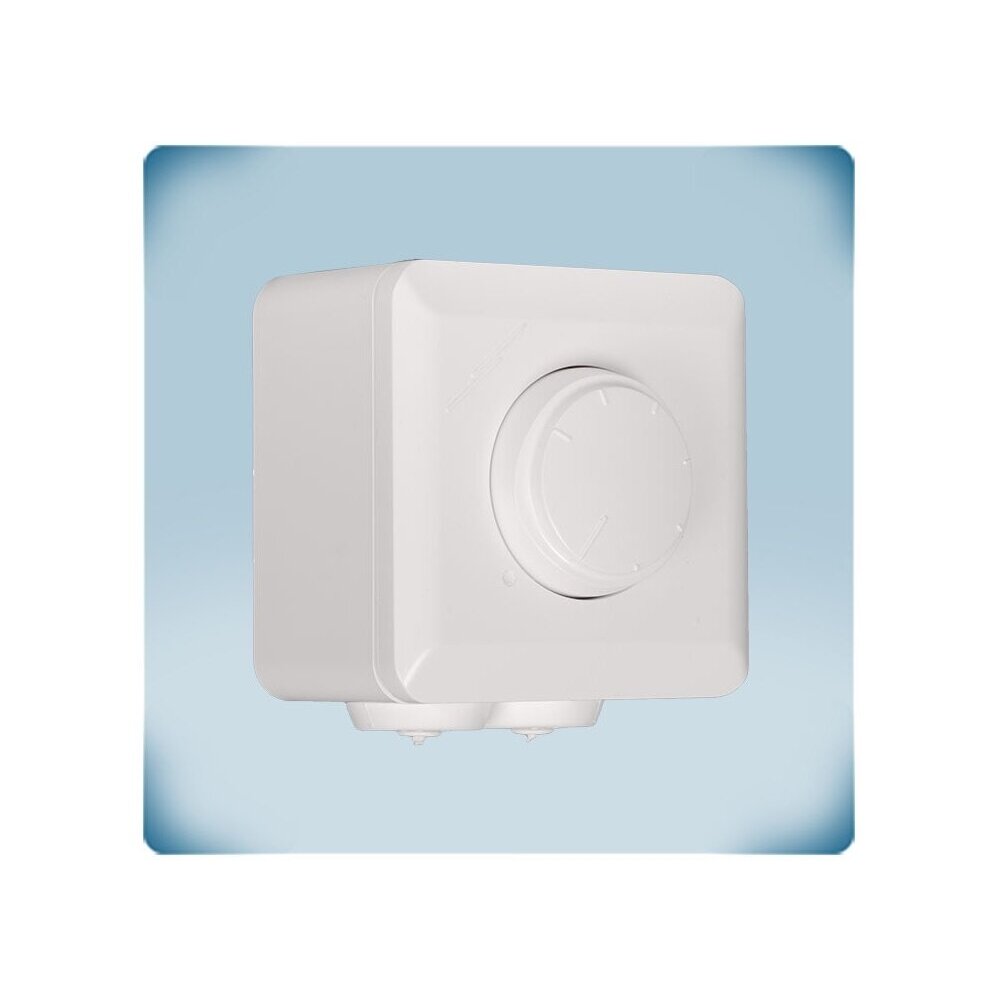

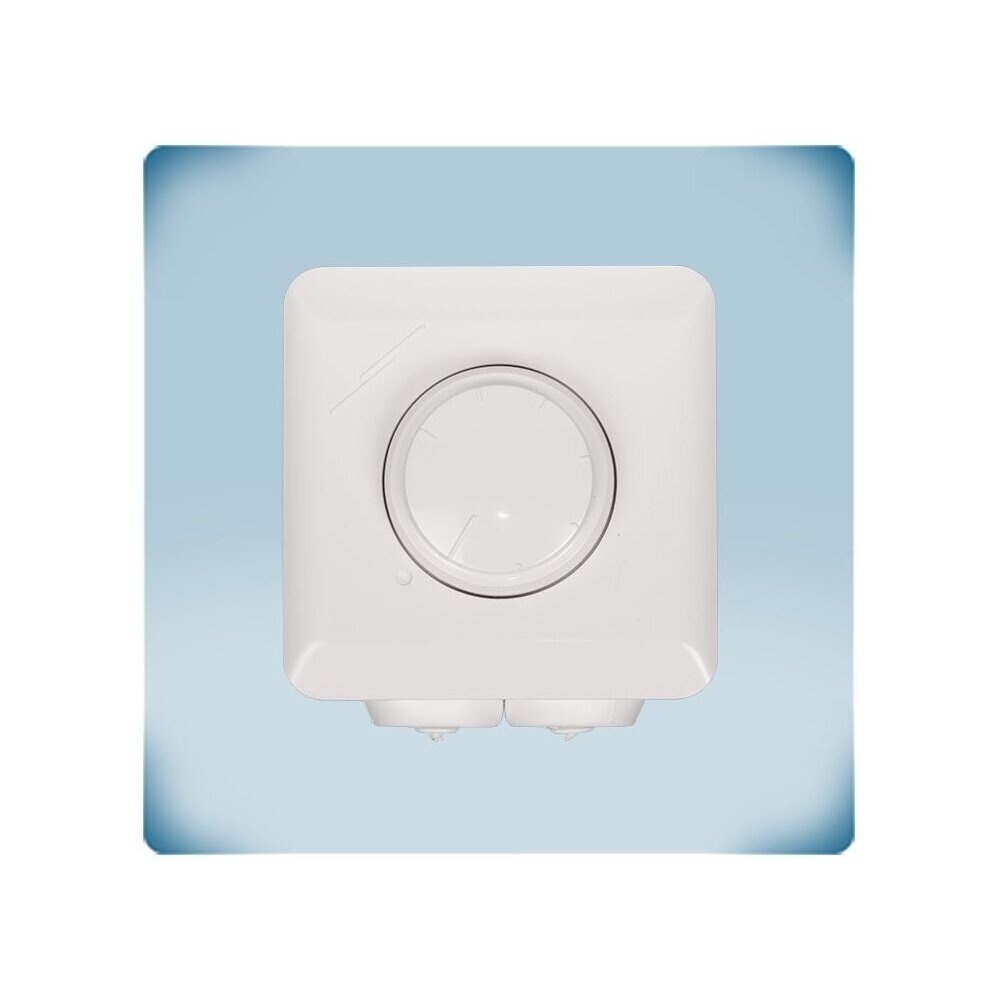

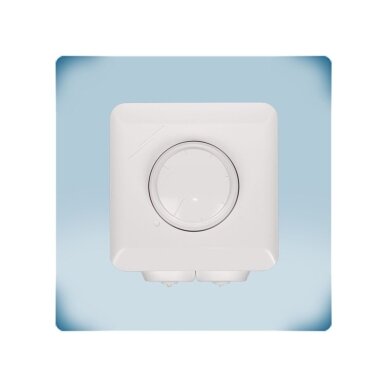

SDP-E0US-AT – Sentera Controls potentiometer with OFF position, designed for EC fans and other equipment requiring a stepless control signal. Supplied with 5–24 VDC, the Ao output is switched by jumper to voltage (0–100 % Us), current (0–20 mA) or PWM (1 kHz) mode; the min. and max. limits are set with two trimmers.
Key idea:
One knob performs two functions: turned fully to the left, the fan is switched off (OFF); turned clockwise, the speed changes steplessly from the set minimum to the maximum.Power supply
5–24 VDCAo output
0–100 % Us / 0–20 mA / PWM 1 kHzOFF position
YraProtection
IP44 flush-mounted / IP54 surface-mountedOperating principle
The potentiometer is installed in the room where the operator wants to change the ventilation intensity, while the controlled EC fan or controller may be in a technical room. A 5–24 VDC supply (Us, GND) and the output signal (Ao, GND) are connected to the EC motor control input.
This is not a power controller: only signal current flows through the potentiometer (own current consumption – 19 mA). The EC fan electronics change the motor speed themselves according to the received 0-10 V, 0-20 mA or PWM command, so the motor power has no influence on the choice of potentiometer.

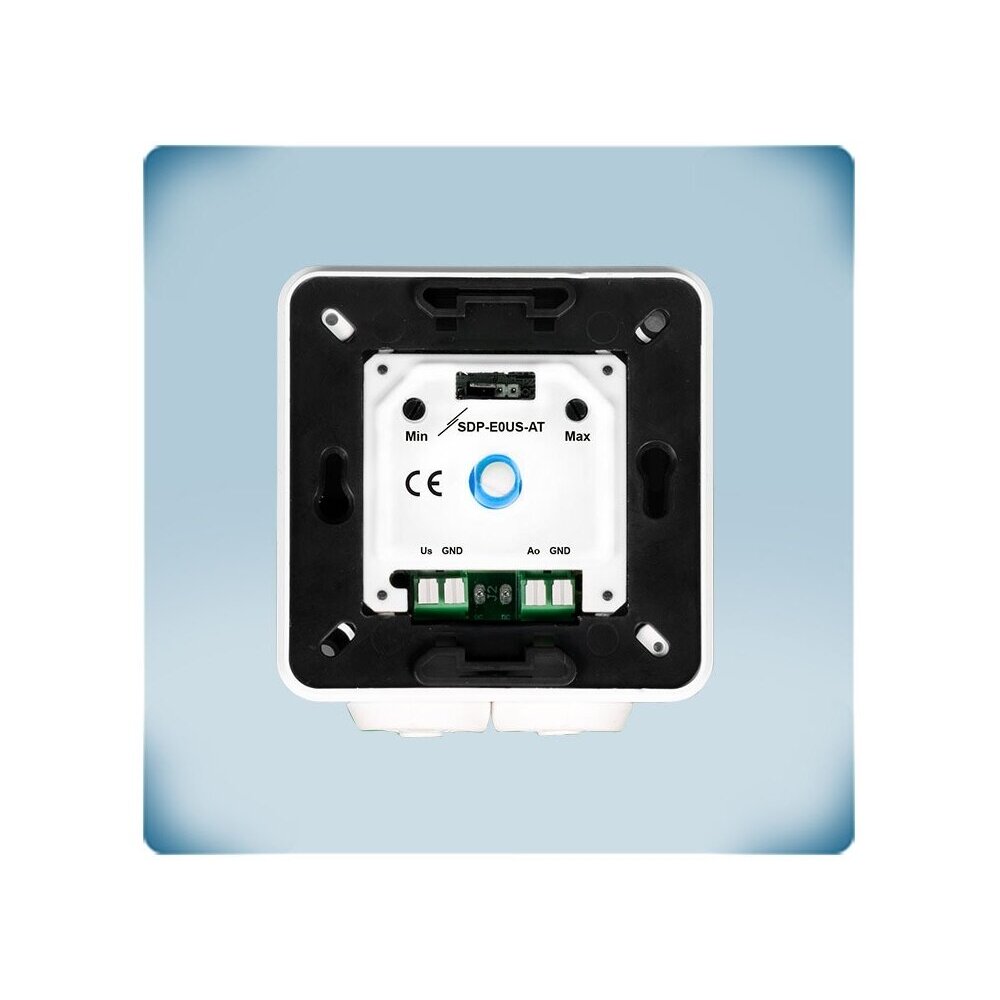

The output type is selected by jumper: voltage 0–100 % Us (load RL ≥ 50 kΩ), current 0–20 mA (RL ≤ 500 Ω) or PWM 1 kHz with a 3.3 VDC or 12 VDC level (RL ≥ 50 kΩ). The MIN trimmer is set to 0–80 % Us, MAX – 20–100 % Us; a control range of no less than 20 % is always maintained between them. If MIN is set higher than MAX, the control is reversed (from max. to min.).
Engineer's note: in voltage mode the output is proportional to the supply voltage. With a 10 VDC supply a 0–10 V signal is obtained; with a 24 VDC supply the output must be limited with the MAX trimmer (≈ 42 % Us ≈ 10 V) so that the EC motor's 0-10 V input does not receive excessive voltage. In the OFF position (knob fully anticlockwise) the fan is stopped.
Benefits SDP-E0US-AT?
One potentiometer suits 0-10 V, 0-20 mA and PWM controlled EC fans and actuators, and the limits are set on site with trimmers – no computer or programming needed.Technical specifications
Product type Potentiometer (control signal source) for an EC fan Manufacturer / code Sentera Controls / SDP-E0US-AT Series SDP-E0US (AT – with OFF, BT – without OFF, DC – with dry contact) Supply voltage (Us) 5–24 VDC Current consumption 19 mA Ao output – voltage 0–100 % Us, RL ≥ 50 kΩ Ao output – current 0–20 mA, RL ≤ 500 Ω Ao output – PWM 1 kHz, 3.3 VDC or 12 VDC level, RL ≥ 50 kΩ Output type selection Jumper (voltage / current / PWM) MIN trimmer 0–80 % Us MAX trimmer 20–100 % Us (always a range of ≥ 20 % between the limits) Control direction Min.→max. (factory default) or max.→min. (MIN > MAX) OFF position Yra Terminals Spring-type; solid wire 1.0–1.5 mm², stranded with ferrule 0.5–1.0 mm², stripping length 7 mm Installation Flush-mounted (IP44) or surface-mounted (IP54), 4× ø3.5 mm mounting holes Protection class IP44 / IP54 (EN 60529) Operating environment 0–50 °C, < 95 % rH non-condensing Weight 0.14 kg (net) Compliance LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU Manufacturer documentation
✔ Recommended by Elektrotechnikos sprendimaiOriginal manufacturer documentation – technical data, wiring diagrams and installation instructions.
Main functions
- Three output types – 0–100 % Us, 0–20 mA or PWM 1 kHz – one model for various EC fans and actuators.
- MIN / MAX trimmers – the minimum speed ensures the hygienic air volume, the maximum limits noise and airflow.
- Reverse control – if MIN is set higher than MAX, the signal decreases as the knob is turned clockwise.
- Wide supply range 5–24 VDC – suitable for 10 VDC, 12 VDC or 24 VDC sources.
- OFF position – when the knob is turned fully to the left, the signal is cut off and the fan stops.

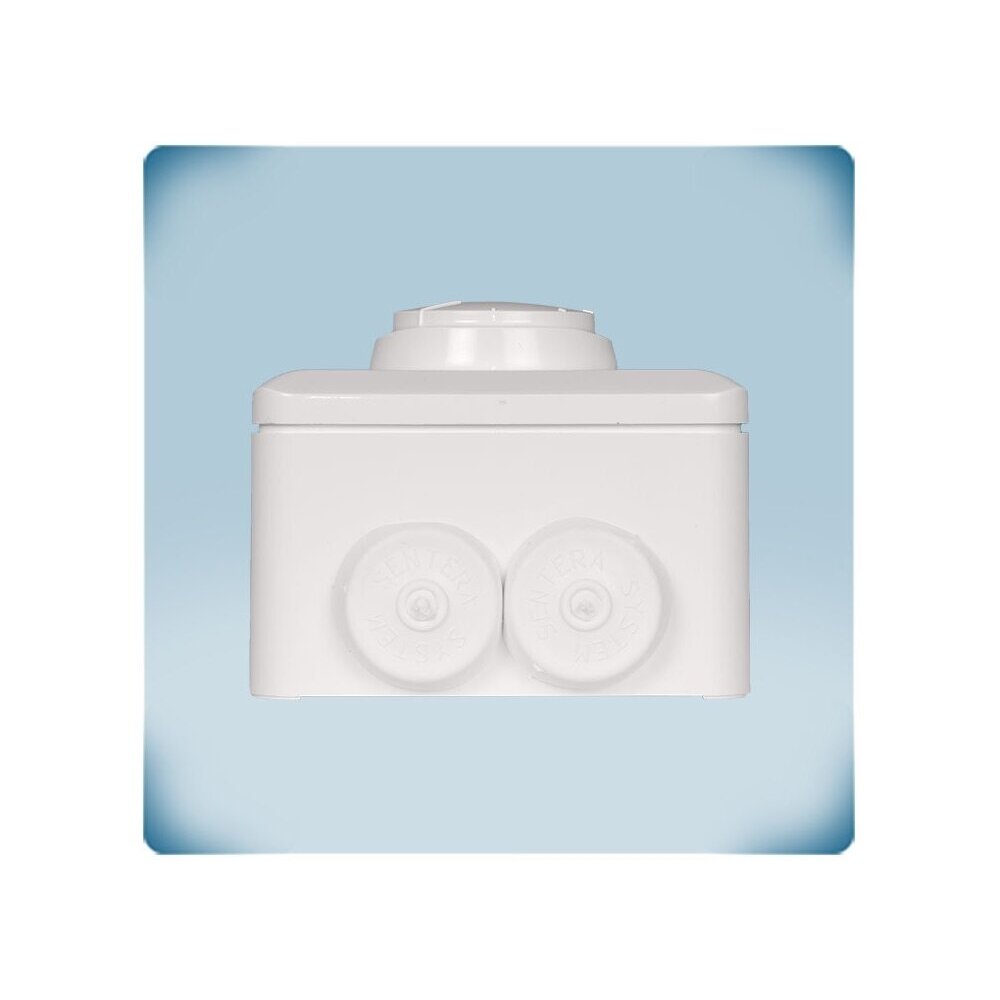

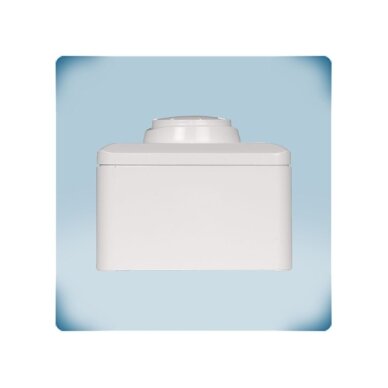

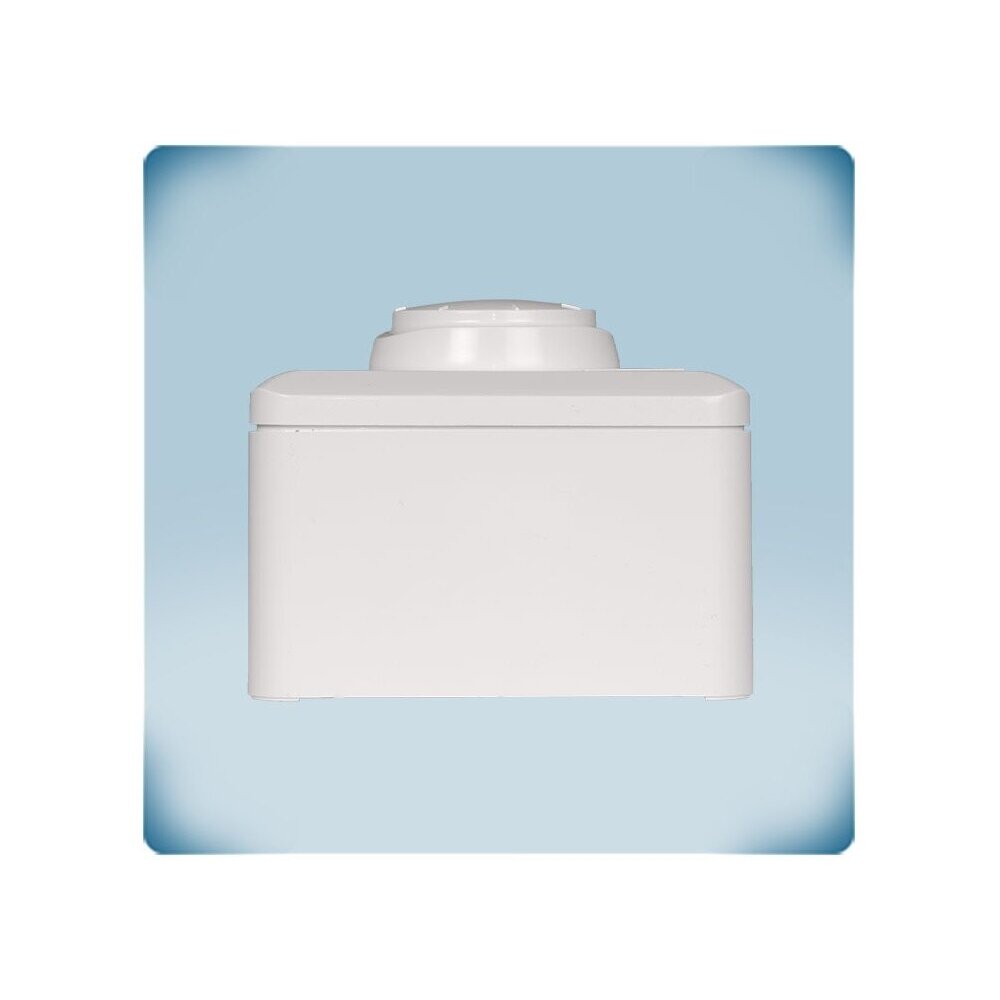

- Universal enclosure – flush-mounted (IP44) or surface-mounted (IP54) installation, protected against water splashes.
Where is it used?
- Heat recovery units and extract fans with EC motors for apartments and houses
- Offices, meeting rooms, classrooms – manual control of ventilation intensity
- Damper actuators with 0-10 V / 0-20 mA control
- Plant rooms where the controller or fan is far from the user
- Control signal for Sentera EVS / MVS controllers or FI-E frequency inverters
On-demand operation
For the ventilation installer.
One model with three output types – fewer different items in stock and on site.For the automation specialist.
Limits and direction are set on site with trimmers, without programming tools.For the user.
A simple knob in the room – speed is changed steplessly, without steps.Application guide: how it is used in practice
SDP-E0US-AT can be adapted to different sites – only what is connected to its output changes:
Site What is connected Result Installer's note Apartment or house with a heat recovery unit Ao → EC fan 0-10 V input, Us – 10 VDC source The occupant sets the ventilation intensity When supplied with 24 VDC – limit to ≈ 10 V with the MAX trimmer EC duct fan in an office Ao (0-10 V) → EC motor control input Speed changes steplessly, the min. limit ensures the hygienic air volume Set the MIN trimmer according to the design min. flow Damper with a proportional actuator Ao (0-10 V or 0-20 mA) → actuator control input Manual damper position setting In current mode, load ≤ 500 Ω EC fan with a PWM input Ao (PWM 1 kHz, 3.3 / 12 VDC) → PWM input Stepless speed control without an analogue signal Check what PWM level the fan accepts AC fan with an electronic controller Ao (0-10 V) → Ai input of a Sentera EVS or MVS controller Potentiometer in the room, controller in a technical room Connect the signal GND to the controller GND How to select the controller current
Rated current of the motor(s) Recommended model OFF position needed, supply 5–24 VDC SDP-E0US-AT (OFF, trimmers) ← this model Continuous min. flow needed (no OFF), 5–24 VDC SDP-E0US-BT (no OFF, trimmers) Dry contact for an external device needed, 5–24 VDC SDP-E0US-DC (dry contact 1 A) OFF position and Modbus RTU needed, 24 VDC SDP-M010-AT (OFF, Modbus RTU) Modbus RTU needed without OFF position, 24 VDC SDP-M010-BT (no OFF, Modbus RTU) Modbus RTU and dry contact needed, 24 VDC SDP-M010-DC (Modbus RTU, dry contact 1 A) Simple 0–Us signal with OFF and dry contact needed SDP-X10K-NA (10 kΩ, dry contact 1 A) Rule: first determine which signal (0-10 V, 0-20 mA, PWM) and which supply voltage are needed, then whether an OFF position, a dry contact or Modbus RTU is required. Motor power and current have no influence on the selection – only the control input load matters (≥ 50 kΩ in voltage and PWM mode, ≤ 500 Ω in current mode). Several EC fans in parallel – only if the total input resistance meets this limit.When to choose another solution: For Modbus RTU control and settings – SDP-M010 series (AT / BT / DC); for supply directly from the 230 VAC mains – SPV-8 or MTVN1 series; for digital control with display and steps – RDCV9-AD; for AC fans – electronic EVS-1 controllers.Pros
- OFF position to switch off the fan
- Three output types: voltage, current, PWM
- Wide supply range 5–24 VDC
- MIN / MAX limits and reverse control with trimmers
- Low current consumption – 19 mA
- Flush-mounted IP44 or surface-mounted IP54 installation
Cons / limitations
- A separate 5–24 VDC supply is required – cannot be supplied directly from 230 VAC
- In voltage mode the output equals % of Us – with a 24 VDC supply, MAX must be limited
- No Modbus RTU – settings are changed only with trimmers
- This is a signal source – it does not directly control AC motor speed
Safety and installation notes
- Installation and connection must be carried out by a qualified electrician with the supply to all connected devices disconnected.
- Supply voltage – no higher than 24 VDC; connecting 230 VAC to the terminals is prohibited.
- Before switching on the EC fan, check the output voltage – it must not exceed the permissible limit of the motor control input.
- Observe the load limits: ≥ 50 kΩ in voltage and PWM mode, ≤ 500 Ω in current mode.
- Use at a temperature of 0–50 °C with relative humidity < 95 % non-condensing.
Quick selection guide
5–24 VDC0-10 V / 0-20 mA / PWMOFFIP44 / IP54For EC fansSuitable when you need:- control EC fan speed manually and steplessly;
- set the min. and max. speed without programming;
- switch off the fan with the same knob;
Check before use:- the EC fan control input type (0-10 V, 0-20 mA or PWM) and its impedance;
- the available 5–24 VDC power source;
- whether an OFF position, a dry contact or Modbus RTU is needed.
Important reminder: SDP-E0US-AT is a control signal source, not a power controller – the motor current does not flow through it.FAQ
Does it have an OFF position?
Yes, by turning the knob fully counter-clockwise.Can it be powered from 230 VAC?
No. A 5–24 VDC source is required; for a 230 VAC supply choose the SPV-8 or MTVN1 series.How do I get an exact 0-10 V signal?
Supply 10 VDC or, when supplying a higher voltage, limit the output to 10 V with the MAX trimmer.Is it suitable for PWM-controlled fans?
Yes, by selecting PWM mode with a jumper (1 kHz, 3.3 VDC or 12 VDC level).Can it control several EC fans?
Yes, provided the total resistance of the parallel-connected control inputs is within the load limits.Can the control direction be reversed?
Yes – if the MIN trimmer is set higher than MAX, the output changes from max. to min.Potentiometer for EC fan with OFF position | Sentera Controls | SDP-E0US-AT
