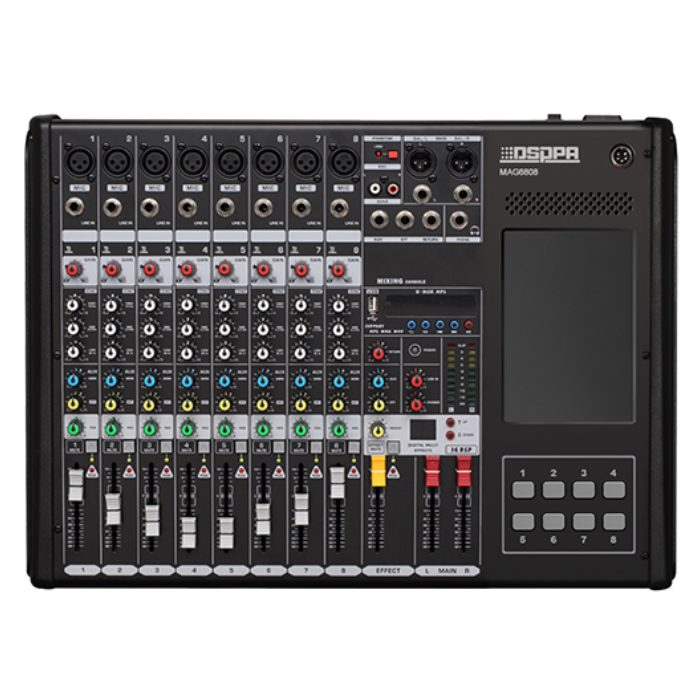

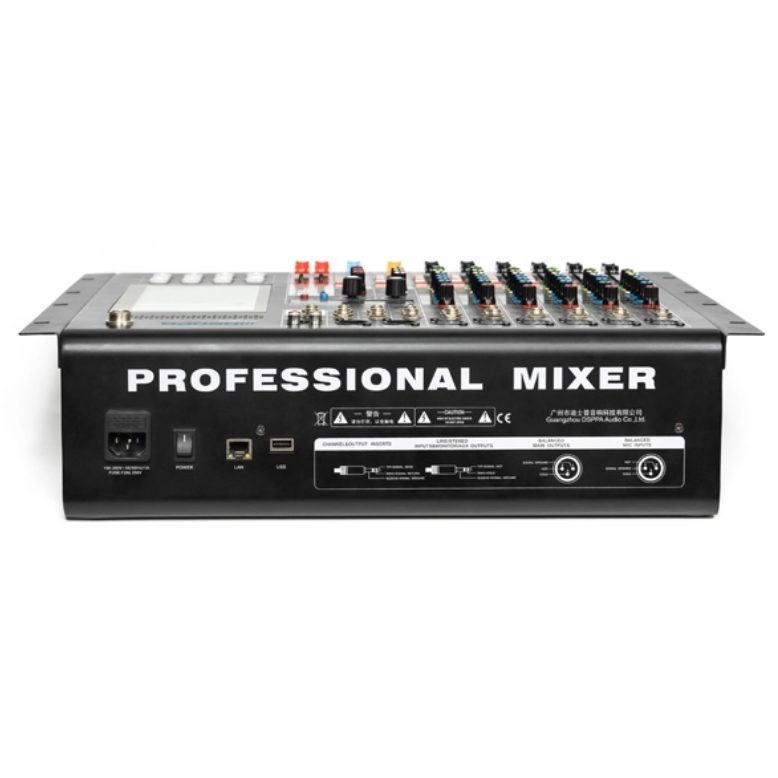

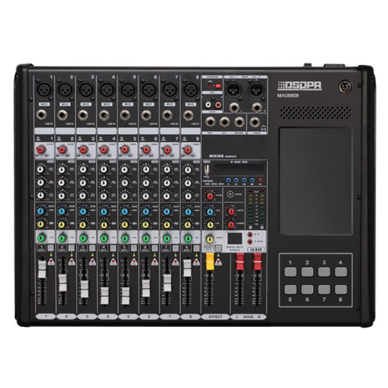

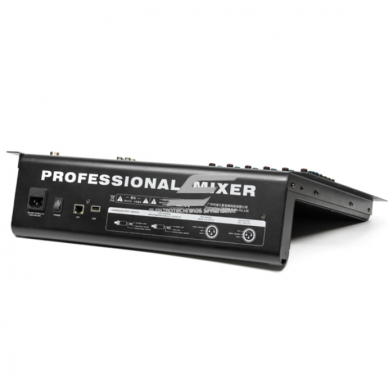

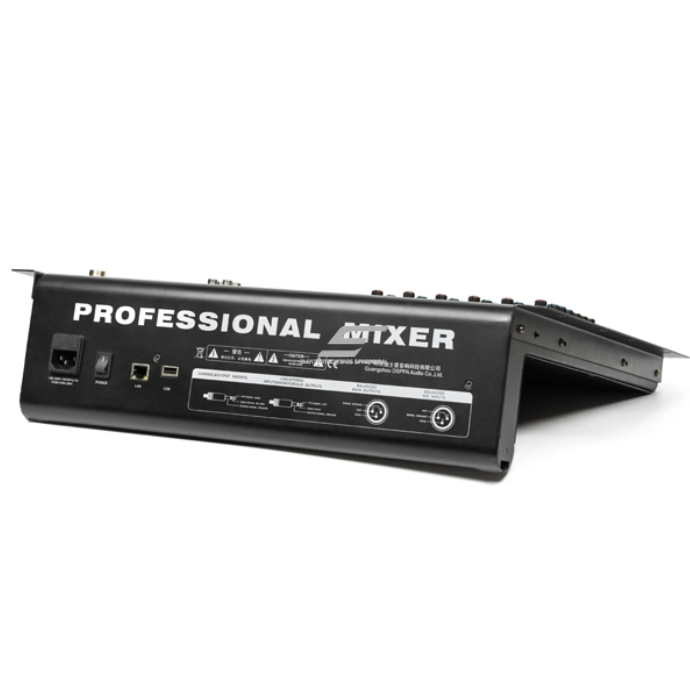

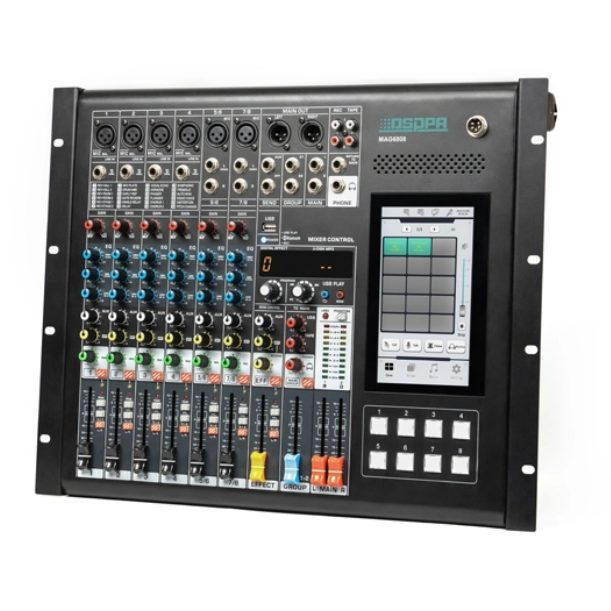

Professional IP Network Audio Mixing Console | 7" Touchscreen | USB / Bluetooth / IP / Recording in One

Technical Specifications

Type: IP network audio mixing console
Display: 7-inch color touchscreen
Programmable buttons: 8 pcs
Audio inputs: 4 × mono balanced inputs; 2 × stereo inputs; 1 × microphone input
Audio channel control: Mute function per channel; Gain adjustment; 3-band equalizer (EQ) per channel; Independent volume control for each channel
Audio outputs: Multi-channel stereo audio outputs
Built-in player: Hi-Fi MP3
Supported audio formats: MP3 / WMA / OGG
Connections and interfaces: USB, Bluetooth, IP (audio streaming over network)
Additional functions: Automatic background music attenuation during microphone use (priority), local music streaming to IP network, remote broadcasting to any IP terminal, audio recording (microphone or AUX) directly to USB storage

Functions

Real-time IP audio broadcasting – audio is transmitted via local or internet network to selected IP terminals
One-button operation – 8 programmable buttons allow instant playback of music or announcements
Professional audio processing – balanced inputs, EQ correction, and individual channel control
Microphone priority function – background music is automatically reduced when speaking through the microphone
Integrated Bluetooth and USB – easy music playback without additional devices
Audio recording capability – recording of announcements, speech, or music directly to USB
High-quality audio playback – stable IP streaming and Hi-Fi level sound

Applications

Building administrator / security manager: Background music in offices, hotels, retail spaces; quick announcements for staff or visitors; intuitive control via touchscreen
Engineer / system integrator: Design of IP public address (PA) systems, centralized audio and evacuation systems; integration with existing IP networks and terminals; flexible broadcast and channel management
Electrician / installer: Easy installation and clear connections; reliable solution for new or upgraded facilities; suitable for long-term, intensive use

Pros

Centralized IP audio control
7" touchscreen – modern and user-friendly
Professional audio mixing with EQ per channel
Microphone priority function
USB, Bluetooth, IP, and recording in one device
Wide range of applications and high sound quality

Cons

Basic IP networking knowledge recommended for full functionality
Designed for stationary use (not portable)
