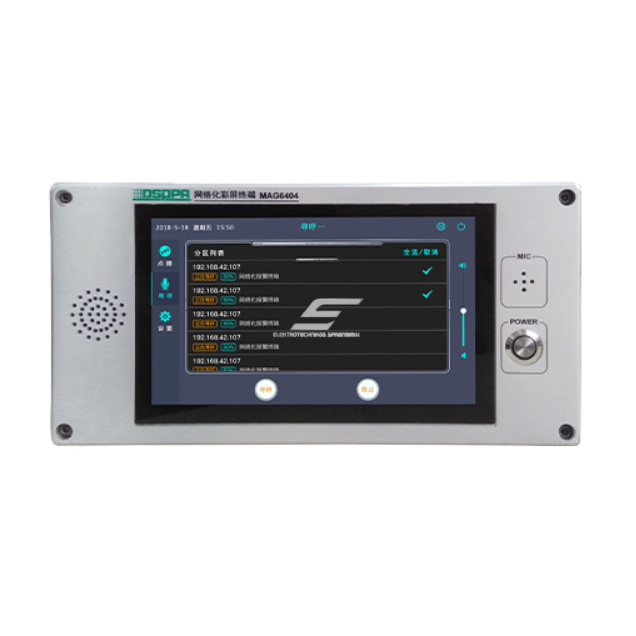

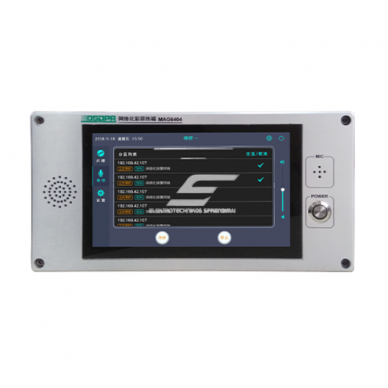

  •   Professional network audio control terminal | with 7" color touchscreen | 10W | 4Ω | Intercom support | DC 12–14V

    Professional network audio control terminal | with 7" color touchscreen | 10W | 4Ω | Intercom support | DC 12–14V

    Code: MAG6404
    Inquire about this item
    Price 1224.40 € VAT incl.
    ( 1011.90 € VAT excl. )
    Want another price? Suggest yours!

    A networked audio control and announcement terminal designed for modern public address (PA), background music (BGM), evacuation, and zoned paging systems. The device features an intuitive 7-inch color touchscreen, extensive networking capabilities, and functionality that in many cases allows it to serve as a central system controller.

    This solution is designed for professional use, yet is simple and intuitive enough to be operated by non-technical staff.

  • Product description

    Technical Specifications

    Type: Network color display audio terminal
    Display: 7" True Color touchscreen
    Resolution: 800 × 480 px
    Audio amplifier: up to 10 W @ 4 Ω (2 channels)
    Built-in monitoring speaker: 3 W
    Network interface: 10M / 100M Ethernet, TCP/IP
    Audio inputs: 1 × AUX IN
    Audio outputs: 1 × AUX OUT
    Additional output: 1 × 12 V DC OUT
    Control functions: zoned paging control, all-zone announcements, audio source selection, playback control
    Communication functions: telephone intercom with other devices
    Alarm support: alarm signal insertion from central controller
    Power supply: DC 12–14 V
    Maximum power consumption: ≤ 10 W

    Functions

    Intuitive operation – large 7" color touchscreen allows fast and clear control of audio zones, sources, and announcements without additional controllers or a computer
    Network architecture (TCP/IP) – full operation via local network, providing a stable, secure, and easily scalable solution for large facilities
    Zoned and global paging – ability to send announcements to a selected zone or to all zones simultaneously
    Intercom function – enables two-way communication with other system devices, especially useful for security, administration, and staff communication
    Alarm integration – supports insertion of alarm signals, making it ideal for evacuation and safety systems
    Built-in monitoring speaker – 3 W internal speaker allows local audio monitoring without additional loudspeakers
    Host functionality – the terminal can perform basic central controller functions, reducing system complexity and cost

    Applications

    Daily use: Background music, working time announcements, informational messages for staff or visitors
    Emergency situations: Evacuation and warning announcements with zoned control
    Professional integration: As part of a networked PA system, integrated with other audio, security, or building management solutions

    Advantages

    High-quality 7" touchscreen
    Network control via TCP/IP
    Zoned and global paging
    Intercom support
    Alarm signal integration
    Built-in monitoring speaker
    Can perform central controller functions
    Professional solution with wide application range

    Disadvantages

    Requires network infrastructure
    Designed for fixed installation
    Powered only by DC 12–14 V

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
