  •   Public address broadcasting control device with 17.3" touchscreen | SSD + HDD | VOIP and video intercom support

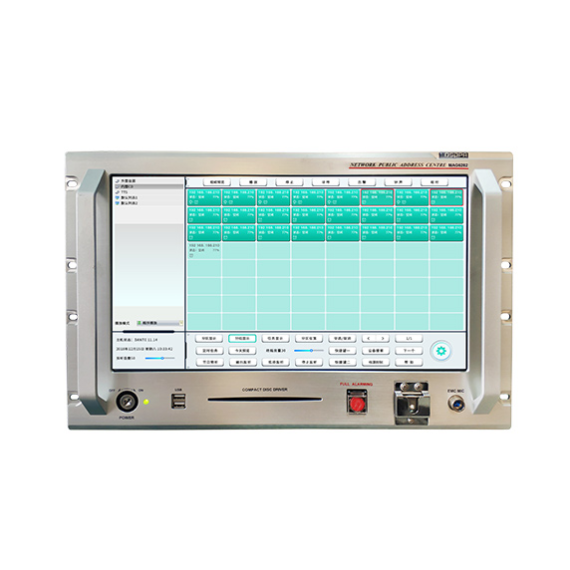

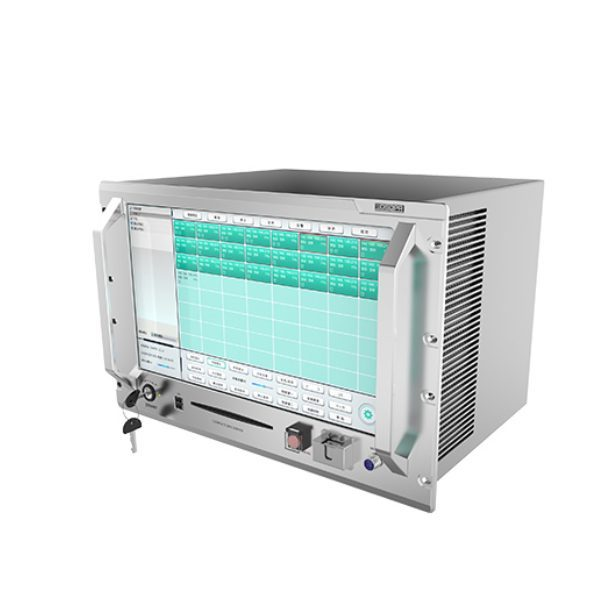

      Public address broadcasting control device with 17.3" touchscreen | SSD + HDD | VOIP and video intercom support 1

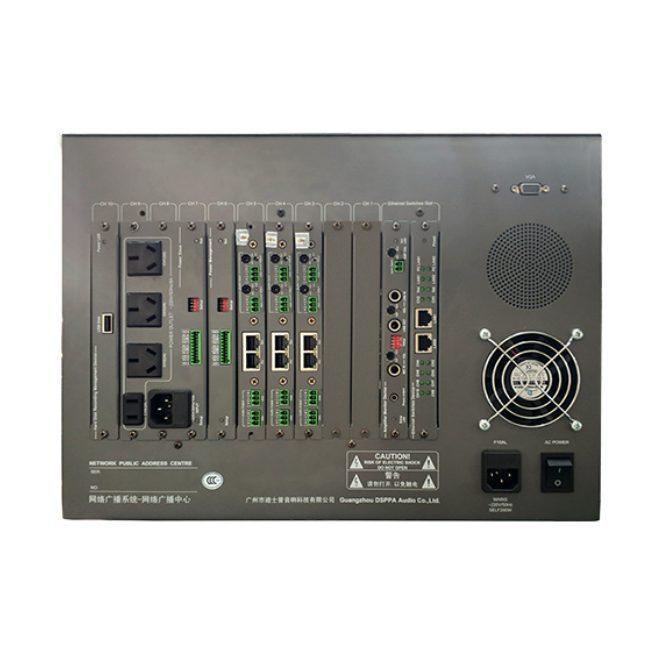

      Public address broadcasting control device with 17.3" touchscreen | SSD + HDD | VOIP and video intercom support 2

    Public address broadcasting control device with 17.3" touchscreen | SSD + HDD | VOIP and video intercom support

    Code: MAG6282
    Inquire about this item
    Price 10371.59 € VAT incl.
    ( 8571.56 € VAT excl. )
    Want another price? Suggest yours!

    A public address broadcasting control device designed for modern building, enterprise, and infrastructure communication systems. The unit integrates audio broadcasting, zone control, visual monitoring, VoIP communication, and smart functions into one powerful central platform.

    Thanks to its 17.3″ touchscreen, Windows-based system, and B/S (Browser/Server) architecture, the device is easy to use for both technical staff and non-professional users. It is a reliable solution for schools, hospitals, shopping centers, factories, offices, public spaces, and residential complexes.

  • Product description

    Technical Specifications

    Display: 17.3″ LCD, touchscreen
    Control: Touchscreen
    Computer system: Windows 7 or newer (32 / 64 bit)
    Processor: Intel® Core™ i5-5200U
    RAM: 4 GB
    Storage: 120 GB SSD + 500 GB HDD
    Audio playback format: MP3
    Bitrate: 120–320 kbps
    Number of terminals: Unicast – up to 110; Multicast – unlimited
    Audio signal SNR: LINE >70 dB; MIC >60 dB
    Audio distortion: 1 kHz < 0.5%
    Input levels: LINE: 300 mV ±20 mV; MIC: 10 mV ±2 mV
    Output level: 0 dBV
    Output type: Constant impedance
    Undistorted output power: 10 W
    Time control load: 1 channel – 2 A
    Power supply: AC 220 V / 50 Hz
    Power consumption: 150 W
    Device dimensions: 483 × 308 × 445 mm
    Net weight: 19.5 kg
    Gross weight: 28.7 kg
    Software: Visual network PA system software (licensed)

    Functions

    Centralized network public address control
    Zoned paging and monitoring
    Main / standby mode support
    VoIP protocol – voice and video communication between terminals
    Video intercom functionality
    IPC camera integration support
    Electronic maps for convenient zone and device management
    AI function integration capability (optional)
    B/S architecture – convenient server-based access and control
    Timer-based broadcasting and load control

    Applications

    For administrators / building managers: Public announcements, centralized multi-zone control, simple and intuitive touchscreen operation
    For electricians / system installers: Fast integration into IP-based PA systems, compatibility with terminals, cameras and VoIP solutions, reliable operation in large systems
    For engineers / designers: Suitable for complex multi-channel and multi-zone PA systems, unlimited multicast terminals, redundancy and system reliability options, AI and video integration potential

    Pros

    Large 17.3″ touchscreen
    Powerful Intel i5 processor
    SSD + HDD for speed and high storage capacity
    VoIP and video intercom support
    Zoned control with electronic maps
    Professional, industrial-grade solution
    Suitable for both small and very large facilities

    Cons

    Designed for stationary installation
    Basic network / PA system knowledge required for full functionality
    Higher investment compared to simple PA players or amplifiers

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
