  •   Rogowski Coil Converter / Integrator with RS485 (Modbus RTU) | 600 A | IP66 | Wide Power Supply Range | S9.42

    Rogowski Coil Converter / Integrator with RS485 (Modbus RTU) | 600 A | IP66 | Wide Power Supply Range | S9.42

    Code: ESS9.422
    Inquire about this item
    Price 127.05 € VAT incl.
    ( 105.00 € VAT excl. )
    Want another price? Suggest yours!

    Rogowski current measuring coil signal converter (integrator) with RS485 interface and Modbus RTU protocol, designed for reliable transmission of alternating current (AC) measurement data to automation and energy management systems. The device is adapted for outdoor and industrial environments, features IP66 protection, a wide power supply range, and supports one selectable rated current value (configured on order). The integrator is suitable for applications where the analog signal from a Rogowski coil needs to be converted into a digital (RS485) signal and integrated with PLC, SCADA, BMS, EMS, or energy monitoring systems.

  • Product description

    Technical Specifications

    Type: Rogowski coil signal converter / integrator
    Model: S9.42
    Rated measured current: 600 A
    Output interface: RS485
    Communication protocol: Modbus RTU
    Wiring: 4-core cable (RS485)
    Frequency bandwidth: 30 Hz – 5 kHz
    Power supply: 5 V DC / 12 V DC / 24 V DC
    Protection class: IP66
    Operating environment: indoor and outdoor conditions
    Note: once a Rogowski coil is selected, the integrator and coil become inseparable
    Package contents: Rogowski coil not included (sold separately)
    Measurement type: AC current only

    Functions

    Integration and digitization of Rogowski coil signals

    RS485 Modbus RTU – standard industrial communication

    IP66 – resistant to dust and powerful water jets

    Wide power supply options (5 / 12 / 24 V DC)

    Stable operation over a wide current range

    Applications

    Home / advanced user:
    Energy consumption monitoring in residential or commercial buildings, solution for transmitting measurement data to a central system

    Electrician:
    Integration into electrical panels, distribution points, and outdoor installations where IP66 protection is required, quick connection to RS485 networks

    Engineer / automation specialist:
    Integration with PLC, SCADA, BMS, EMS, and IoT platforms, suitable for energy, industrial, and infrastructure projects, OEM solutions with predefined rated current

    Advantages

    RS485 + Modbus RTU – widely supported standard

    IP66 – suitable for outdoor use

    Wide power supply options

    Stable and reliable industrial solution

    Limitations

    Rogowski coil not included

    Only one rated current value supported at a time

    Integrator and coil cannot be separated after connection

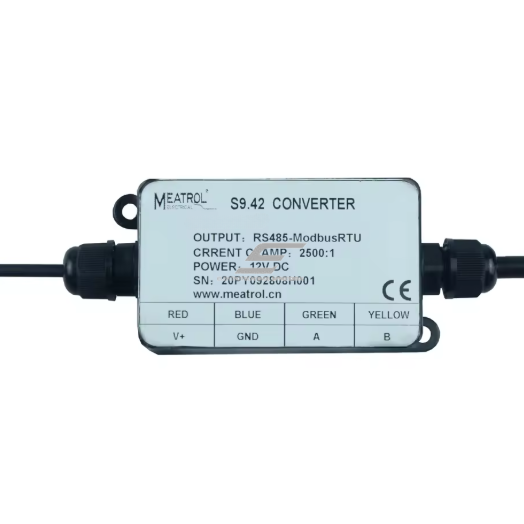

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
