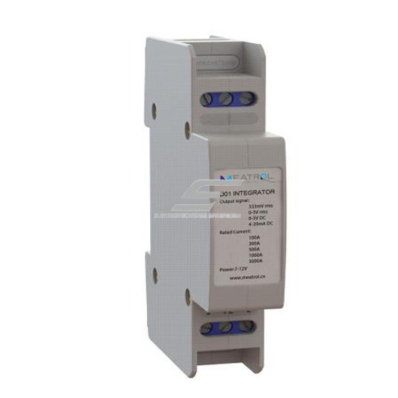

Rogowski Coil Integrator for DIN Rail | 3000 A | 85 mV/kA | 0–10 V AC | For AC Current Measurement | D1.1

Technical Specifications

Type: Rogowski coil integrator, DIN rail mounted
Model: D1.1
Rated current: 3000 A
Output signal: 0–10 V AC
Coil transfer ratio: 85 mV/kA
Measurement accuracy: ±1% (from 1% to 100% of rated current)
Frequency bandwidth: 5 Hz – 20 kHz
Power supply: 12 V DC or 24 V DC (24 V DC recommended)
Measurement type: AC current only

Functions

Integration of the Rogowski coil signal into a 0–10 V AC analog signal

DIN rail mounting – fast and neat installation in control panels

Compatibility with widely used PLCs and automation modules

Possibility to select the rated current according to project requirements

Stable operation across a wide frequency range

Applications

Home / advanced user:
Energy monitoring projects for homes or workshops, solution where a 0–10 V AC analog signal is required

Electrician:
Electrical distribution panels, clean DIN rail installation, measurement of high-power lines and busbars

Engineer / automation specialist:
Industrial automation and energy projects, PLC, SCADA, and BMS systems, stationary solutions where reliability and clear signal architecture are critical

Advantages

DIN rail mounting – professional solution for control panels

0–10 V AC output – widely used analog standard

Good measurement accuracy

Suitable for long-term stationary operation

Limitations

Single rated current (no switching)

Integrator and coil are not interchangeable once selected

Designed for AC current measurement only

No digital communication interfaces (RS485, etc.)
