Router | Wireless Access Point | Wi-Fi | 2.4GHz (300Mbps) | 5GHz (867Mbps) | HR12F IMOU

Technical Specifications:
Manufacturer: IMOU

Model: HR12F

Processor: High-performance network processor

Memory:

ROM: 8 MB
RAM: 64 MB

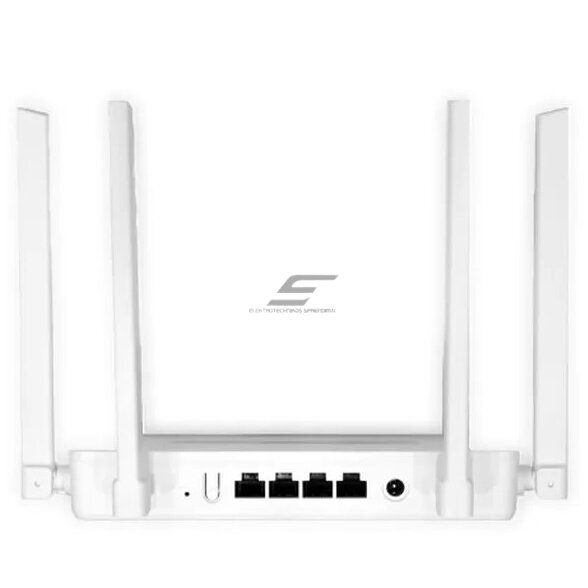

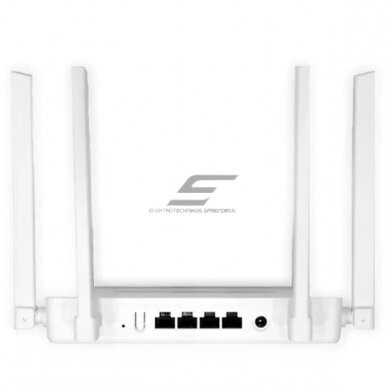

Network Ports:

1x 100 Mbps WAN
3x 100 Mbps LAN
Buttons:

1x WPS (for quick connection)
1x Reset (factory reset)
LED Indicator: Dual-color light (red and green)

WAN Connection Types: PPPoE / Dynamic IP / Static IP

IPv4/IPv6 Support: Yes

VPN Support: PP2P, L2TP

QoS (Network Optimization): Yes

Management:

Web browser configuration
Mobile application
DDNS Support: Yes

DMZ Support: Yes

Port Forwarding: Yes

UPnP Support: Yes

Wi-Fi Frequencies: 2.4 GHz and 5 GHz

Protocols:

2.4 GHz: IEEE 802.11b/g/n
5 GHz: IEEE 802.11a/n/ac
Maximum Wi-Fi Speed:

2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Wi-Fi Antennas: 4 external 5dBi high-gain antennas

Wireless Network Security:

WPA-PSK / WPA2-PSK encryption
Hidden SSID support
Additional Wireless Network Features: Wi-Fi scheduling

Power Supply: DC 12V 0.6A

Dimensions: 188 x 120 x 26 mm

Key Features:
High-speed dual-band Wi-Fi (AC1200) – up to 1200 Mbps
IMOU Wi-Fi Auto Sync – quick device synchronization
IPTV Support – smooth online TV streaming
Parental Control – restrict children's internet access
Guest Network – separate wireless access for guests
IMOU IPC Camera Integration – dedicated data transmission channel

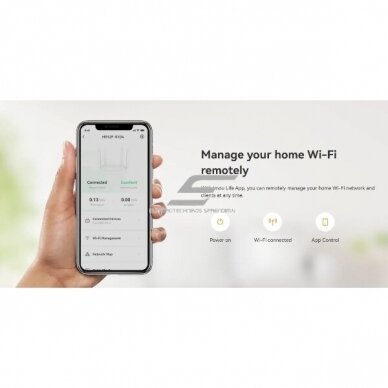

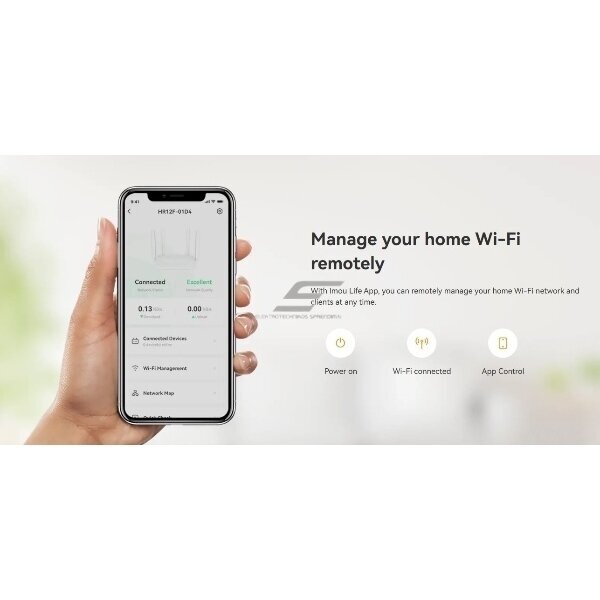

IMOU Life App – Wi-Fi network management from anywhere
Strong Signal Through Walls – improved coverage throughout the home
QoS Function – network load balancing for optimal performance
VPN Support – more secure internet connection
DDNS, DMZ, UPnP Support – advanced network management
Usage:
For Homes – Reliable and fast internet for the whole family
For Offices and Small Businesses – Stable connection, VPN, and guest network
For Multimedia and Gaming – Low latency and 4K streaming support
For Smart Homes – Sync with IMOU smart cameras
Pros:
High-speed Wi-Fi 6 technology (AC1200)
Strong signal with 4 external antennas
Easy management via IMOU Life mobile app
IPTV Support – smooth video streaming
Parental control and guest network feature
Automatic IMOU camera pairing
VPN support for safer browsing
Cons:
Only 100 Mbps LAN/WAN ports (no gigabit network support)
No USB port, making it impossible to connect external devices (e.g., printers, HDDs)
Not suitable for large businesses with high bandwidth requirements
IMOU AC1200 is an excellent choice for users looking for a fast, reliable, and easy-to-use Wi-Fi router. It comes with smart features such as parental control, guest network, VPN, and IPTV support, making it ideal for both home and office use. While the 100 Mbps network ports may be a limitation for some users, its dual-band wireless connection with 4 external antennas ensures strong and stable Wi-Fi even in larger homes.
