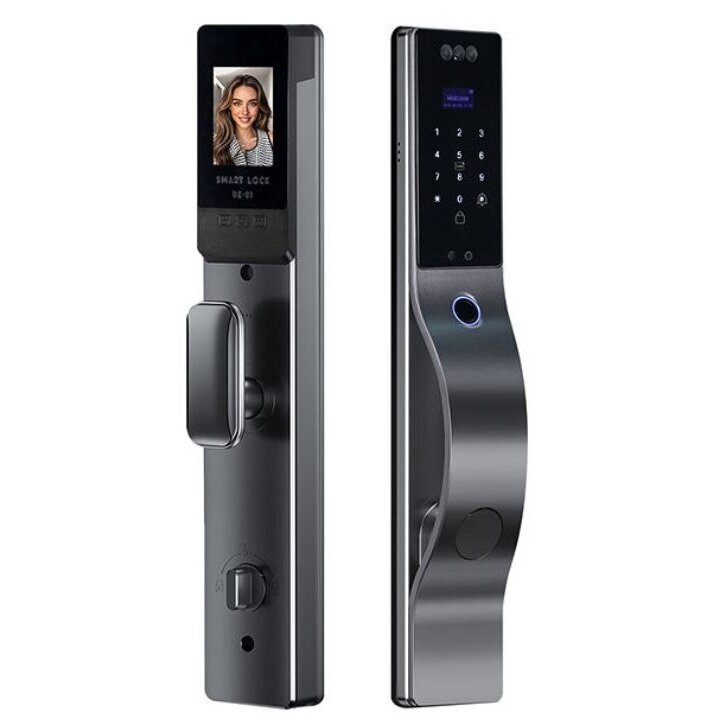

Smart door lock with facial recognition | fingerprint | IC card reader | 420x70x55mm | grey | TUYA | Wi-Fi

Technical Specifications

Material: aluminum alloy
Color: grey
Door thickness: 35–110 mm
Dimensions: 420x70x55mm; 430x74x30mm
Maximum number of users: up to 200

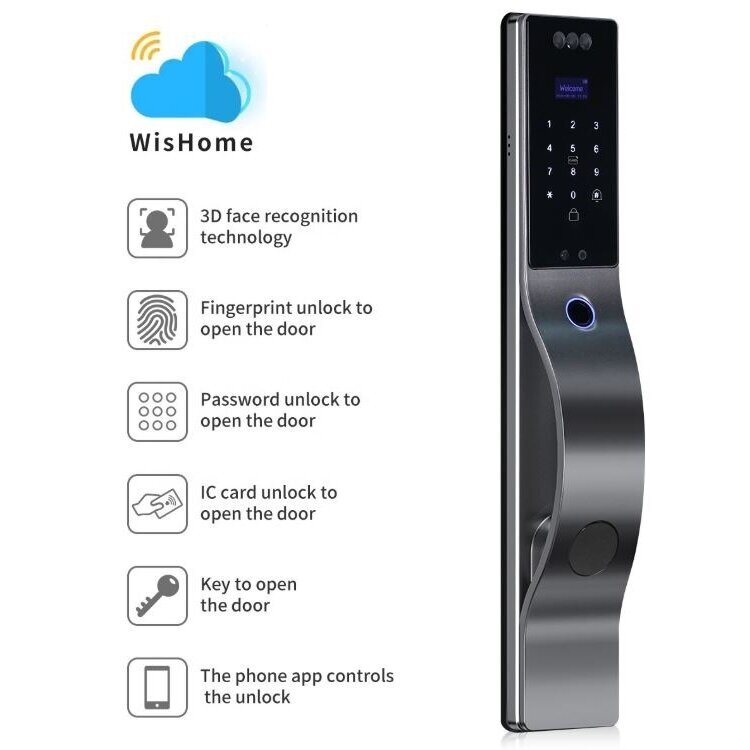

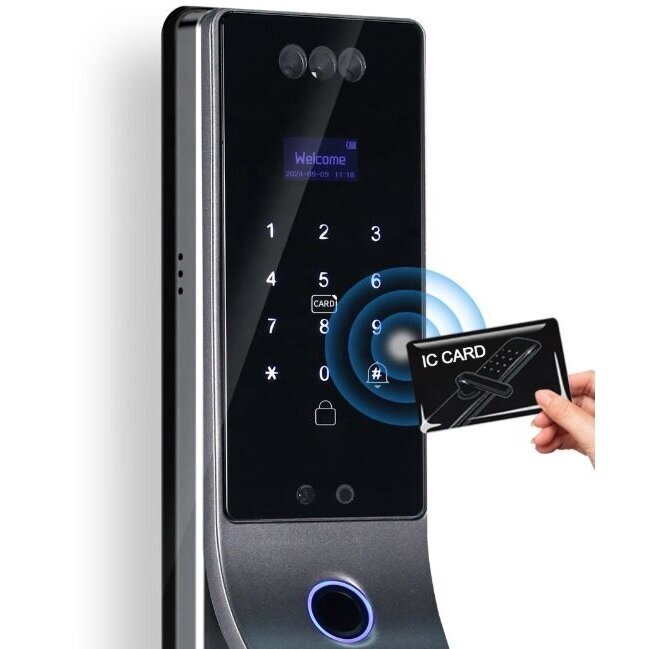

Unlocking methods: 3D face recognition + fingerprint + PIN code + IC card + mobile application (TUYA) + mechanical key
Camera: integrated HD wide-angle camera
Intercom: passive
Connection: WiFi (TUYA platform)
Supported operating systems: iOS 7.0 and newer; Android 4.4 and newer
Battery: 4200 mAh lithium battery
Battery life: approx. 12,000 unlocks (up to ~18 months)
Emergency power: Micro USB connector
Mortise type: 6068
Installation environment: wooden doors; metal doors; steel doors; aluminum doors
Door opening direction: adjustable (left / right)
Languages: English, Chinese
Water resistance: none (for indoor use or outdoor use under a canopy)

Functions

3D face recognition technology: An advanced biometric system allows the door to be unlocked in just 1 second.

6 unlocking methods: One device supports up to six unlocking methods, providing maximum flexibility for different users.

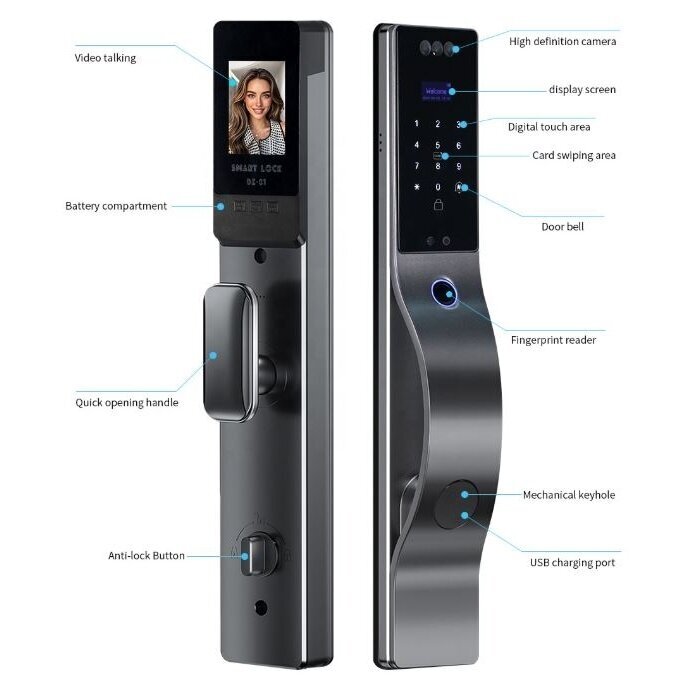

Integrated camera and real-time monitoring: The lock features a wide-angle camera that allows you to monitor what is happening at the door in real time via your phone.

Passive intercom: Two-way audio communication allows you to speak directly with visitors through the internal device without additional applications or internet connection.

Large screen with peephole function: You can conveniently see who is behind the door without opening it.

TUYA Smart application: Through the application you can:

control the lock remotely

view event history

add or remove users

receive security notifications

Automatic security monitoring: If suspicious movement or prolonged presence is detected near the door, the camera can automatically record the image.

Emergency power supply: If the battery is discharged, the lock can be temporarily powered via a Micro USB connector.

Usage

For homeowners: A solution for modern homes or apartments – doors can be unlocked using a phone, fingerprint, or face recognition without keys.

For rental properties (Airbnb / Booking): Easy guest access using temporary codes or a mobile application.

For offices and companies: Support for up to 200 users allows convenient employee access management.

For engineers and system integrators: Can be integrated into Smart Home systems via the TUYA platform.

For electricians: Easy installation into standard wooden or metal doors, adjustable opening direction.

Advantages

multiple unlocking methods in one device
3D face recognition technology
integrated camera
WiFi and TUYA Smart Home integration
up to 200 users
long battery life (up to 18 months)
remote control via smartphone
suitable for many door types

Disadvantages

not waterproof (not recommended for direct outdoor use)
WiFi connection required for full functionality
higher price than simple mechanical locks
