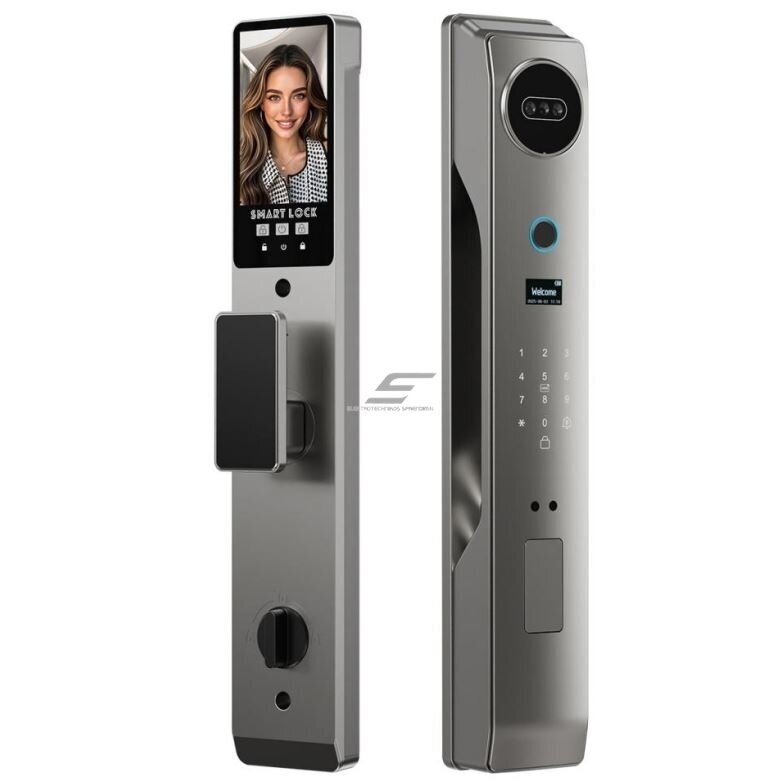

Smart door lock with facial recognition | fingerprint | IC card reader | 430x74x30mm | grey | TUYA | Wi-Fi

Technical Specifications

Material: aluminum alloy
Color: gray
Door thickness: 35–110 mm

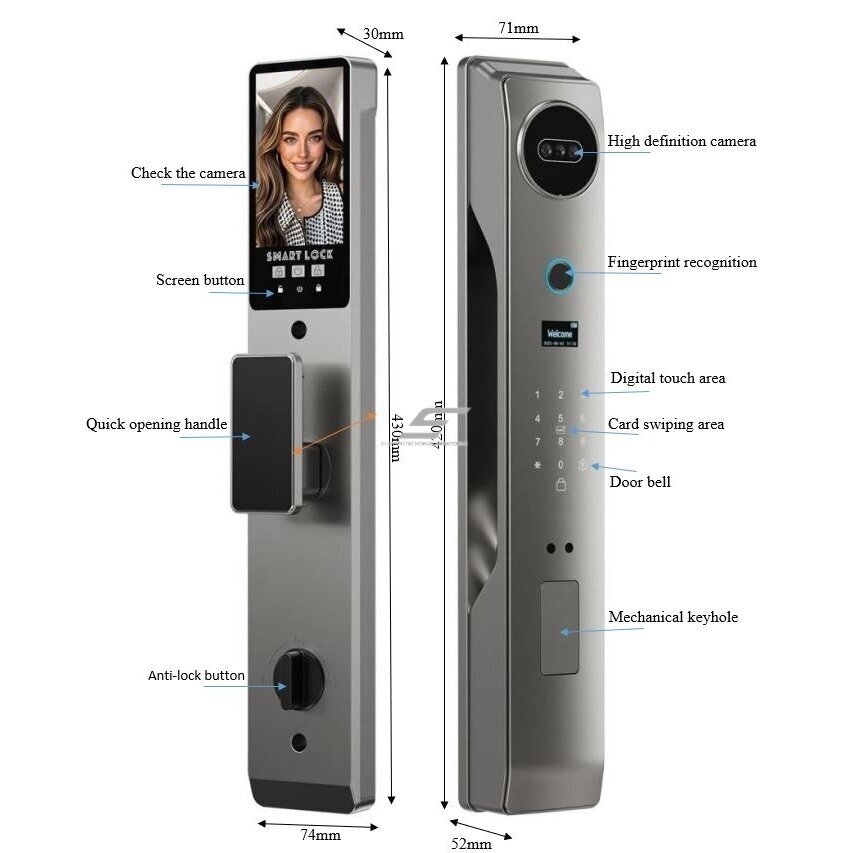

Dimensions: 430x74x30mm; 420x71x52mm
Maximum number of users: up to 200
Unlocking methods: 3D face recognition + fingerprint + PIN code + IC card + mobile app (TUYA) + mechanical key
Camera: integrated HD wide-angle camera
Intercom: active two-way audio communication
Connection: WiFi (TUYA platform)
Supported operating systems: iOS 7.0 and newer; Android 4.4 and newer
Battery: 3200 mAh lithium battery
Battery life: approx. 12,000 unlocks (up to ~18 months)
Emergency power: Micro USB port
Mortise type: 6068
Installation environment: wooden doors; metal doors; steel doors; aluminum doors
Door opening direction: adjustable (left / right)
Languages: English, Chinese, Spanish, Portuguese, Vietnamese, Arabic, Russian, Indonesian, Thai
Water resistance: none (intended for indoor use or outdoors under a roof)

Functions

3D Face Recognition Technology:
Advanced biometric system allows unlocking the door in just 1 second. Recognition height 1.2–2 m, convenient for both children and adults.

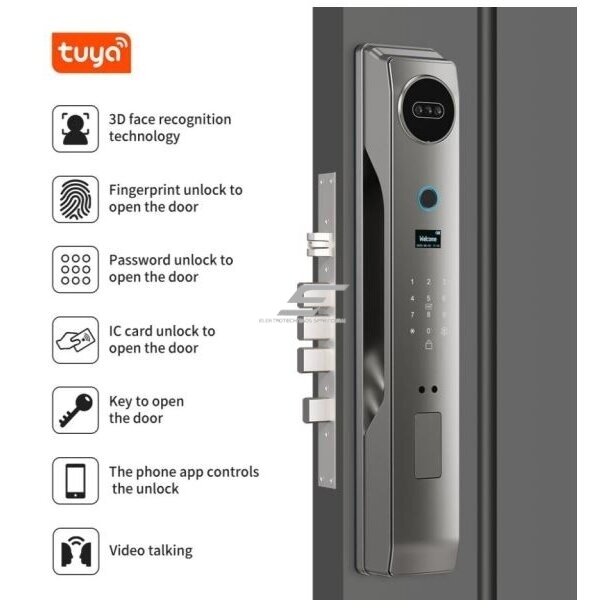

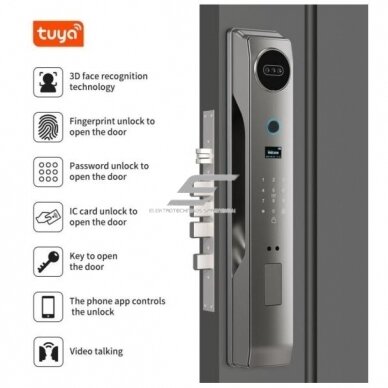

6 Unlocking Methods:
One device supports six unlocking methods, providing maximum flexibility for different users.

Integrated Camera and Real-Time Monitoring:
The lock has a wide-angle camera allowing you to see what is happening at the door in real time via your smartphone.

Active Intercom:
Two-way audio communication allows you to speak with visitors through the mobile app.

Large Display with Peephole Function:
You can conveniently see who is outside the door without opening it.

TUYA Smart Application:
Through the app you can:
– control the lock remotely
– view event history
– add or remove users
– receive security notifications

Automatic Security Monitoring:
If suspicious movement or prolonged presence is detected near the door, the camera can automatically record footage.

Emergency Power:
If the battery runs out, the lock can be temporarily powered via a Micro USB port.

Usage

For homeowners:
A solution for modern homes or apartments – unlock doors using a phone, fingerprint or face recognition without keys.

For rental properties (Airbnb / Booking):
Easy access for guests using temporary codes or a mobile app.

For offices and companies:
Support for up to 200 users allows convenient employee access management.

For engineers and system integrators:
Can be integrated into smart home systems via the TUYA platform.

For electricians/installers:
Easy installation in standard wooden or metal doors with adjustable opening direction.

Pros

multiple unlocking methods in one device

3D face recognition technology

integrated camera

WiFi and TUYA Smart Home integration

up to 200 users

long battery life (up to 18 months)

remote control via smartphone

suitable for many door types

Cons

not waterproof (not recommended for direct outdoor use)

WiFi required for full functionality

higher price than simple mechanical locks
