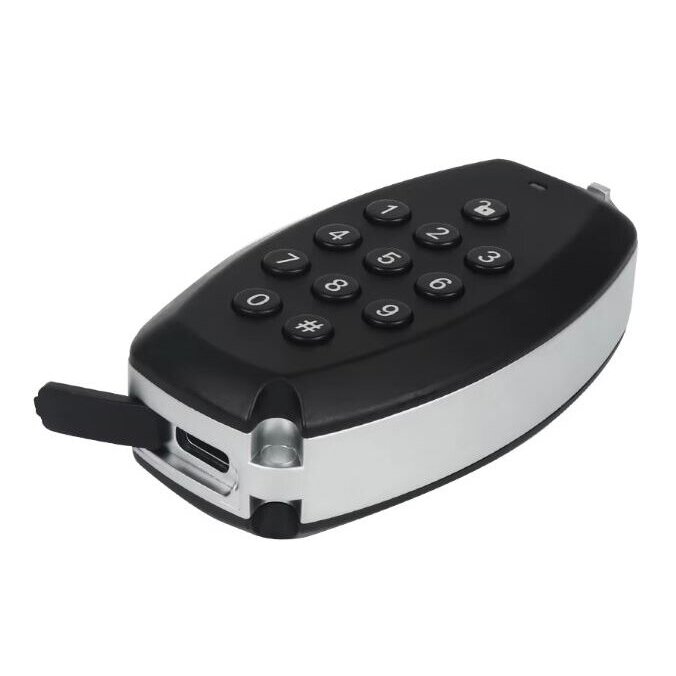

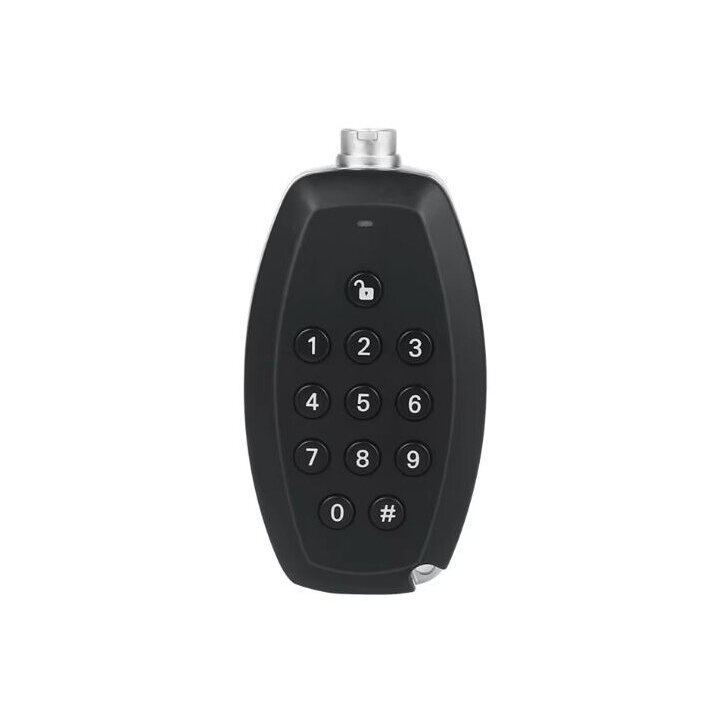

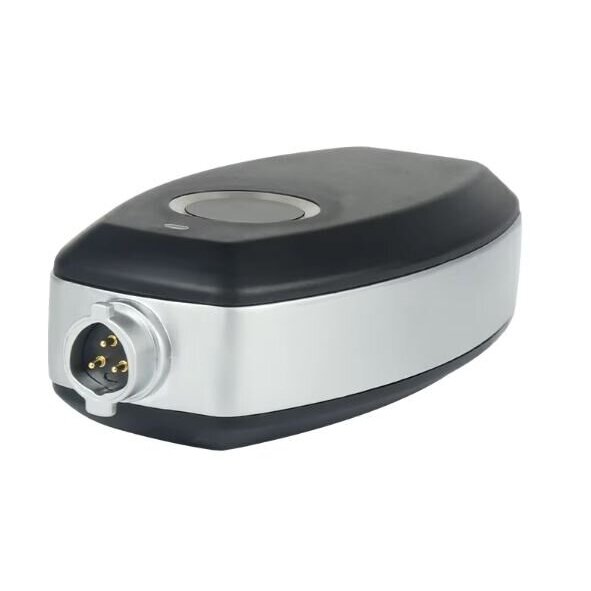

Smart electronic key for lock | fingerprint | PIN code | app unlocking

Electronic Key for Passive Locks | fingerprint | PIN | Bluetooth APP | up to 10,000 locks

Smart electronic key designed for unlocking passive electronic locks and managing access permissions. The key features a unique 64-bit ID identifier, fingerprint reader, numeric keypad, Bluetooth connectivity and a rechargeable 3.7 V 700 mAh lithium battery. One electronic key can manage up to 10,000 compatible locks.

One electronic key can replace a large number of traditional mechanical keys. Access permissions are configured according to administrative requirements – it is possible to define who can unlock a particular lock, when access is allowed and where it may be used. Unlocking can be authorised by fingerprint, PIN code or Bluetooth mobile application.

One electronic key can manage up to 10,000 compatible locks, eliminating the need to carry numerous separate mechanical keys. Access permissions are managed electronically.

Each electronic key has a globally unique 64-bit ID identifier. This identifier is used by the electronic access system to recognise and authorise the key.

• Access authorisation for specific locks.
• Access rights management.
• Temporary user authorisation.
• Bluetooth connection with a mobile application.
• Storage of operation records.

The electronic key can store up to 10,000 operation records. This allows key usage actions to be logged in the system and linked to specific access operations.

The key’s unlocking permissions are configured according to administrative requirements. It is possible to specify where and when a user is allowed to unlock particular electronic locks. This allows one physical key to have different access rights for different locations.

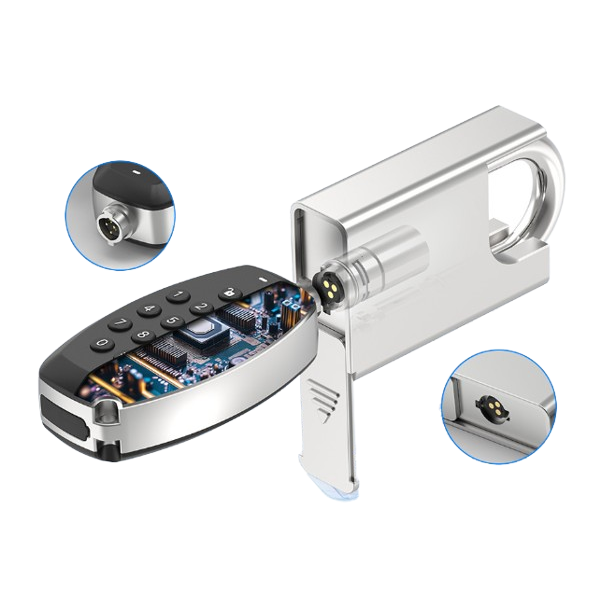

A passive electronic lock does not contain a battery. The electronic key is connected to the lock contact and supplies power to the lock during unlocking. If the key has valid authorisation, the lock mechanism is released.

• Powering passive electronic locks during unlocking.
• Managing up to 10,000 locks with one key.
• Unique 64-bit ID identifier.
• Fingerprint authorisation.
• PIN code authorisation.
• Bluetooth APP authorisation.
• Up to 50 fingerprint users.
• Up to 50 PIN users.
• Up to 10,000 operation records.
• 6–8 m Bluetooth operating range.
• Type-C charging.
• Rechargeable 700 mAh lithium battery.

• With passive electronic locks.
• In systems where many locks are controlled by one key.
• For warehouse access management.
• For access management at factory facilities.
• For access management to telecommunications cabinets.
• For access management at logistics facilities.
• In other centrally managed electronic lock systems.

The user confirms access using a fingerprint, PIN code or Bluetooth application. The electronic key is then applied to the contact of the passive lock. The key supplies power and authorisation information to the lock. If access permission has been granted for that specific lock, it can be unlocked.

• Use only with compatible passive electronic locks.
• Access permissions must be assigned to the key before use.
• Charge the key through the Type-C port.
• One key can have access to up to 10,000 locks.
• Up to 10,000 operation records can be stored in the key.
• Bluetooth connectivity operates within a range of 6–8 m.

Electronic Key for Passive Locks | fingerprint | PIN | Bluetooth | up to 10,000 locks

Smart electronic key with fingerprint reader, PIN keypad and Bluetooth connectivity. One key can manage up to 10,000 compatible passive electronic locks, register up to 50 fingerprints and 50 PIN users, and store up to 10,000 operation records. The integrated 3.7 V 700 mAh battery is rechargeable via a Type-C port.
