    Smart lock | add-on for an existing mechanical door lock | IC card reader | PIN code | app unlocking | 136x63x48mm | black

    Code: ES-PL-A2PRO
    Inquire about this item
    Price 248.99 € VAT incl.
    ( 205.78 € VAT excl. )
    Buy more, pay less
    10+ pcs.  – 225.06 € for pcs. -9%
    Want another price? Suggest yours!

    Smart door lock – an intelligent upgrade for an existing mechanical lock that does not require replacing the door or the lock mechanism itself. The door can be unlocked via a mobile app using Bluetooth 5.0, with a PIN code via the wireless keypad, an electronic key fob / card, or a mechanical key. The lock is powered by 4 AA batteries, with a battery life of up to 300 days, while remote control over the internet requires a separate Wi-Fi gateway.

  • Product description

    Smart Door Lock | Tuya APP | Bluetooth 5.0 | PIN | card / remote control | mechanical key

    Smart door lock designed to add electronic control to an existing mechanical lock without changing the door structure itself. The lock can be controlled using a smartphone application, PIN code via a wireless keypad, electronic remote control / card and the existing mechanical key. The lock is attached to the door using a removable 3M adhesive mounting system and can be adapted to various cylinder, mortise and deadbolt-type lock mechanisms.

    Main idea

    This is a smart add-on for an existing door lock that allows the existing mechanical lock to remain in place while adding electronic access control. The door can be controlled by smartphone, PIN code, electronic remote control / card or traditional mechanical key. A separate Wi-Fi gateway is required for remote control via the internet.

    Connection
    Bluetooth 5.0
    Access methods
    APP / PIN / remote control / key
    Power supply
    4 × AA batteries
    Battery life
    Up to 300 days

    Operating principle

    The lock is installed onto the existing mechanical door lock and electronically controls its locking and unlocking. The existing mechanical cylinder or mortise lock does not need to be replaced, provided that it is compatible with the mounting insert being used.

    For everyday use, the door can be unlocked through the application via Bluetooth. A wireless numeric keypad, electronic remote control / card or conventional mechanical key can also be used.

    Keeps the existing lock

    The smart lock is designed to be installed on the existing door lock. Upgrading to smart control does not require modification of the current mechanical lock or changes to the door structure.

    4 access methods

    Smartphone application
    The door lock can be unlocked and locked by smartphone via Bluetooth.
    PIN code
    Using a compatible wireless keypad, the door can be unlocked by entering a configured code.
    Electronic remote control / card
    The door can be controlled with an electronic remote without using a smartphone.
    Mechanical key
    The existing mechanical key function remains available, so the door can also be unlocked with a conventional key.

    Smartphone control

    • Unlock and lock the door through the application.
    • User management.
    • Access permission configuration.
    • Device sharing function.
    • View unlocking and entry history.
    • See who unlocked the door and when.
    • Remote internet control using a separate Wi-Fi gateway.

    Difference between Bluetooth and Wi-Fi control

    Bluetooth 5.0
    The lock has integrated Bluetooth 5.0 connectivity and can be controlled by smartphone via Bluetooth.
    Remote Wi-Fi control
    A separate Wi-Fi gateway / bridge is required to control the lock remotely over the internet.

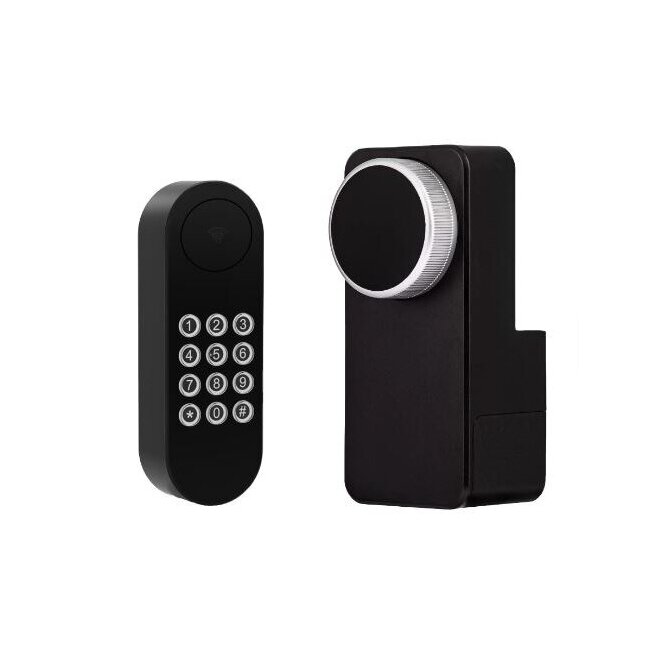

    Wireless PIN keypad

    A wireless numeric keypad can be connected to the system, allowing the door to be unlocked without a smartphone.

    • Permanent PIN codes.
    • Temporary PIN codes.
    • One-time code.
    • One-hour code.
    • One keypad can be used with multiple locks.

    Electronic remote control

    The electronic remote control allows the lock to be operated without using a smartphone. One compact remote control can be used to operate several locks.

    Access rights management

    The application allows you to define who has access to the lock and how they are allowed to use it. The device can also be shared with other users and recorded unlocking events can be reviewed.

    Technical specifications

    Product type Smart door lock
    Connection Bluetooth 5.0
    APP unlocking / locking Supported
    PIN unlocking / locking Supported with keypad
    Mechanical unlocking / locking Supported
    Device sharing Supported
    Access rights management Supported
    Wi-Fi connection Supported via separate gateway
    Amazon Alexa Supported at additional cost
    Google Assistant Supported at additional cost
    Low battery warning Supported
    Power supply 4 × AA batteries
    Battery life Up to 300 days
    Operating temperature −10 °C to +55 °C
    Housing material PC and steel
    Colour Black
    Dimensions 136 × 63 × 48 mm (±1 mm)
    Weight 216 g (±5 g)

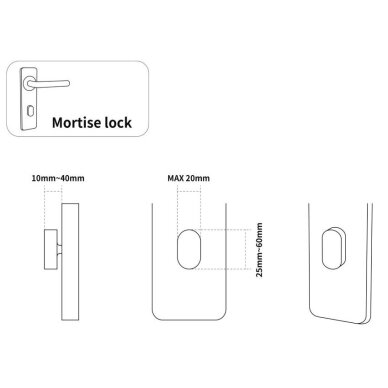

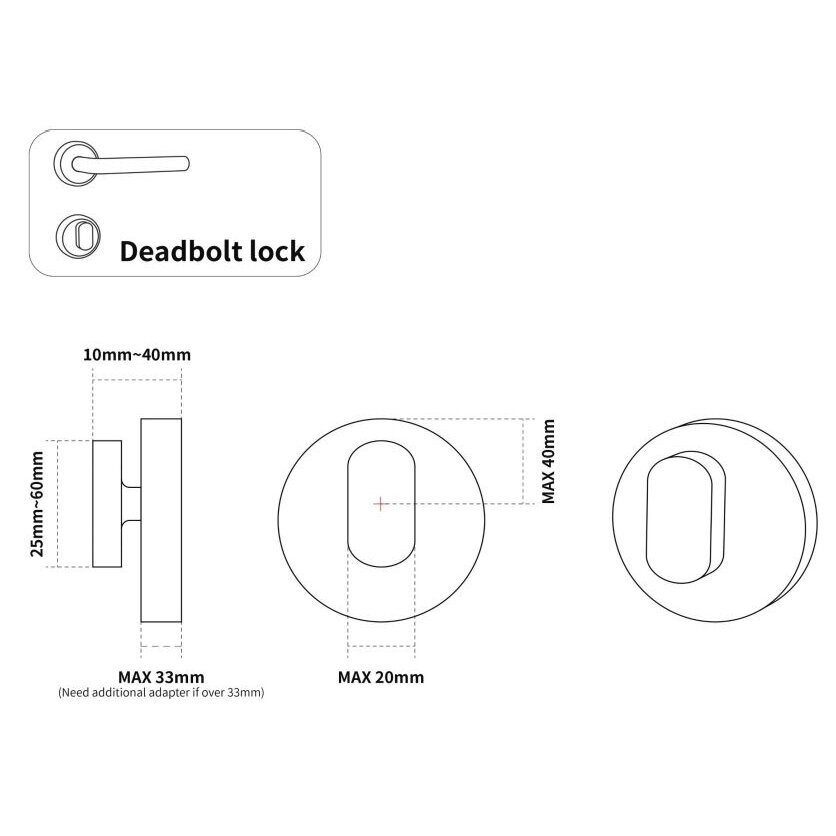

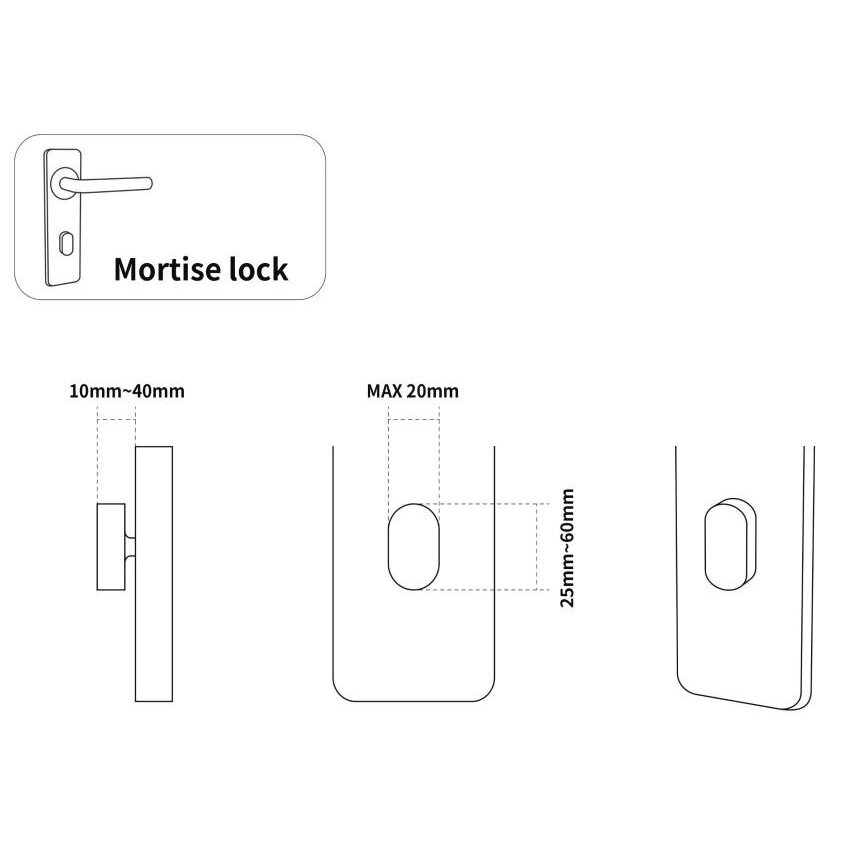

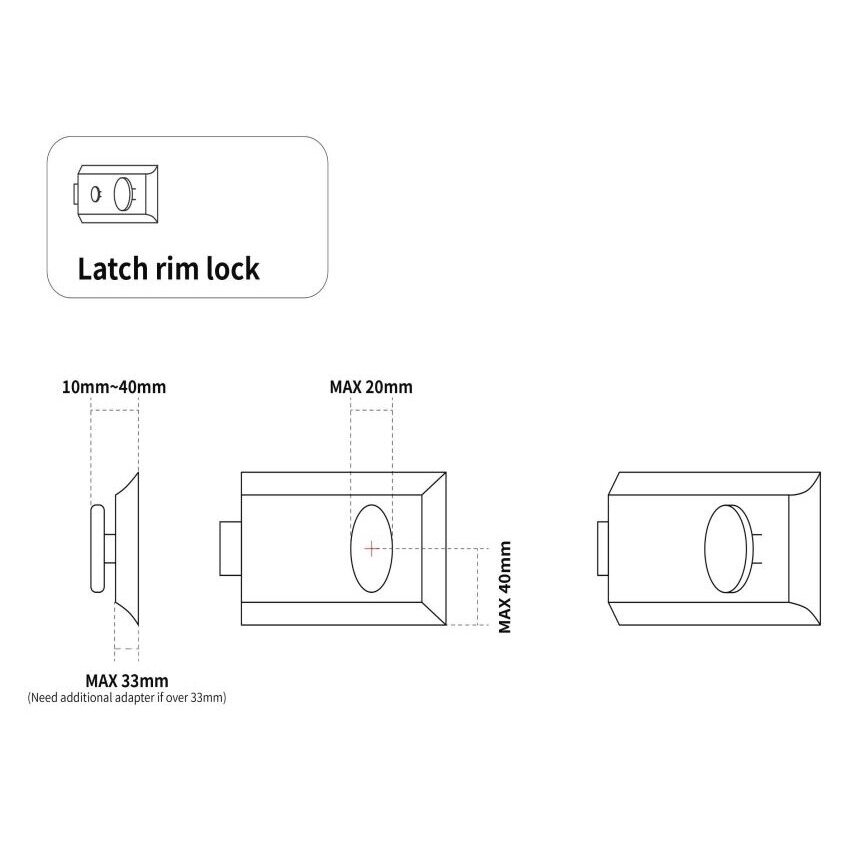

    Compatibility

    • Cylinder locks.
    • Mortise locks.
    • Deadbolt-type locks.
    • Many American-style locks.
    • Many European-style locks.
    • Fission-type lock constructions.
    • Conjoined-type lock constructions.

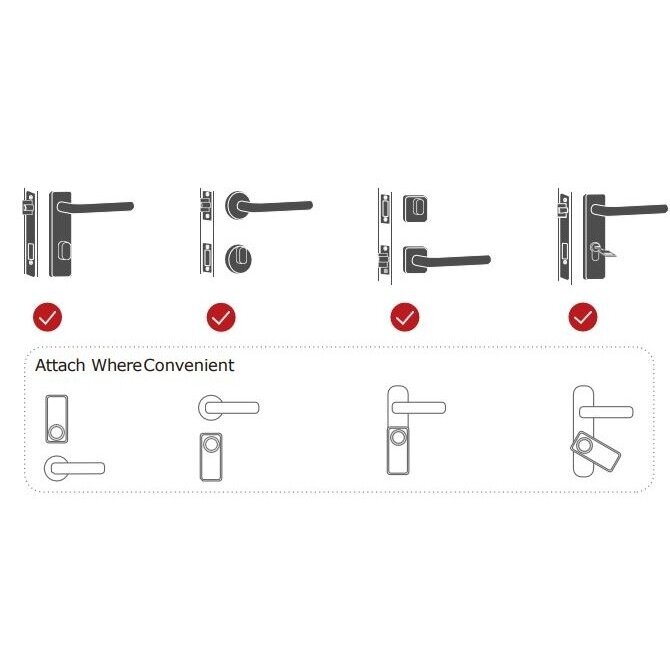

    Interchangeable mounting inserts allow the smart lock mechanism to be adapted to different existing door lock constructions.

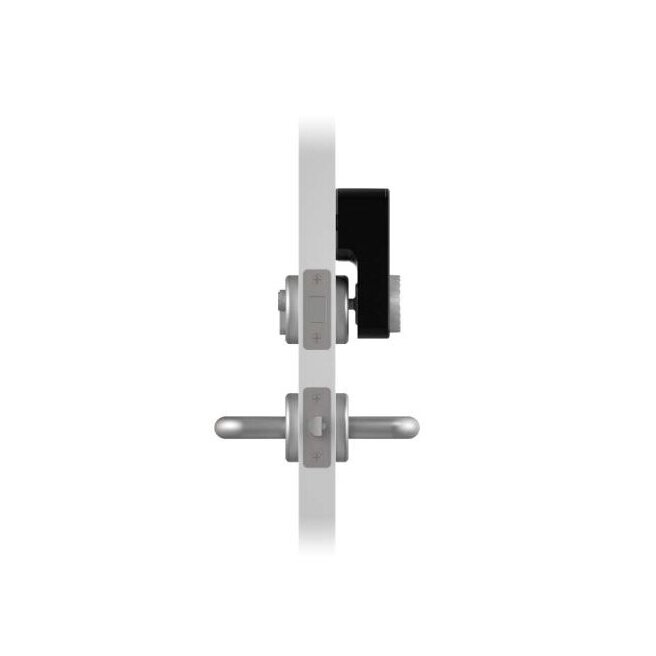

    Installation without replacing the existing lock

    The lock is attached to the existing locking mechanism without permanently modifying the door structure. A durable but removable 3M adhesive system is used for mounting. The existing door lock does not need to be modified.

    Battery life

    The lock is powered by four AA batteries. Battery life can exceed 300 days when the lock is operated approximately 10 times per day.

    Unlocking history

    The application allows you to review lock usage records and see which user unlocked the door and when.

    Main functions

    • Bluetooth 5.0 control.
    • Unlocking and locking through the application.
    • PIN unlocking with wireless keypad.
    • Electronic remote control operation.
    • Mechanical key operation.
    • Temporary PIN codes.
    • One-time PIN codes.
    • One-hour PIN codes.
    • User management.
    • Access rights management.
    • Device sharing function.
    • Unlocking history.
    • Remote control via separate Wi-Fi gateway.
    • Low battery warning.
    • Up to 300 days of battery life.

    Where is it used?

    • Wooden doors.
    • Doors with cylinder locks.
    • Doors with mortise locks.
    • Doors with deadbolt-type locks.
    • American-style door locks.
    • European-style door locks.
    • Doors where smart control is required without replacing the existing lock.

    Use by application

    For everyday use
    The door can be unlocked by smartphone via Bluetooth or with a conventional mechanical key.
    For guests and temporary access
    The wireless keypad supports permanent, one-time and temporary PIN codes.
    For remote control
    By connecting a separate Wi-Fi gateway, the lock can be controlled remotely over the internet.

    Practical use

    Once the smart module has been installed on the existing mechanical lock, a smartphone can be used for everyday unlocking. If a smartphone is not preferred, the door can be unlocked using a PIN code through the wireless keypad, an electronic remote control or a conventional mechanical key. The application allows user access permissions to be managed and unlocking history to be reviewed.

    Advantages

    • No need to replace the existing mechanical lock.
    • Bluetooth 5.0 smartphone control.
    • PIN code support with wireless keypad.
    • Electronic remote control operation.
    • Mechanical key functionality remains available.
    • Temporary and one-time PIN codes.
    • Access rights management.
    • Unlocking history.
    • Remote control option via gateway.
    • Up to 300 days of battery life.
    • Wide compatibility with different lock mechanisms.

    Limitations

    • A separate Wi-Fi gateway is required for remote internet control.
    • A wireless keypad is required for PIN unlocking.
    • The lock requires 4 AA batteries.
    • Operating temperature – from −10 °C to +55 °C.
    • Compatibility with the existing lock mechanism must be checked before installation.
    • Amazon Alexa and Google Assistant support is specified as available at additional cost.

    Usage and installation notes

    • Check compatibility with the existing lock mechanism before installation.
    • Use the appropriate interchangeable mounting insert for the specific lock.
    • A removable 3M adhesive system is used for mounting.
    • The lock is powered by 4 AA batteries.
    • Monitor the low battery warning.
    • A separate Wi-Fi gateway / bridge is required for remote internet control.
    • The wireless PIN keypad and electronic remote control are used as additional access methods.

    Quick selection guide

    Bluetooth 5.0 | APP | PIN | electronic remote control | mechanical key | 4×AA | up to 300 days
    Suitable when you need: to add smart control to an existing mechanical door lock without replacing the door itself or the current lock mechanism.
    Check before purchasing: the type of the existing lock, compatibility with the appropriate mounting insert, and whether an additional PIN keypad, electronic remote control or Wi-Fi gateway is required.
    Important reminder: the integrated connection is Bluetooth 5.0. A separate Wi-Fi gateway / bridge is required for remote control over the internet.

    FAQ

    1. Does the existing mechanical door lock need to be replaced?
    No. The lock is designed to be installed onto an existing compatible mechanical lock without replacing it.
    2. How can the door be unlocked?
    Using the application, PIN code via the wireless keypad, electronic remote control / card or mechanical key.
    3. Can the lock be controlled by smartphone?
    Yes. Integrated Bluetooth 5.0 allows the lock to be controlled through a smartphone application.
    4. Can the lock be controlled remotely over the internet?
    Yes, but a separate Wi-Fi gateway / bridge is required.
    5. Can a temporary PIN code be used?
    Yes. The wireless keypad supports permanent and temporary codes, including one-time and one-hour codes.
    6. Can one keypad control several locks?
    Yes. The wireless keypad can be connected to several locks.
    7. Does the electronic remote control work without a smartphone?
    Yes. The electronic remote control can be used to operate the lock without a smartphone, and one remote can control several locks.
    8. How long do the batteries last?
    With 4 AA batteries, operating time can exceed 300 days when the lock is used approximately 10 times per day.
    9. Can the unlocking history be viewed?
    Yes. The application allows you to view records showing who unlocked the door and when.
    10. Which lock types are compatible?
    Cylinder, mortise and deadbolt-type locks are supported. Interchangeable mounting inserts allow the system to be adapted to various American- and European-style locks.
    11. Is drilling required during installation?
    The lock is attached using a removable 3M adhesive system, so the existing door lock does not need to be modified.

    Smart Door Lock | Bluetooth 5.0 | APP | PIN | 4×AA

    Smart door lock module designed to add electronic control to an existing mechanical locking mechanism. Supports Bluetooth 5.0 application control, PIN codes via a wireless keypad, electronic remote control and mechanical key. Powered by 4 AA batteries with a battery life that can exceed 300 days. A separate Wi-Fi gateway is used for remote internet control.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
