  •   Smart programmable room | floor heating thermostat 110-230VAC | IP40 | black | LoraWan | Modbus RS485
      Smart programmable room | floor heating thermostat 110-230VAC | IP40 | black | LoraWan | Modbus RS485 1

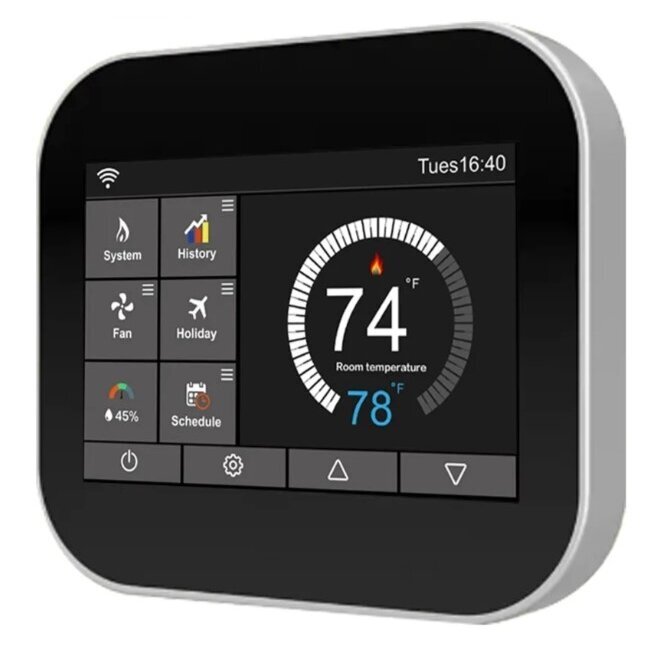

    Smart programmable room | floor heating thermostat 110-230VAC | IP40 | black | LoraWan | Modbus RS485

    Code: ES-MC6B
    Inquire about this item
    Price 85.31 € VAT incl.
    ( 70.50 € VAT excl. )
    Want another price? Suggest yours!

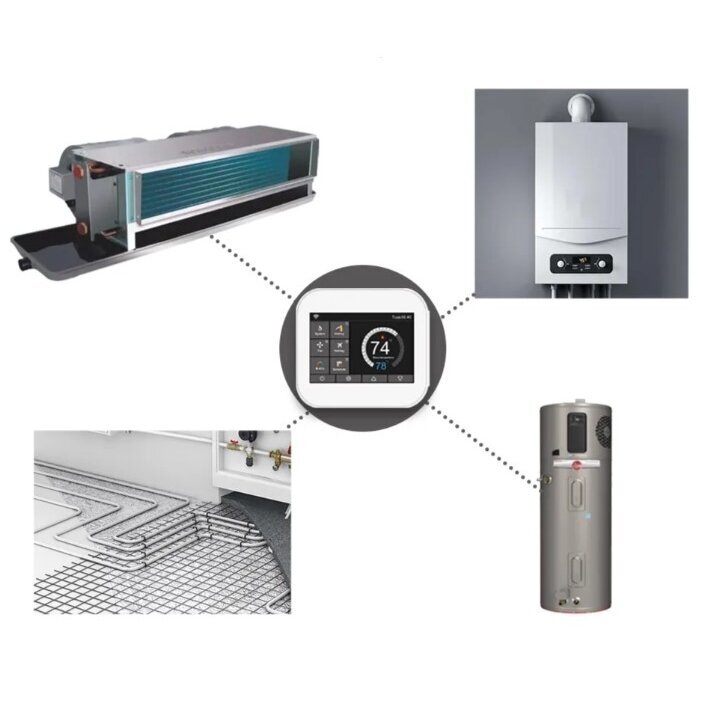

    Smart thermostat designed for heating and cooling system control and monitoring. With modern LoRaWAN technology, this device is perfect for various buildings and spaces, such as villas, hotels, offices, hospitals, schools, gyms, shopping centers, homes, and more. It features a 3.5-inch touch screen and a wide temperature regulation range (5-35°C). The thermostat also supports various functions, including humidity and ambient light sensors, automatic time and date synchronization, and integration with the Modbus protocol. It is an ideal choice for ensuring efficient and comfortable climate control in both residential and commercial spaces.

  • Product description

    Technical Specifications:

    Warranty: 3 years
    Function: Heating and cooling system control and monitoring
    Power Supply: 110-230 VAC, 50/60 Hz
    Display: Touchscreen, 3.5-inch TFT color display
    Material: ABS
    Temperature Range: 5-35°C
    Temperature Accuracy: Adjustable
    Maximum Switch Current: 3A / 16A (optional)
    LCD Display: 3.5 inches
    Protection Rating: IP40
    Sensors: Ambient light and humidity sensors
    LoRaWAN Frequency: 868/915 MHz
    Functions:

    Boost output
    3-speed or 0-10V fan control
    On/off relay or 0-10V valve control
    2/4 pipe HVAC system
    Manual or automatic switching
    7-day, weekday/weekend, 24-hour schedule
    Automatic time and date synchronization
    Automatic daylight saving time adjustment
    Frost protection
    Modbus RS485, Modbus TCP (optional)
    Holiday mode
    9 languages
    Temperature display C/F
    Screen lock
    Usage:

    This smart thermostat is designed for controlling heating and cooling systems in both residential and commercial spaces. It supports various temperature regulation options and offers convenient control via a touchscreen. The ability to set schedules, switch modes, and maintain optimal indoor temperature ensures comfort and efficiency. It is an excellent choice for energy-efficient and comfortable climate control.

    Pros:

    Wide application range: Suitable for various buildings and spaces, ensuring versatility.
    Smart features: Automatic time and date synchronization, daylight saving time adjustment, Modbus integration, holiday mode.
    Ambient light and humidity sensors: Provide additional functionality and accuracy.
    High energy efficiency: Low power consumption.
    Wide temperature range: From 5°C to 35°C.
    Languages: 9 languages, adaptable for different users.
    Cons:

    Dependence on LoRaWAN technology: Requires LoRaWAN infrastructure, so not recommended in areas without LoRaWAN network.
    Installation complexity: May require technical knowledge for system connection and configuration.
    Expensive: Due to the smart features and technology, the price may be higher than standard thermostats.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
