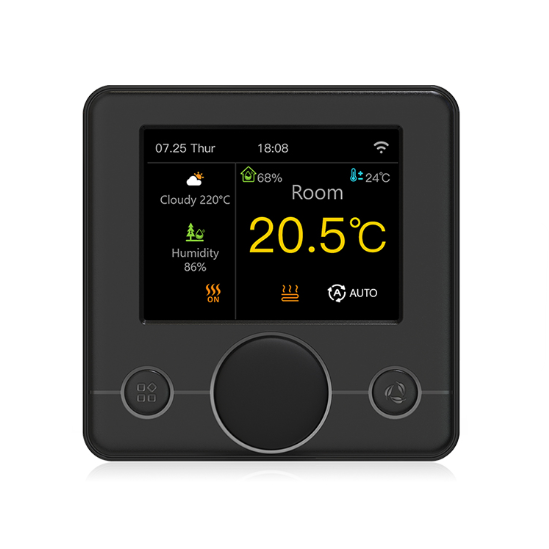

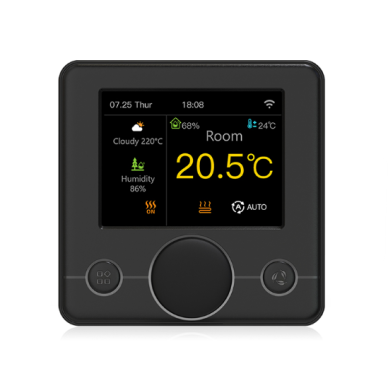

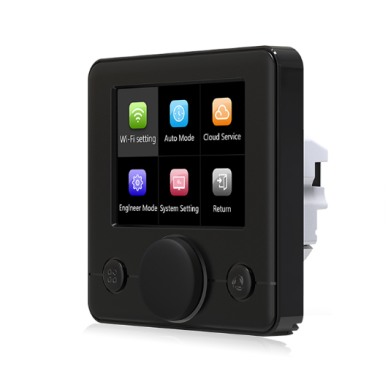

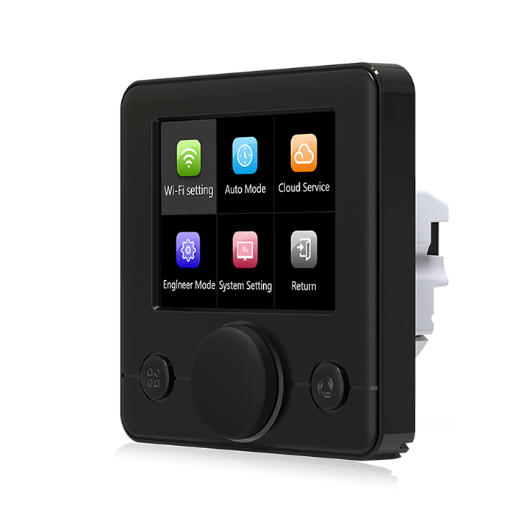

Smart underfloor heating thermostat with WiFi | 16A | IPS color display | weather forecast | AC100–230V | IP20 | black

Technical Specifications

Type: smart underfloor heating thermostat
Power supply: AC 100–230V, 50/60Hz
Maximum load: 16A
Power consumption: ≤1.8W
Temperature setting range: +5°C ~ +90°C
Adjustable range: 35°C ~ 90°C
External sensor limits: +5°C ~ +60°C
Temperature accuracy: ±0.5–10°C (standard ±1°C)
Ambient temperature: -5°C ~ +50°C
Protection class: IP20
Housing: non-flammable
Display: IPS, color

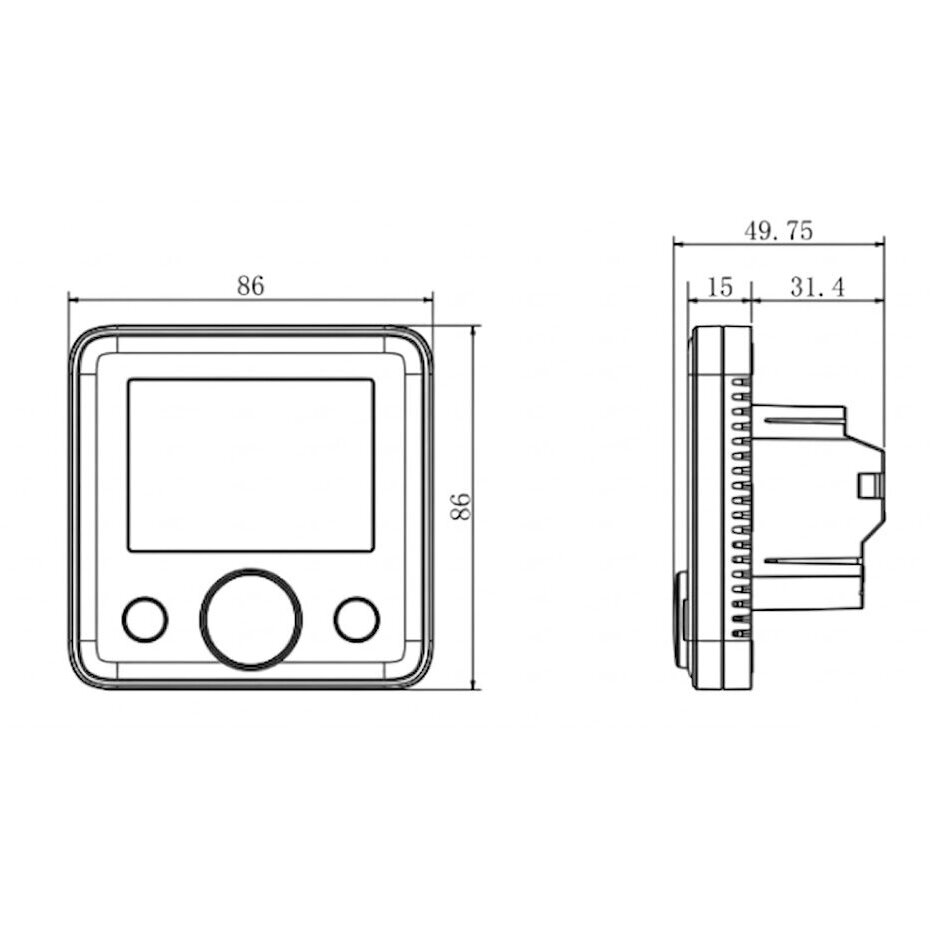

Front panel dimensions: 86 x 86 mm
Installation depth: 49.75 mm
Certificate: CE
Warranty: 24 months

Functions

WiFi control – allows remote temperature adjustment via mobile app from anywhere
Real-time weather forecast – current weather information displayed on screen for easier planning
IPS color display – clear, bright, and easily readable from all angles
Programmable heating mode – allows setting automatic daily and weekly temperature schedules
Precise temperature control – maintains a stable set temperature level
Floor protection function – limits maximum floor temperature
High load control (16A) – suitable for more powerful underfloor heating systems
Energy-saving function – optimizes heating operation to reduce electricity consumption
Safe non-flammable housing – made from anti-flammable material for safe use
Standard installation – suitable for 86x86 mm mounting boxes

Usage

For residential users (homes, apartments): Suitable for convenient underfloor heating control, temperature adjustment by time of day, and energy saving using automatic schedules
For landlords / property owners: Suitable for heating control in apartments or rental units to optimize electricity consumption and ensure tenant comfort
For commercial property owners: Used for temperature control and comfort maintenance in offices, hotels, salons, and other premises
For energy solution specialists: Used for heating system optimization to reduce energy consumption and improve efficiency

Advantages

WiFi control – remote temperature adjustment
IPS color display with weather forecast
Optimizes heating operation and reduces electricity consumption
Standard installation (86x86 mm) – easy integration into standard mounting boxes
Safe non-flammable housing – ensures reliable and safe use

Disadvantages

IP20 protection – not suitable for installation in влажных environments
Full functionality requires internet connection

FAQ

Is this thermostat suitable for all underfloor heating systems?
Yes, the thermostat is suitable for most electric underfloor heating systems up to 16A load.

Can the thermostat be controlled via phone?
Yes, the device supports WiFi and can be controlled via a mobile application.

Is the thermostat suitable for a standard mounting box?
Yes, it is designed for the 86x86 mm standard and fits most installations.

Can the floor be protected from overheating?
Yes, you can set a maximum floor temperature using the limiting function.
