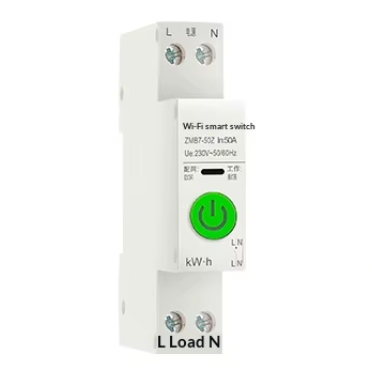

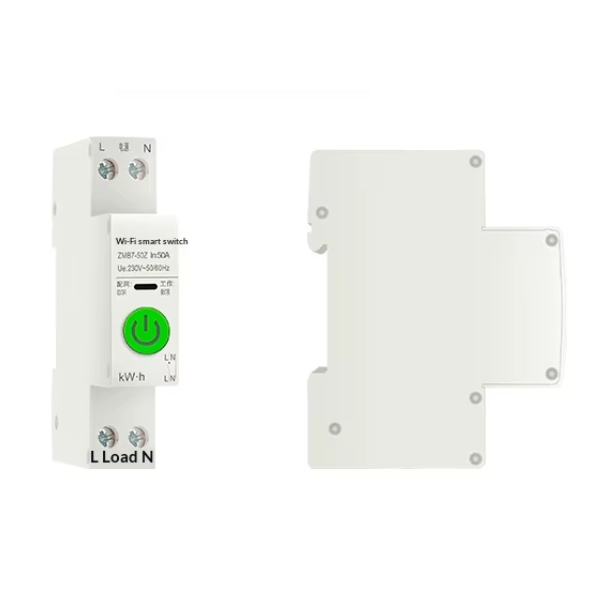

Smart WiFi automatic circuit breaker with energy metering | 1P | 50A | Tuya Smart APP | DIN rail mounting

Technical Specifications

Type: Smart WiFi circuit breaker with energy metering
Number of poles: 1P
Rated current: up to 50A
Operating voltage: AC 230V / 50Hz
WiFi connection: 2.4 GHz
Control: Tuya Smart APP / Smart Life APP / Smart speaker (Google Assistant / Alexa – depending on system)
Energy metering: yes (kWh statistics)
Mounting: DIN rail
Protection class: IP20
Material: flame-retardant PC plastic, phosphor bronze contacts
Functions: remote ON/OFF; timer; cyclic operation; delay function; energy monitoring
Maximum load: up to ~11 kW (depending on system)
Usage: indoor

Functions

WiFi remote control – control electrical circuits from anywhere via mobile app
Energy metering (kWh) – monitor electricity consumption in real time and optimize costs
Single-pole control (1P) – controls the phase conductor (L), simple and efficient solution
Timer function – set automatic ON/OFF according to schedule
Cyclic operation – automate device operation at recurring intervals
Delay function – allows setting delayed ON or OFF
Smart Home integration – compatible with Tuya ecosystem and smart home systems
DIN rail mounting – easily integrated into standard electrical panels
Quiet and stable operation – suitable for continuous use

Usage

For home users: Suitable for lighting control, socket line control, boiler or small household appliance control, and monitoring electricity consumption at home

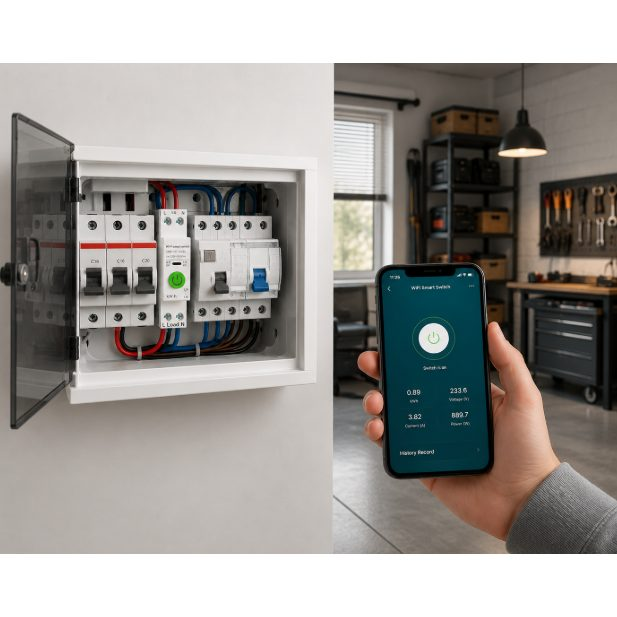

For electricians: Used for installing smart electrical panels, remote-controlled circuits, implementing energy metering solutions, and integrating automated systems
For engineers / automation specialists: Suitable for IoT solutions, Smart Home projects, remote energy monitoring, and automated electrical control systems

Advantages

Remote control via WiFi
Energy consumption monitoring (kWh)
Easy DIN rail installation
Suitable for Smart Home systems
Timer and automation functions
Compact solution for electrical panels
Efficient energy management

Disadvantages

No leakage protection (RCD)
IP20 protection class – suitable for indoor use only
Requires stable WiFi connection

FAQ

Does this device have leakage protection (RCD)?
No, this model does not have RCD functionality – it is an energy metering and control device.

Can the device be controlled via phone?
Yes, via Tuya Smart or Smart Life app you can control the device remotely.

Is it suitable for installation in a standard electrical panel?
Yes, it is mounted on a DIN rail, so it fits most electrical panels.

Can the device operation be automated?
Yes, timers, cycles, and scenarios can be set via the mobile app.
