Socket box | for furniture installation | 10+2 modules (22.5mm) | TEM

Technical specifications

Module size: 45 mm

Number of modules: 10 + 2 (22.5 mm wide modules)

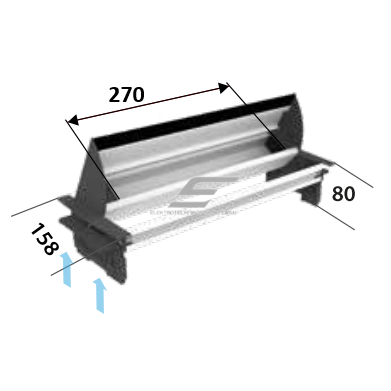

Cut-out (mounting) dimensions: 340 × 135 mm

Usable internal channel space: 270 mm

Total length: 370 mm

Material: Durable construction with cover and integrated brush dust protection

Mounting: Adjustable fixing bracket, suitable for installation into a desk or furniture

Design: Suitable for 45 mm modular sockets

Functions

Universal application: compatible with various modules (power, USB, data, audio/video).

Space saving: integrated into furniture, avoiding extra extension cords.

Dust protection: cover with brush prevents dust accumulation; sockets can be used even when the cover is closed.

Easy installation: adjustable brackets allow quick integration into a desk.

Closing option: cover ensures an aesthetic appearance even when sockets are not in use.

Flexible module selection: electrical, network, multimedia connections.

Usage

For home users: ideal for a work desk, multimedia room, or kitchen island – all connections at hand, neatly hidden.

For engineers: allows adaptable installations where flexibility, universality, and aesthetics matter.

For electricians: quick installation in furniture, convenient modular connection setup, easy to change or expand configuration.

For commercial spaces: conference rooms, offices, libraries – convenient connection of multiple devices in one place.

Pros

Modern and neat design

Customizable connections

Compact

Easy to install and adjust

Brush cover protects against dust and keeps it aesthetic

Cons

Requires a cut-out in furniture (cannot be installed everywhere)

Not mobile – difficult to move once installed

Additional modules (USB, network, HDMI, etc.) must be purchased separately
